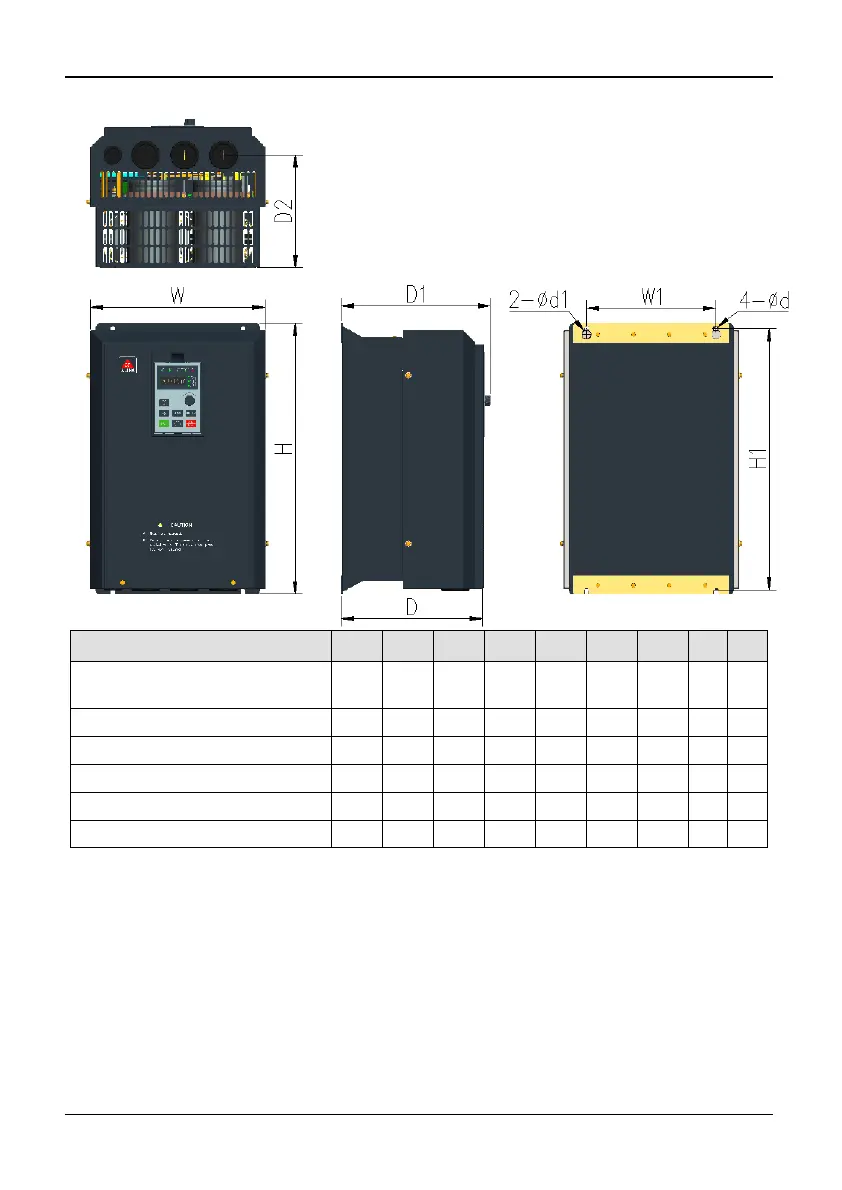

Appendix 1 Exterior size and mounting size (Unit:mm)
187
3011GB/3015PB~3132G/3160P:
Inverter Model H H1 W W1 D D1 D2 d d1
3011GB/3015PB,
3015GB/3018PB
373 360 235 180 176 188 125 7 12
3018G/3022P, 3022G/3030P 420 405 270 200 218 230 175 7 14
3030G/3037P, 3037G/3045P 503 488 311 200 230 242 185 8 14
3045G/3055P, 3055G/3075P 590 570 351 200 254 266 208 10 18
3075G/3093P, 3093G/3110P 698 672 400 280 260 272 213 12 22
3110G/3132P, 3132G/3160P 850 823 505 420 280 292 199 12 22
