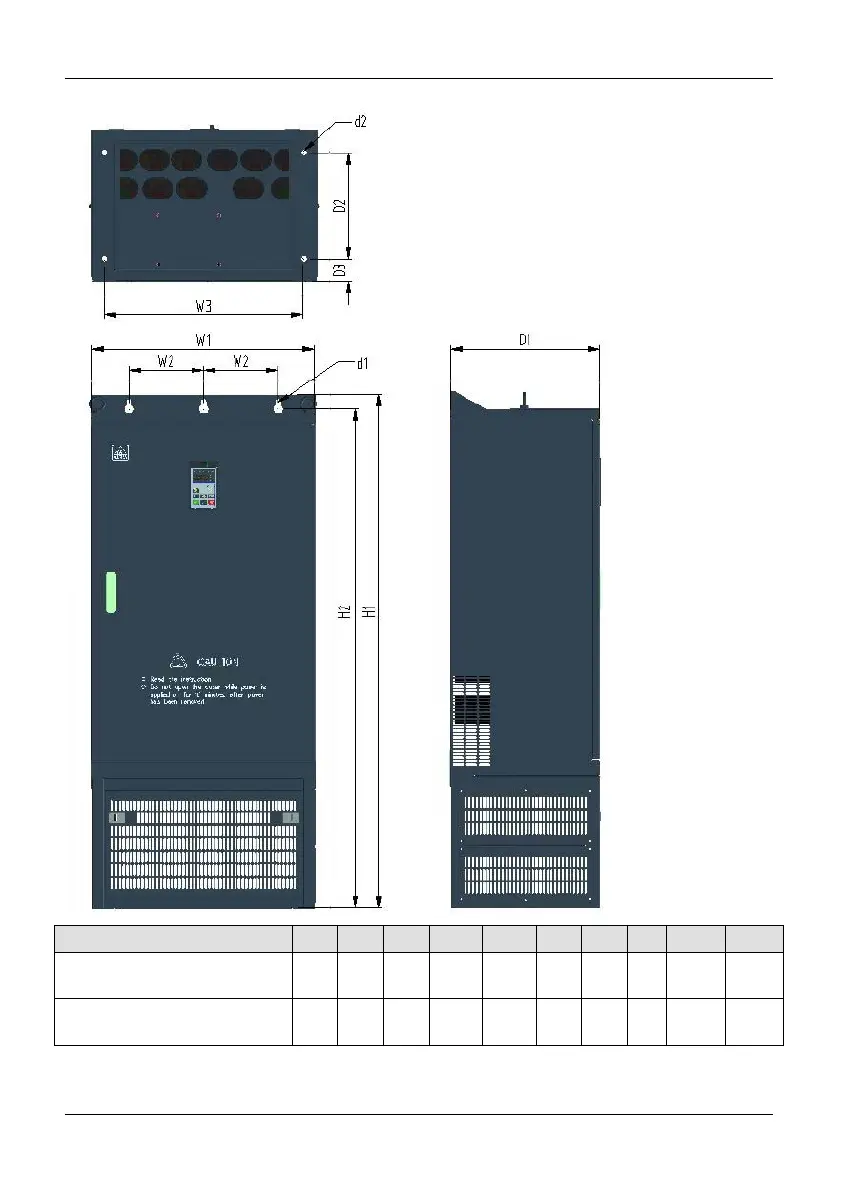

Appendix 1 Exterior size and mounting size (Unit:mm)
188
3160G/3185P-X~3355G/3400P-X:
Inverter Model
W1 W2 W3 H1 H2 D1 D2 D3
d1 d2
3160G/3185P-X, 3185G/3200P-X,
3200G/3220P-X, 3220G/3250P-X
600 200 530 1380 1360 400 280 60 3-φ14 4-φ14
3250G/3280P-X, 3280G/3315P-X,
3315G/3355P-X, 3355G/3400P-X
800 300 730 1535 1515 410 288 60 3-φ14 4-φ14
