Coupling and uncoupling the implement
102
Condor 12001-C/15001-C BAH0030-4 07.15

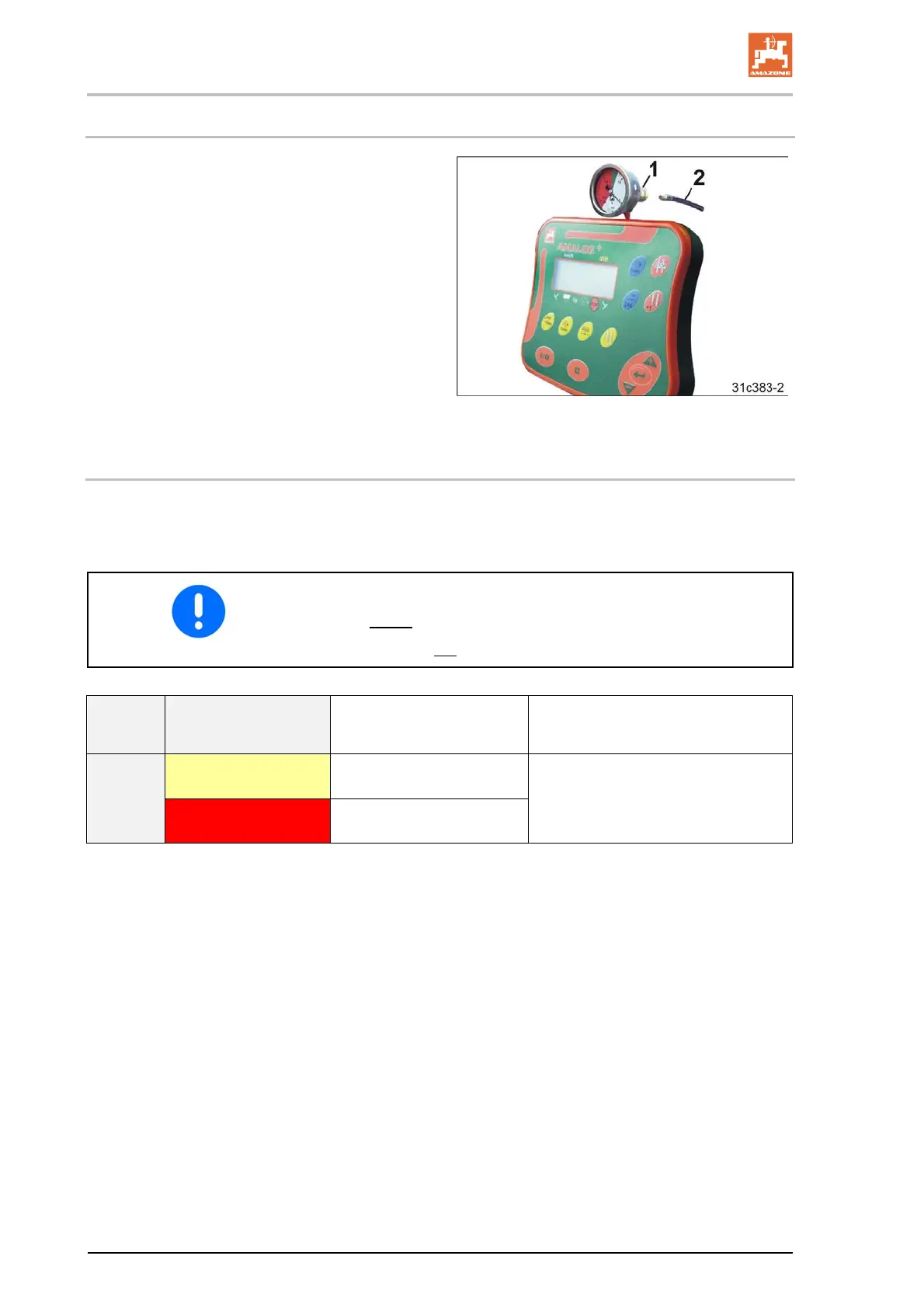

7.4 Connecting the pressure gauge
Connect the pressure gauge (Fig. 103/1) to the
hose (Fig. 103/2).
Fig. 103
7.5 Connecting the dual-circuit pneumatic braking system
Couple the brake and supply line to the tractor (see section "Coupling
the brake and supply lines", Seite 54).
On the tractor, couple
the yellow coupling head first (brake line).
and then the red coupling head (supply line).
Interface
Implement-side
identification of the
brake lines
Tractor connection Function
Tractor
yellow
(Fig. 25/6)
Brake line
Dual-circuit pneumatic braking
system
red
(Fig. 25/6a)
Supply line
