5.14.1 Seed placement depth
To adjust the seed placement depth, the trailing
press roller can be positioned at the desired
height.

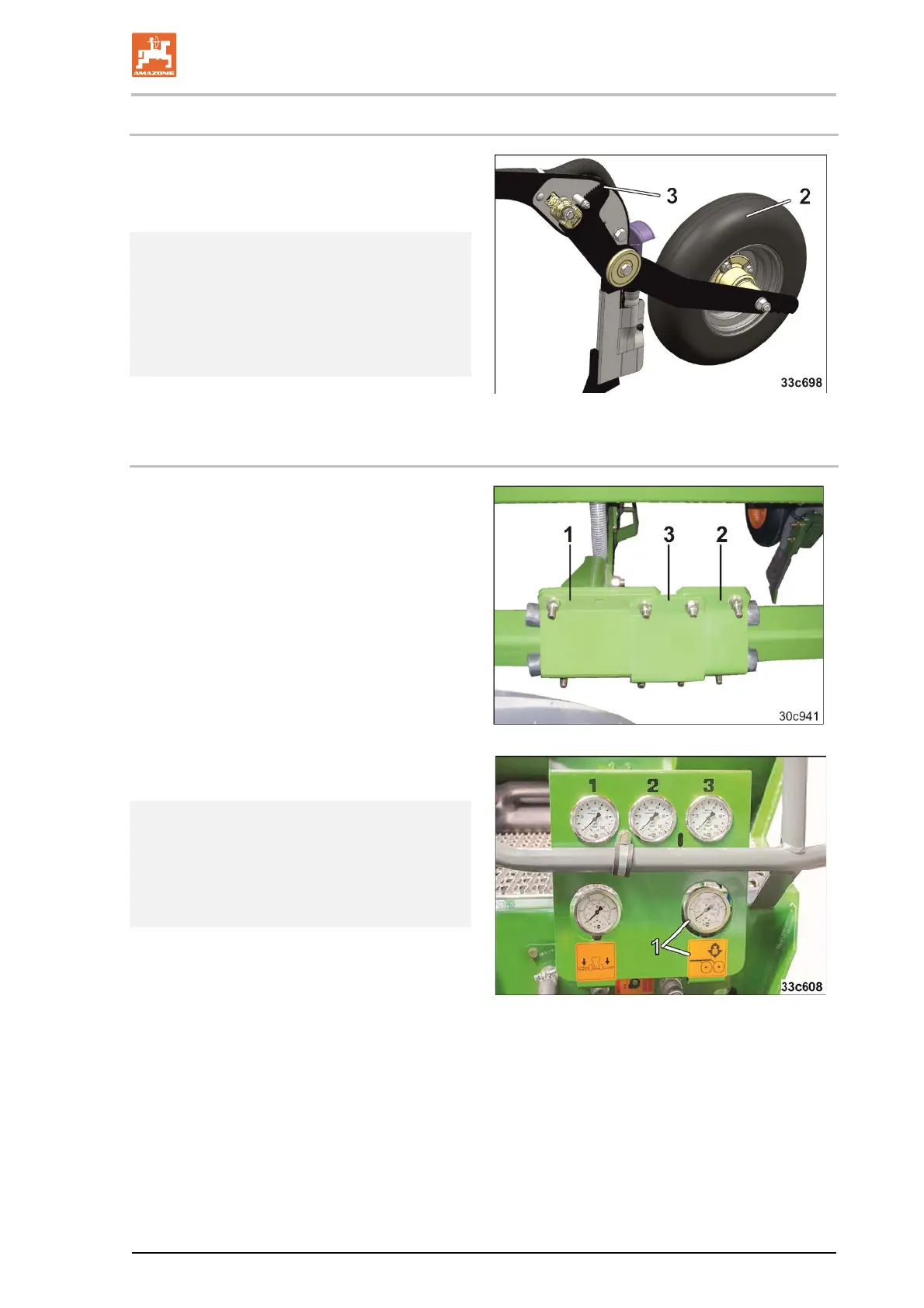

Fig. 76
The adjustment of the trailing press rollers (Fig.
76/2) by one gear tooth in the toothed segment
(Fig. 76/3) corresponds to a change in the
placement depth of approx. 10 mm.
The placement depth can be adjusted from 0 to
10 cm.
5.14.2 Coulter pressure
Individual coulters, e.g. in the compacted wheel
track, can work with a higher coulter pressure
(optional).
Coulters with higher coulter pressure can be
recognised in that there is a second bearing
plate (Fig. 77/2) bolted onto the adjustment rail in
addition to the coulter bearing (Fig. 77/1) and a
plate (Fig. 77/3) connects the two bearing plates.
Fig. 77
The pressure gauge (Fig. 78/1) displays the
status of the unit to the tractor driver.
Fig. 78
If the pressure gauge is depressurised:
The coulters work with normal coulter pressure.
If the pressure gauge is pressurised:
The coulters work with increased coulter
pressure.
Set the required coulter pressure with the blue
tractor control unit.
Reduce the coulter pressure on light soils, so
that the trailing press roller (Fig. 75/2) does not
penetrate too deep into the soil.
Increase the coulter pressure on heavy soils, to
press down the seed furrow with the trailing
press roller.
