5.10 Seed/fertiliser metering

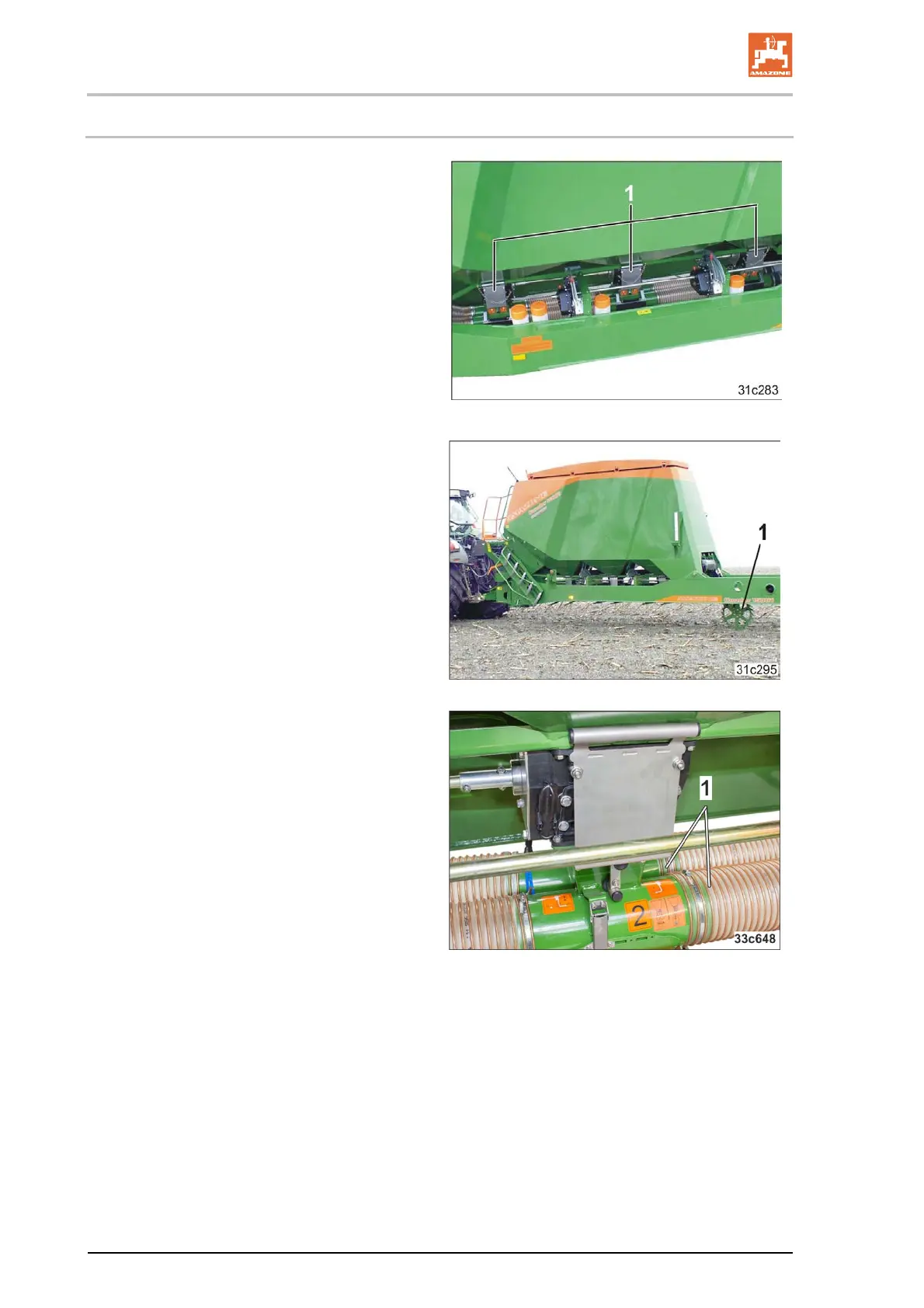

The implement has 3 metering units (Fig. 58/1)
Each metering unit is equipped with a metering
roller (see section "Metering Rollers Table", Seite
69).
Fig. 58
The metering rollers are driven by a star wheel
(Fig. 59/1).
A Vario gearbox is located upstream from each
metering roller (Fig. 65).
Fig. 59
The seed or fertiliser falls into the delivery tube
(Fig. 60/1).
The air current generated by the blower fan
conveys the seed/fertilizer mixture to the
distributor head and then onto the coulters.
Fig. 60
