5.2.2 Dual-circuit pneumatic braking system
Compliance with the maintenance intervals is essential for the correct
function of the brake system.
The implement's service brake system responds when the tractor
brake pedal or the tractor parking brake is actuated.
If the supply line (red) is disconnected from the tractor, the service
brake system automatically acts as a parking brake on the implement.
When the supply line (red) is coupled to the tractor, the parking brake
is released automatically as soon as the operating pressure has built
up and the parking brake of the tractor is released.

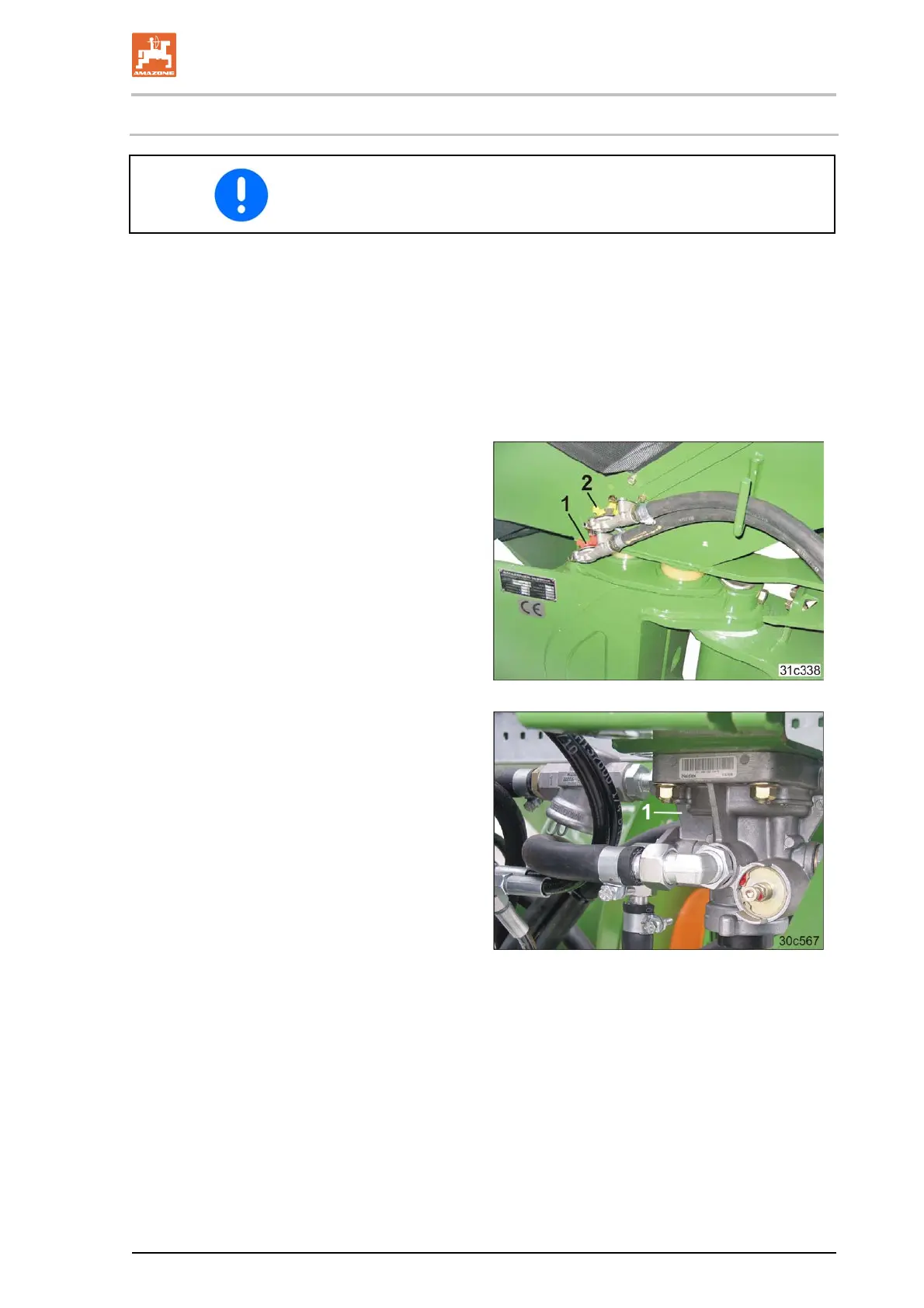

The dual-circuit pneumatic brake system has
A supply line (Fig. 33/1)
with coupling head (red)
A brake line (Fig. 33/2)
with coupling head (yellow).
Fig. 33
A trailer brake valve (Fig. 34/1)
Fig. 34
