Cleaning, maintenance and repairs
166
Condor 12001-C/15001-C BAH0030-4 07.15
12.4.1 Checking the oil level in the Vario gearbox
1. Position the implement on a horizontal
surface.
2. Check the oil level.

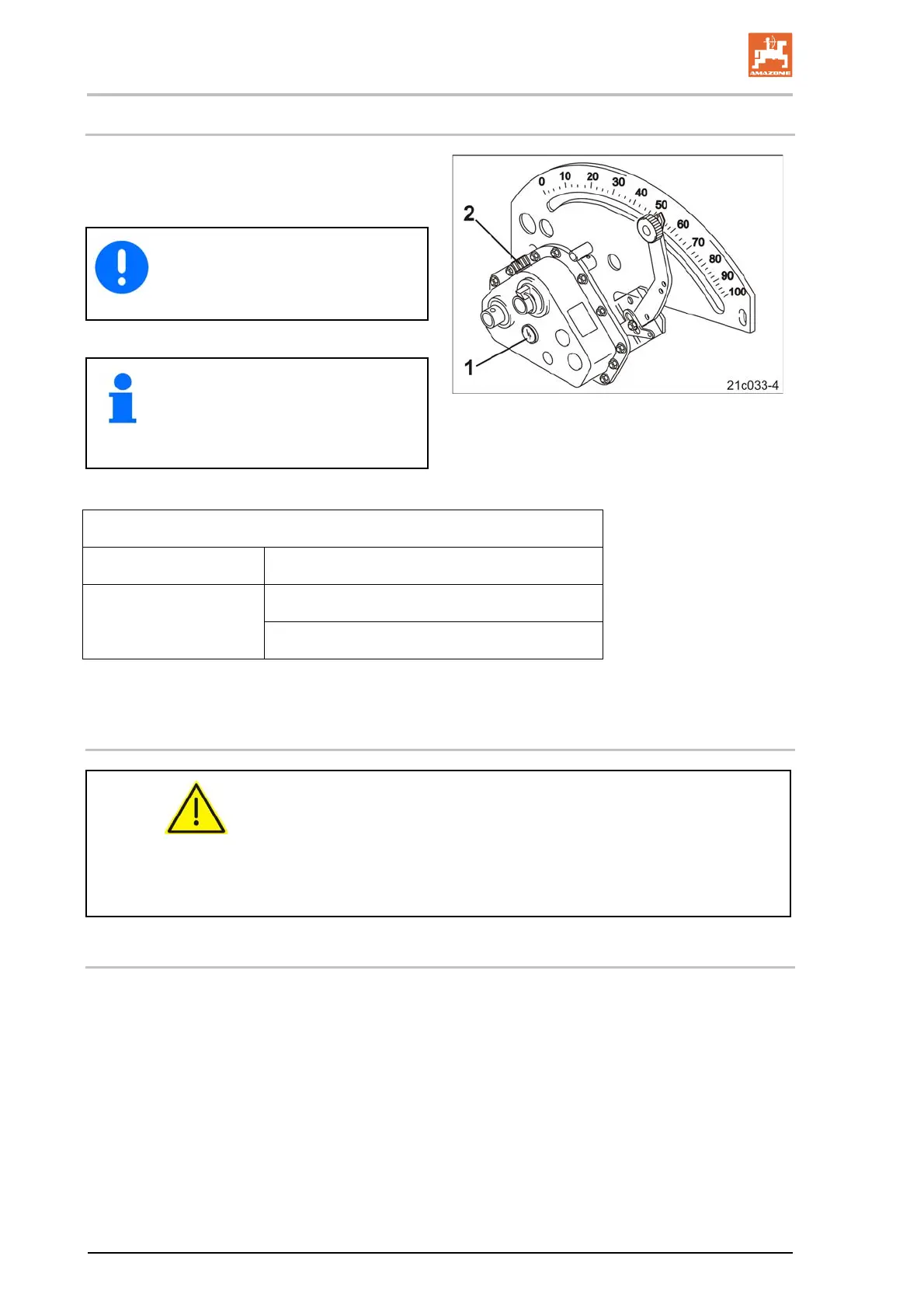

Fig. 209
The oil level must be visible in the oil
sight glass (Fig. 209/1).
There is no need to change the oil.
3. Top up the oil if necessary.
The oil filler neck (Fig. 209/2) is used
to top up the Vario gearbox.
Refer to the table (Fig. 210) for the
grade of transmission oil required.
Hydraulic fluid grades and fill level of the Vario gearbox
Total filling quantity: 0.9 litres
Gear oil (selectable):
Wintershall Wintal UG22 WTL-HM (ex-works)
Fuchs Renolin MR5 VG22
Fig. 210
12.4.2 Visual inspection of the lower link pins
WARNING
Risk of contusions, catching, and knocks when the implement
unexpectedly releases from the tractor!
Check the lower link pin for conspicuous defects whenever the
implement is coupled. Replace the draw bar, if there are any clear
signs of wear to the lower link pin.
12.4.3 Servicing roller chains and chain wheels
On all roller chains, at the end of the planting season
 Clean (including the chain wheels and chain tensioner)
 Check
 Lubricate with low-viscosity mineral oil (SAE30 or SAE40).
