Condor 12001-C/15001-C BAH0030-4 07.15
5.2.2.1 Coupling the brake and supply lines
WARNING
Risk of contusions, cuts, dragging, catching or knocks from
incorrectly functioning brake system.
 When coupling the brake and supply line, ensure that:
 the sealing rings of the hose couplings are clean.
 the sealing rings of the hose couplings form a proper seal.
 Always replace damaged seals immediately.
 Drain the air reservoir before the first journey every day.
 Only move off with the implement connected when the pressure
gauge on the tractor shows 5.0 bar!
WARNING
Risk of crushing, cutting, being caught or drawn in, or impact
through the accidentally rolling implement, if the service brake
is released.
Always first connect the hose coupling of the brake line (yellow),
followed by the hose coupling of the supply line (red).
The operating brake of the implement moves out of the brake
position immediately the red hose coupling has been coupled.
1. Apply the tractor parking brake, switch the
tractor engine off and remove the ignition
key.
2. Open the covers (Fig. 35/1) of the hose
couplings on the tractor.
3. Check the sealing rings on the hose
coupling for damage and cleanliness.
4. Clean the dirty sealing rings and replace
any damaged sealing rings.
5. Fasten the hose coupling of the brake line
(yellow) in compliance with regulations in
the coupling marked yellow (Fig. 35/2) on
the tractor.

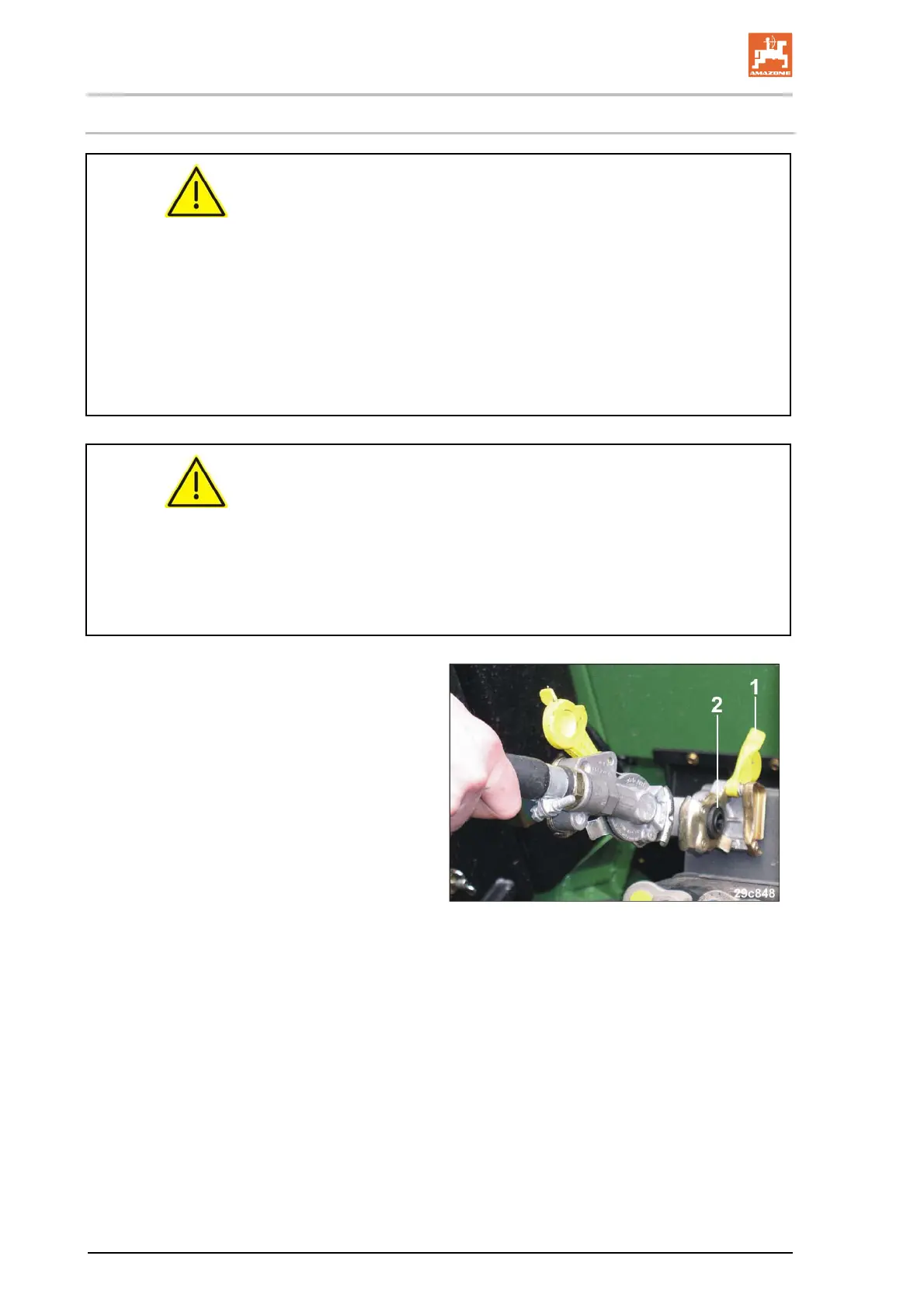

Fig. 35
