Amazone Condor 12001-C User Manual

Coupling and uncoupling the implement
104
Condor 12001-C/15001-C BAH0030-4 07.15

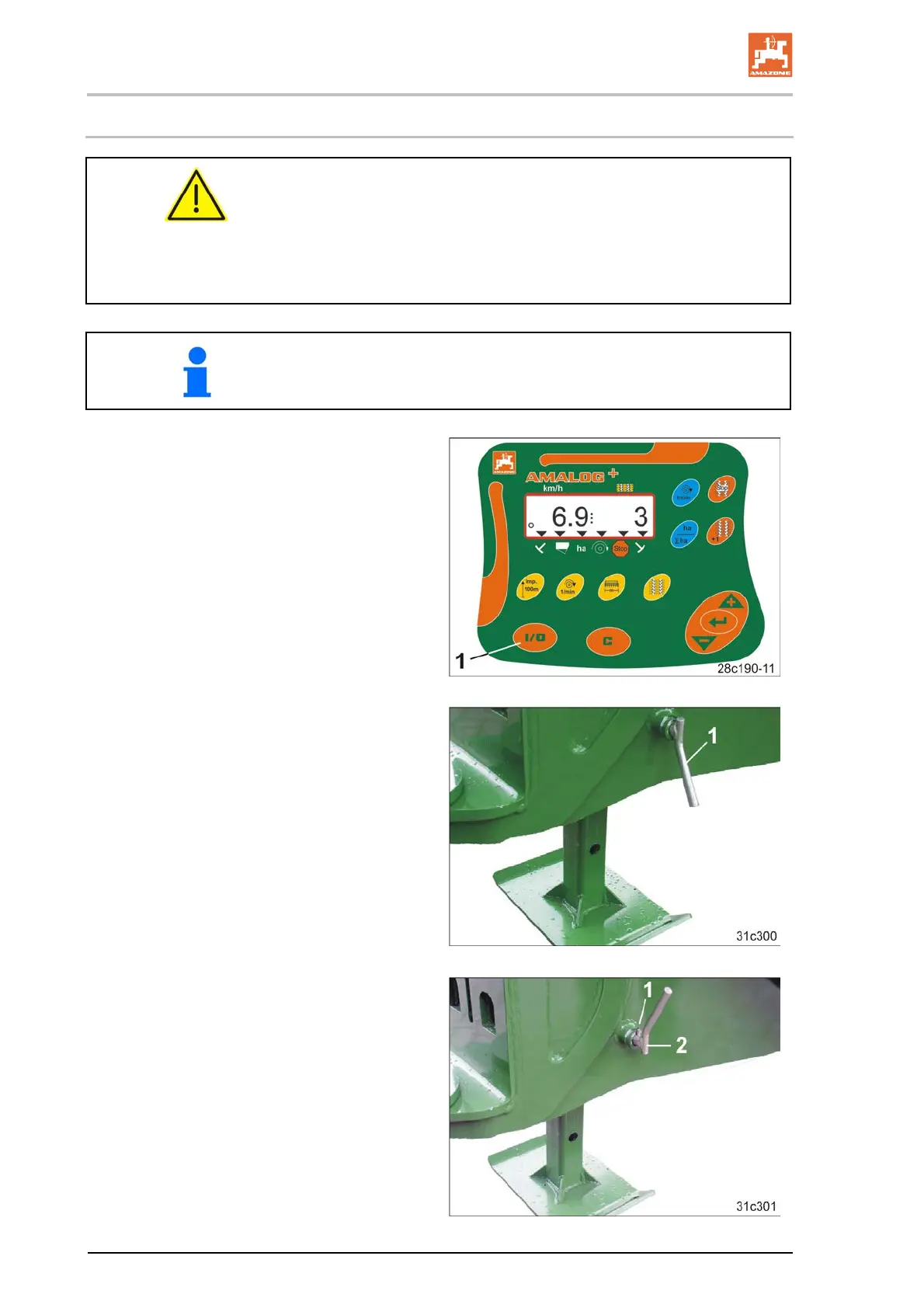

7.7 Uncoupling the implement
WARNING
Danger of being crushed, cut, caught, drawn in or struck
through insufficient stability and possible tilting of the
uncoupled implement!
Set the empty implement down on a horizontal parking area with a
firm base.
When uncoupling the implement, there must always be enough free
space in front of the implement that the tractor can be aligned with the
implement again during recoupling.
1.
A
lign the tractor and implement so that they
are straight on a horizontal parking surface
with a firm substrate.
2. Fold the implement completely in or out.
3. Switch off the AMALOG
+
.
3.1 Press the (Fig. 105/1) button.
4. Apply the tractor parking brake, switch the
tractor engine off and remove the ignition
key.
Fig. 105
5. Unlock the pin.
5.1 Turn the locked pin (Fig. 106/1) by
180
°
until the clamping sleeve(see Fig.
107/1) is released.
6. Hold onto the cable pull (Fig. 108) and pull
out the pin (Fig. 107/2).
Fig. 106
Fig. 107
