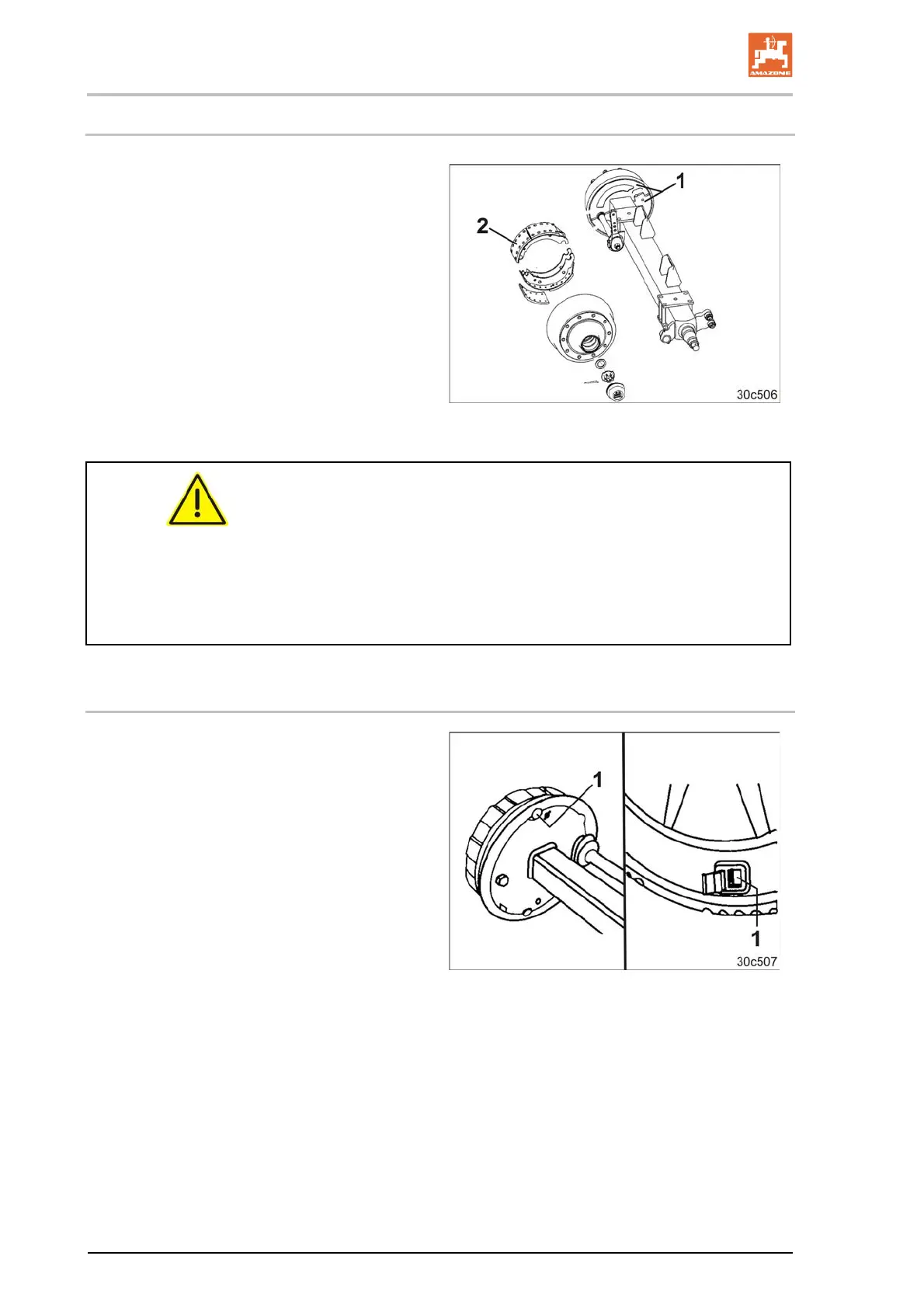

12.5.4 Checking the brake drum for dirt (specialist workshop)
1. Unscrew the two cover plates (Fig. 224/1)
on the inside of the brake drum.
2. Remove any dirt and plant residue.
3. Refit the cover plates.
Fig. 224
CAUTION
Penetrating dirt may clog the brake linings (Fig. 224/2), which
considerably reduces the braking power.
Risk of accident!
If there is dirt in the brake drum, the brake linings must be
checked by a specialist workshop.
For this purpose, the wheel and brake drum must be detached.
12.5.4.1 Brake lining inspection (specialist workshop)
Replace the brake lining when the remaining
lining thickness is
5 mm for riveted linings.
2 mm for bonded linings.
Remove the rubber plug (Fig. 225/1) in the
inspection hole.
Then reinsert the rubber plug.
