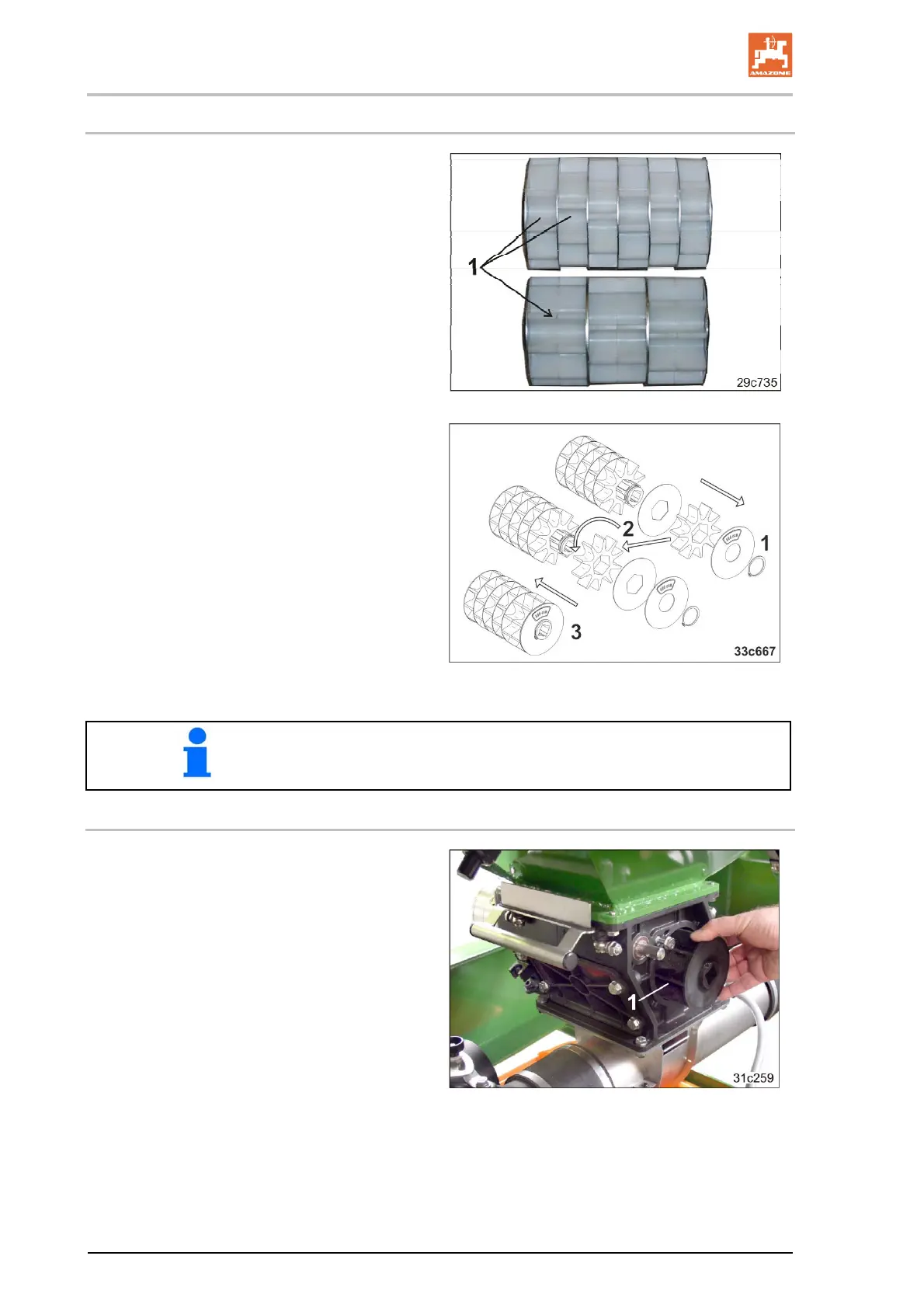

5.10.1.1 Converting the metering roller
The metering roller can be adjusted by
repositioning the seed metering wheels, idler
gears, and plates.
For seeding particularly large seeds, e.g. beans,
the chambers (Fig. 62/1) of the metering roller
can be enlarged by repositioning the metering
wheels and the plates.
Fig. 62
Fig. 63/…
(1) Remove the locking ring
Remove the metering wheels from the drive
shaft
(2) Re-arrange the metering wheels
(3) Position the metering wheels on the drive
shaft
Put on the locking ring
Fig. 63
The reduce the metering rate, replace the metering wheels by idler
gears.
5.10.1.2 Fertiliser metering roller
The fertiliser metering unit is equipped with a
fertiliser metering roller (Fig. 64/1) that is suitable
for all fertiliser types (see Metering Rollers Table,
Seite 69).
Fig. 64
