Commissioning
88
Condor 12001-C/15001-C BAH0030-4 07.15

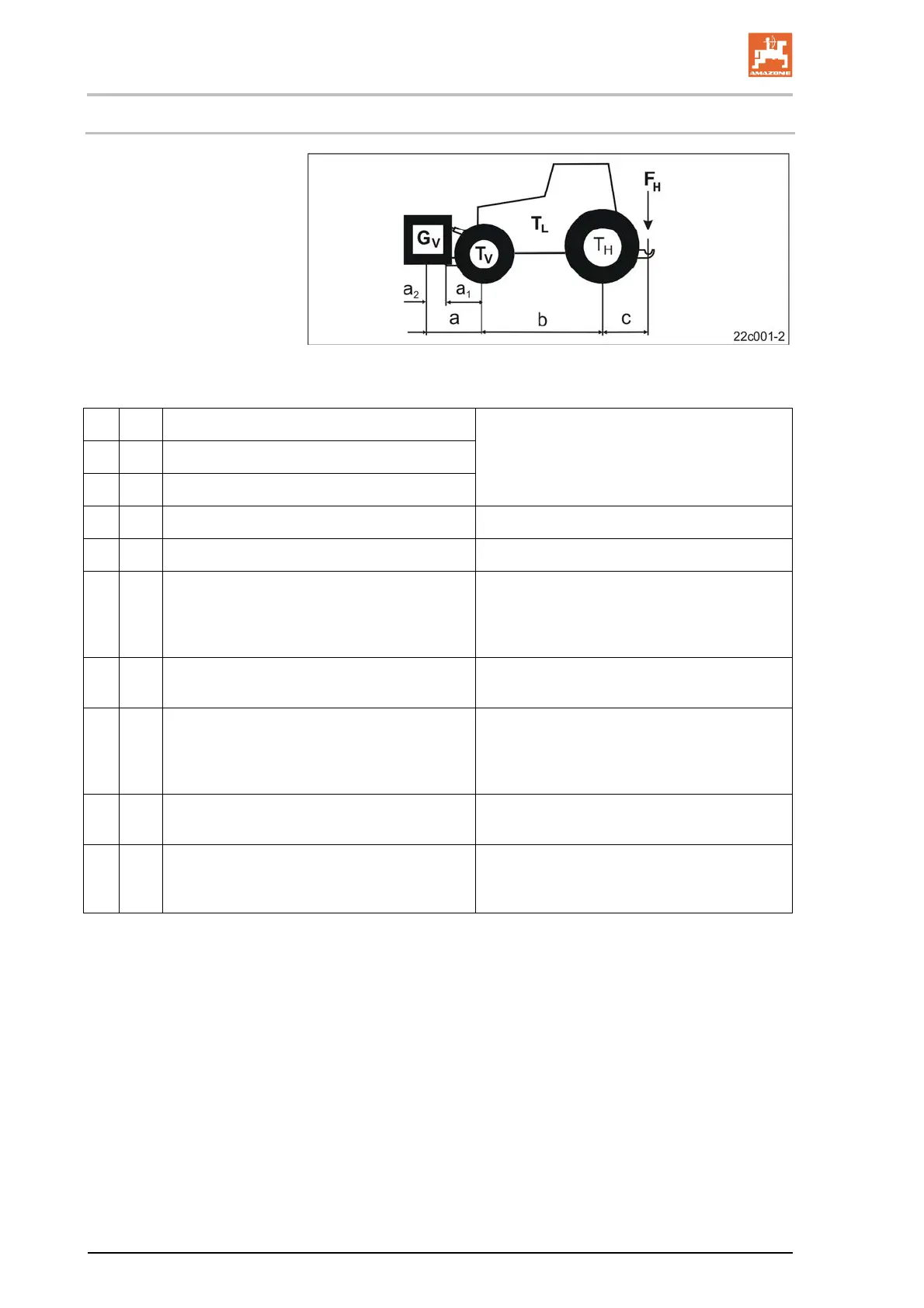

6.1.1.1 Data required for the calculation (hitched implement)
Fig. 94
T
L
[kg] Tractor empty weight See tractor operating manual or vehicle
documentation
T
V
[kg] Front axle load of the empty tractor
T
H
[kg] Rear axle load of the empty tractor
G
V
[kg] Front weight (if available) See front weight in technical data, or weigh
F
H
[kg] Maximum drawbar load See section "Road transport data", Seite 47
a [m] Distance between the centre of gravity of
the front implement mounting or the front
weight and the centre of the front axle (total
a
1
+ a
2
)
See technical data of tractor and front
implement mounting or front weight or
measurement
a
1
[m] Distance from the centre of the front axle to
the centre of the lower link connection
See tractor operating manual or
measurement
a
2
[m] Distance between the centre of the lower
link connection point and the centre of
gravity of the front-mounted implement or
front ballast (centre of gravity distance)
See technical data of front implement
mounting or front weight or measurement
b [m] Tractor wheel base See tractor operating manual or vehicle
documents or measurement
c [m] Distance between the centre of the rear
axle and the centre of the lower link
connection
See tractor operating manual or vehicle
documents or measurement
