8.5.4 Pressure relief valve with round outer contour

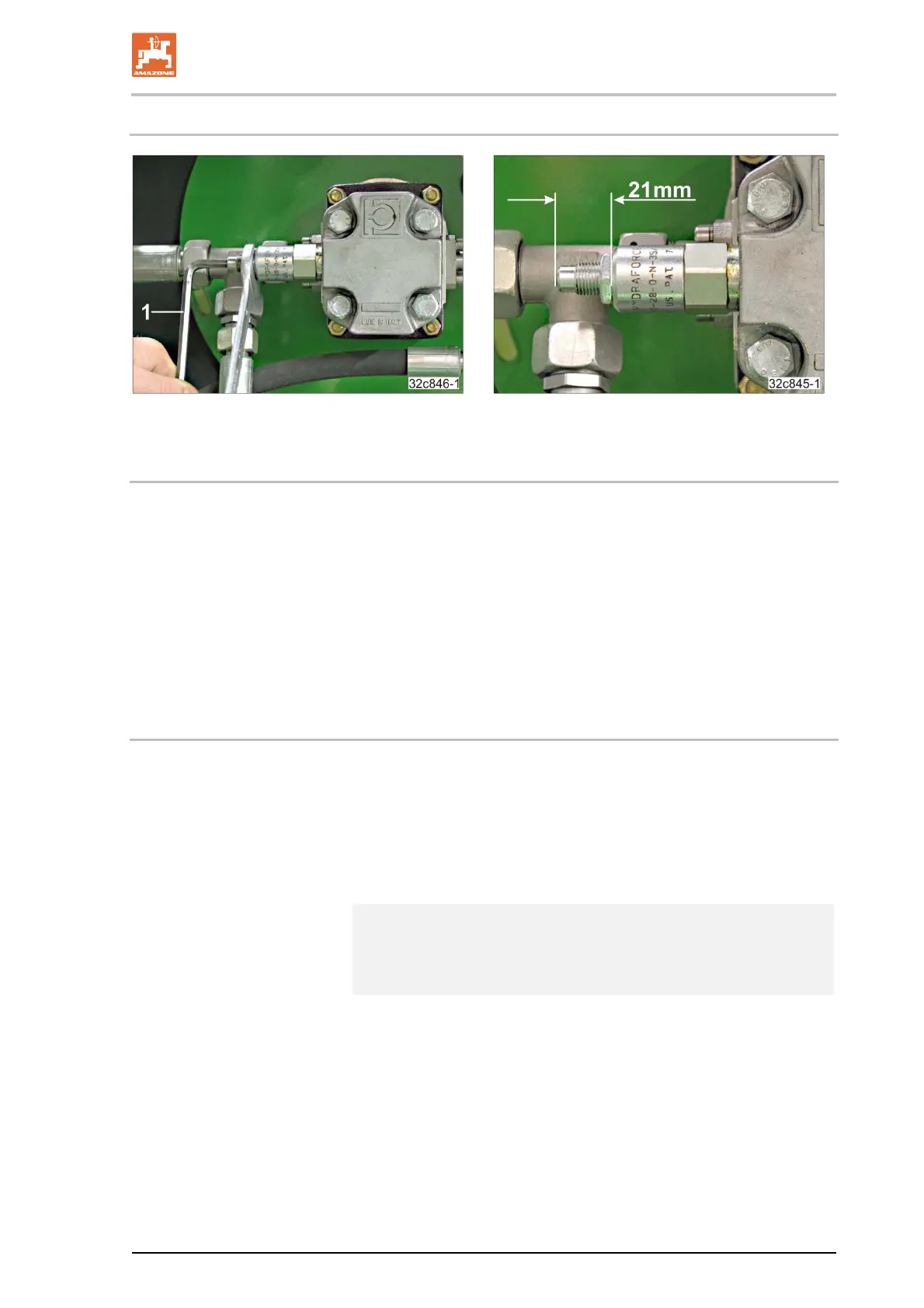

Fig. 140 Fig. 141
8.5.4.1 Pressure relief valve basic setting
Basic setting
1. Loosen the lock nut (Fig. 140).
2. Adjust the pressure relief valve to the factory-set dimension
"21 mm" (Fig. 141).
2.1 Turn the screw with the hexagon socket wrench (Fig.
140/1) accordingly.
3. Tighten the lock nut.
8.5.4.2 Setting the blower fan speed on tractors without flow control valve
This setting should only be carried out when the blower fan hydraulic
motor is connected to the tractor hydraulics andf the tractor is
equipped with a flow control valve.
1. Loosen the lock nut (Fig. 140).
2. Use the hexagon socket wrench (Fig. 140/1) to set the target blo
w
relief valve. Do not exceed the maximum blower fan speed of 40
0
Blower fan speed
Turning to the right: increases the target blower fan speed.
Turning to the left: reduces the target blower fan speed.
3. Tighten the lock nut.
