Use of the implement
138
Condor 12001-C/15001-C BAH0030-4 07.15
10.1 Unfolding/folding the implement boom
DANGER
Before you fold or unfold the implement booms and track
markers, instruct people to leave the swivel area
of the implement booms.
of the rear frame.
Align the tractor and implement straight on a flat surface before you
fold the implement booms out or in.
Drive the tractor in front of the implement at a slight angle. This
makes the catch hooks (Fig. 162/1) for the implement booms more
visible.
10.1.1 Unfolding the implement booms
1. Apply the tractor parking brake, switch the
tractor engine off and remove the ignition
key.

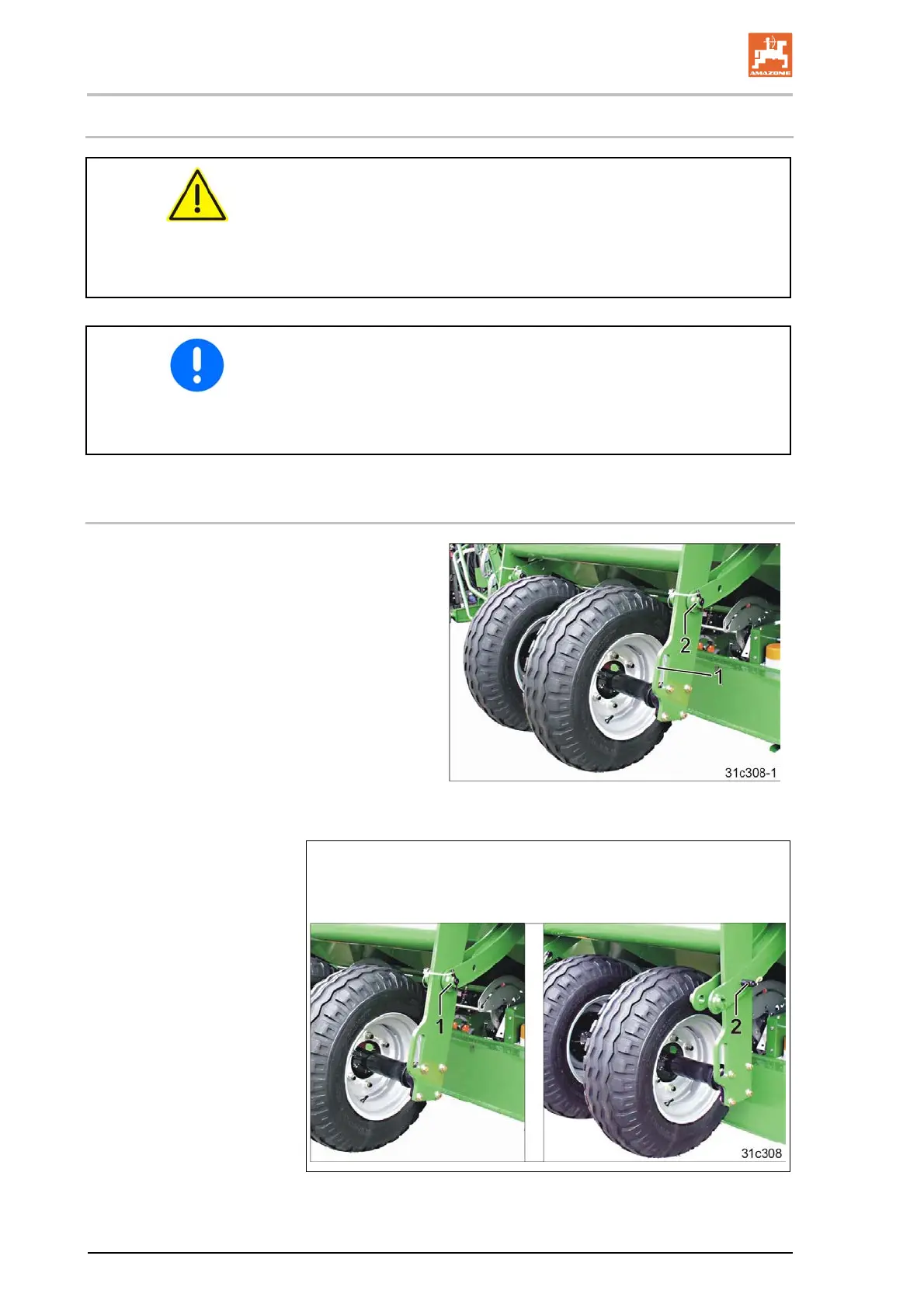

2. Take hold of the support wheels by the
handle (Fig. 160/1) and peg in working
position [see Table (Fig. 161)]
3. Lock the pins (Fig. 160/2) with linch pins.
Fig. 160
Working position: Insert pin in hole (1)
Transport position: Insert pin in hole (2)
Fig. 161
