3 Loading and unloading
DANGER
Depending on the equipment, the approved transport width of
3.0 m and the transport height of 4.0 m is exceeded when the
implement is loaded on a transport vehicle.
See section 9, Transportation (Seite 131).
DANGER
Never stand underneath implements lifted by a crane.
DANGER
Only attach the lifting gear at the marked positions. Do not stand
under suspended loads.

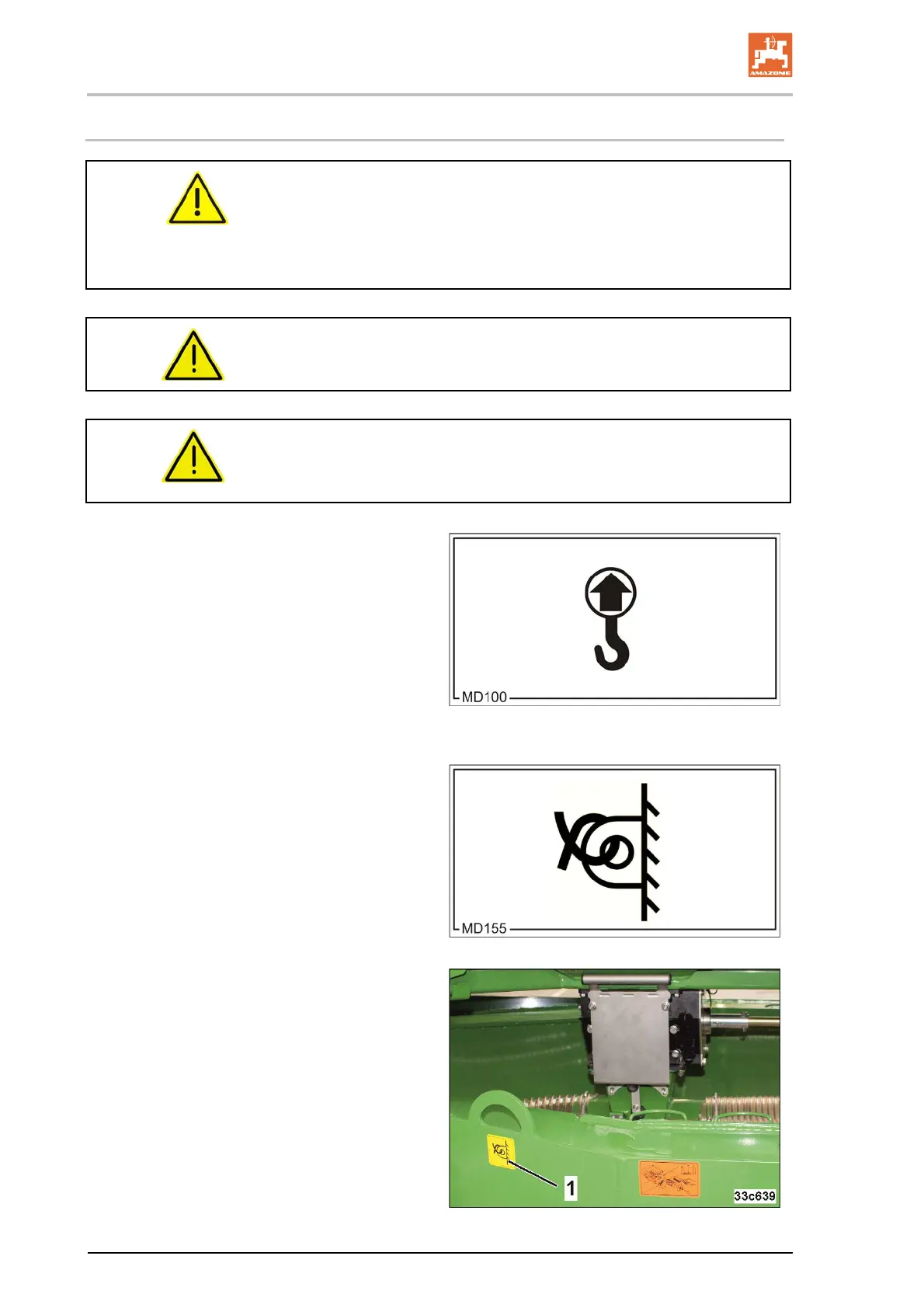

The pictogram (Fig. 4) marks the location at
which the lifting gear is to be attached to the
implement.
1. Attach three straps at the marked positions.
2. Place the implement on the transport
vehicle and lash it down as prescribed.
Fig. 4
The (Fig. 5) symbol marks the lashing points on
the implement.
Fig. 5
Fig. 6/…
(1) Front lashing points
Fig. 6
