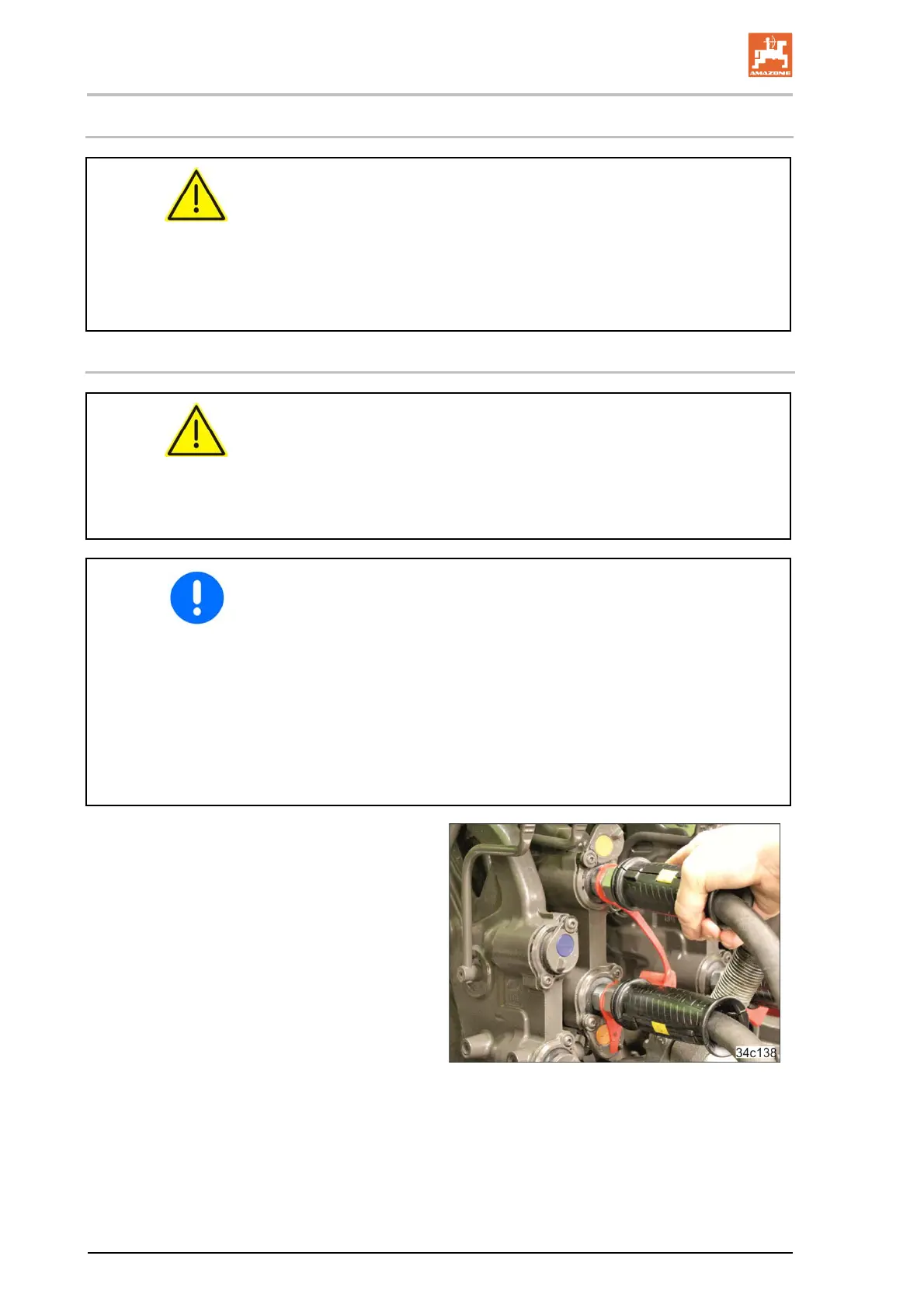

Layout and function
50
Condor 12001-C/15001-C BAH0030-4 07.15
5.1 Hydraulic hose lines
WARNING
Danger of infection from escaping hydraulic fluid at high
pressure!
When coupling and uncoupling the hydraulic hose lines, ensure that
the hydraulic system is depressurised on both the implement and
tractor sides.
If you are injured by hydraulic fluid, contact a doctor immediately.
5.1.1 Coupling the hydraulic hose lines
WARNING
Risk of being crushed, cut, caught, drawn in or struck due to
faulty hydraulic functions when the hydraulic hose lines are
connected incorrectly!
When coupling the hydraulic hose lines, observe the coloured
markings on the hydraulic connectors.
Check the compatibility of the hydraulic fluids before connecting
the implement to the hydraulic system of the tractor.
Do not mix any mineral oils with biological oils.
Observe the maximum approved hydraulic fluid pressure of
210 bar.
Only couple clean hydraulic connectors.
Push the hydraulic push-fit connector(s) into the hydraulic
sockets until the hydraulic connector(s) perceivably lock(s).
Check the coupling points of the hydraulic hose lines for a
correct, tight seat.
1. Swivel the actuation lever on the control
valve on the tractor to float position (neutral
position).
2. Clean the hydraulic connectors of the
hydraulic hose lines before you couple the
hydraulic hose lines to the tractor.
3. Connect the hydraulic hose line(s) to the
tractor control unit(s).
Fig. 29
