Layout and function
60
Condor 12001-C/15001-C BAH0030-4 07.15
5.4 Frame and implement booms

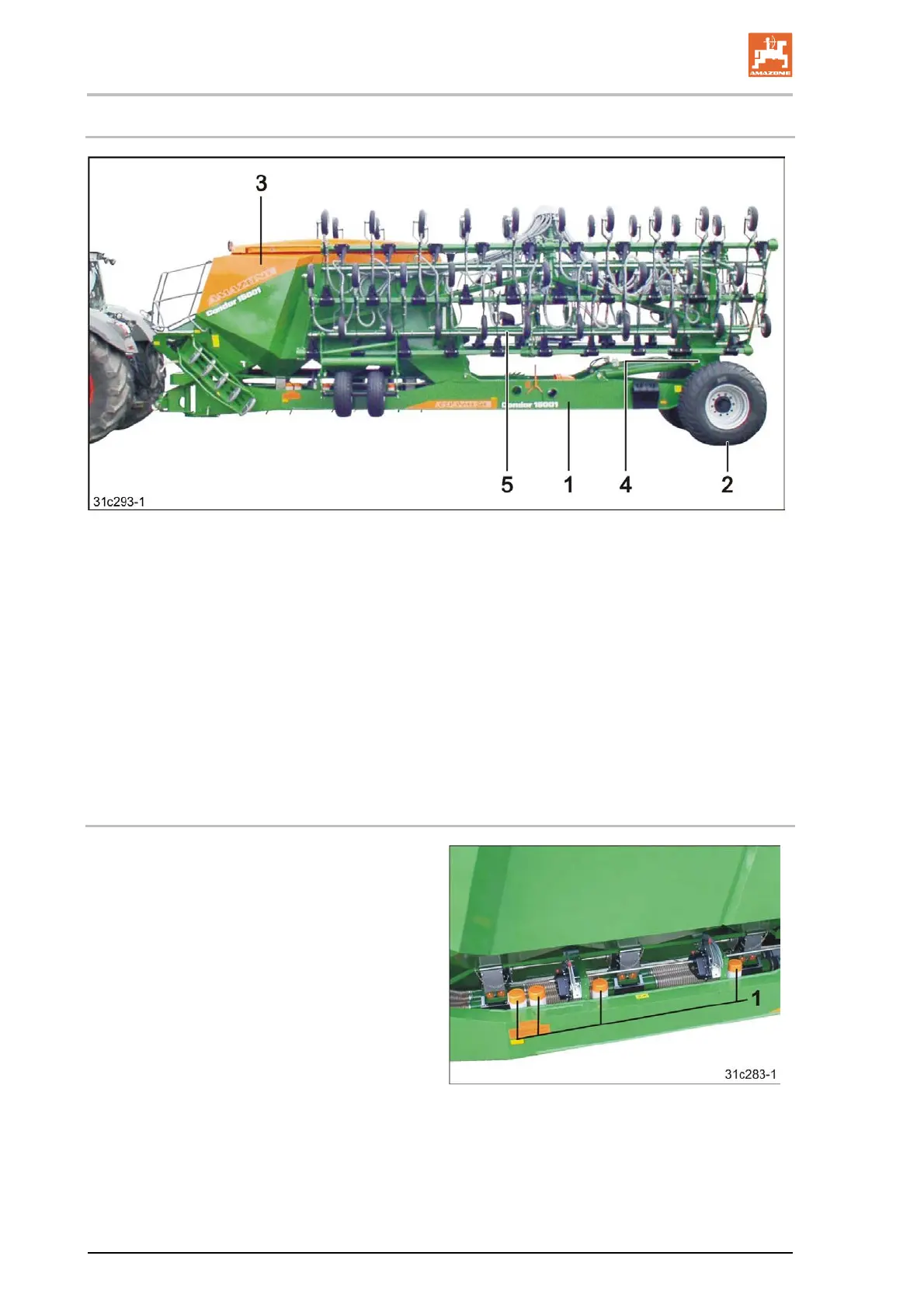

Fig. 44
The implement has
a main frame (Fig. 44/1) with running gear (Fig. 44/2) and
hopper (Fig. 44/3).
a foldable rear frame (Fig. 44/4)
that lifts the coulter before turning at the end of the field.
that is nearly vertical before the implement booms are
folded in.
two implement booms which are retractable for transportation
purposes (Fig. 44/5).
5.5 Threaded cartridge
The threaded cartridges (Fig. 45/1) include
the accessories kit with the operating
manual,
the metering rollers in parking position,
the scales for the calibration test.
Fig. 45
