Amazone Condor 12001-C User Manual

Coupling and uncoupling the implement

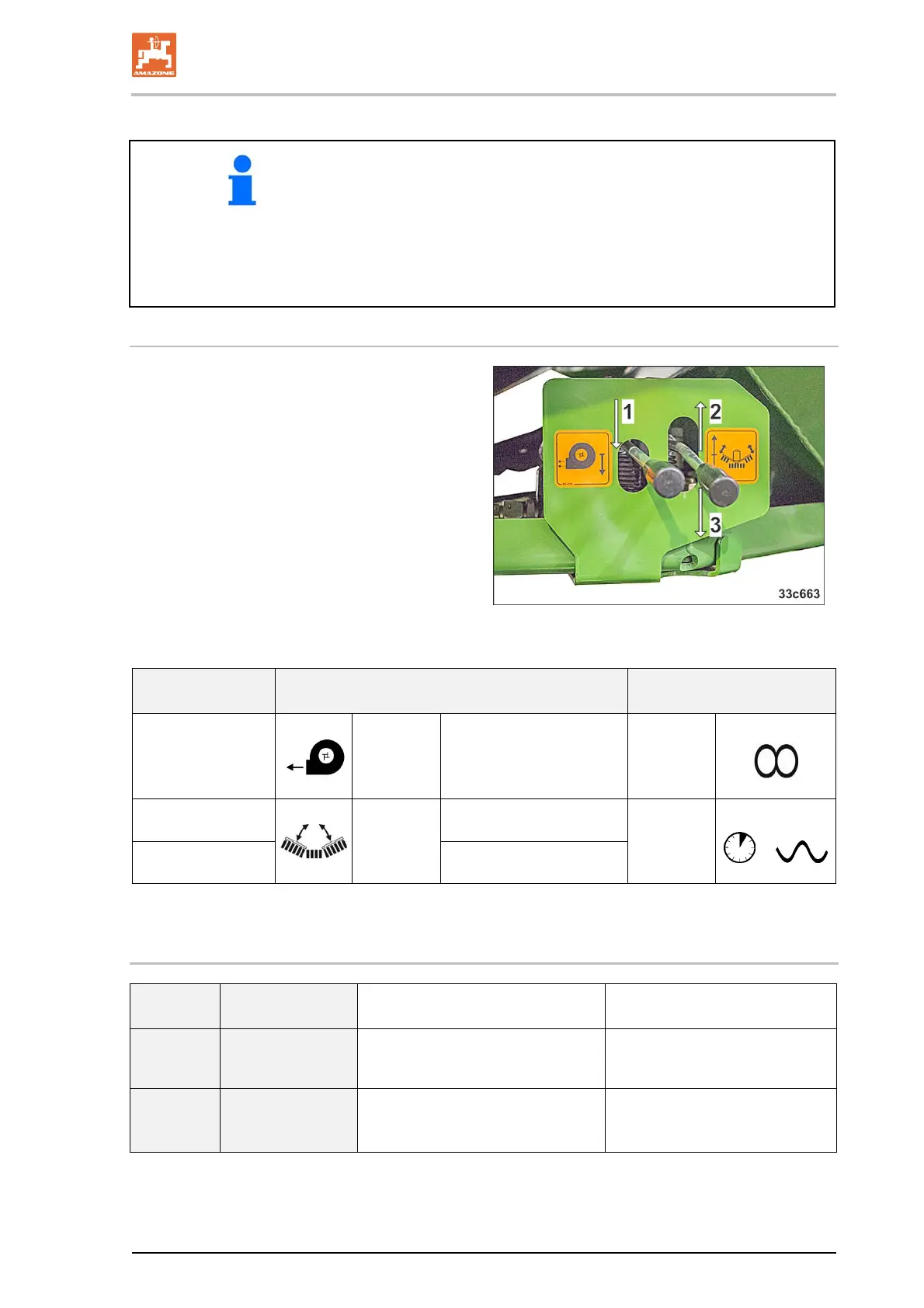

Condor 12001-C/15001-C BAH0030-4 07.15
101
 During work the yellow tractor control unit is actuated more
frequently than any other control unit. Assign the connections of
the yellow control unit to an easily accessible control unit in the
tractor cab.
 Tractors with constant pressure hydraulic systems are designed
only conditionally for the operation of hydraulic motors. Observe
of the recommendations of the tractor manufacturer.
On-board hydraulics (optional)
When equipped with an on-board hydraulic
system, the function from the green tractor
control unit is transferred to an implement control
unit.
Fig. 102
Marking
Function (see Fig. 102)
External control unit
1
Blower fan
hydraulic
motor
Switch on Single
2
Boom
Move into transport position
Double
acting
/
3 Move into working position
7.3 Making further connections
Interface
Assembly:
Function Notes
Tractor
Plug (7-pin)
(Fig. 25/8)
Road traffic lighting system
(optional)
Terminal
Implement plug
(Fig. 25/7)
On-board computer data cable
AMALOG
+
(optional)
Plug the connector into the
terminal as described in the
AMALOG
+
operating manual.
