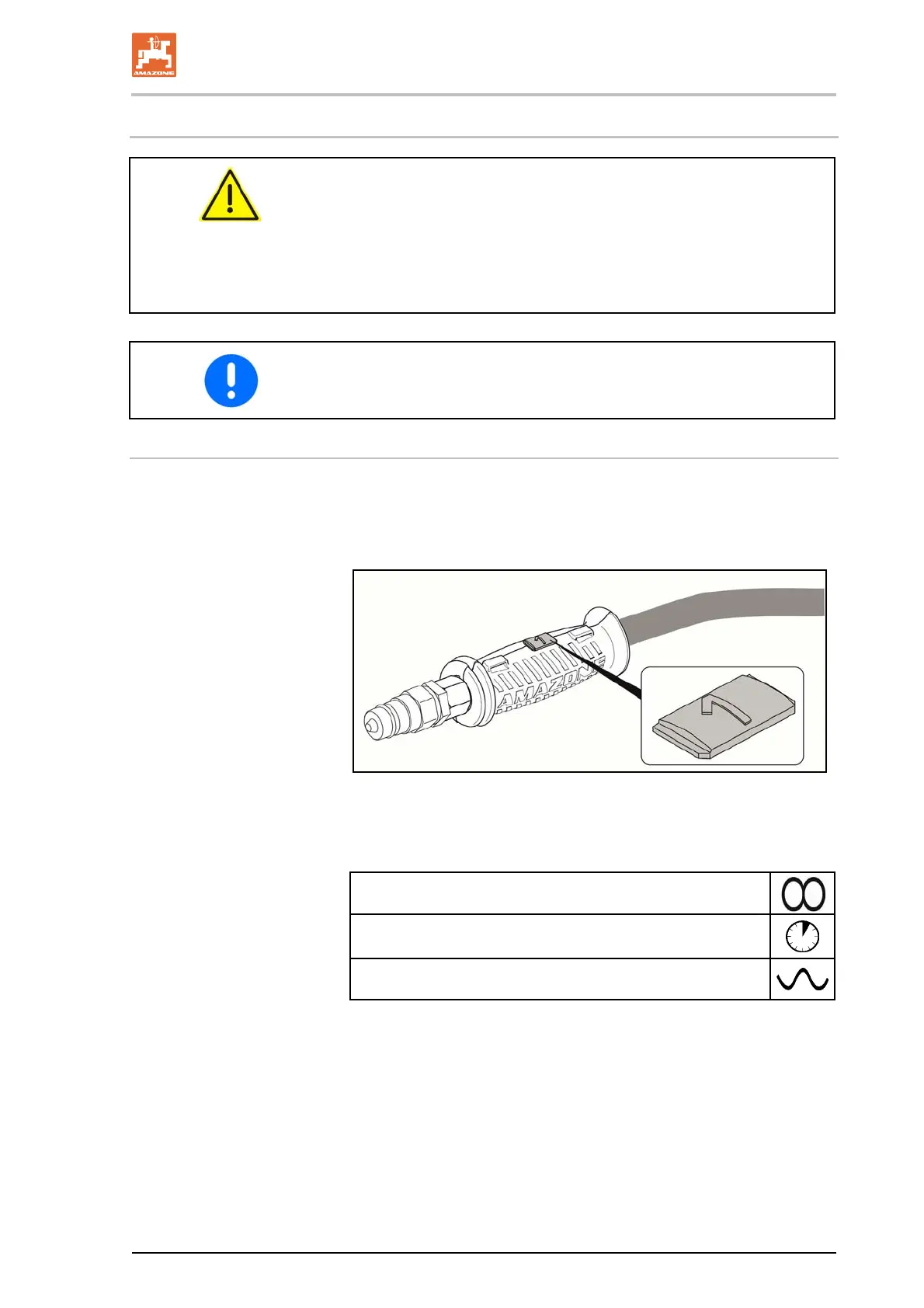

7.2 Connecting the hydraulic connections
WARNING
Danger of infection from escaping hydraulic fluid at high pressure!
When coupling and uncoupling the hydraulic hose lines, ensure that the
hydraulic system is depressurised on both the implement and tractor
sides.
If you are injured by hydraulic fluid, contact a doctor immediately.
Clean the hydraulic couplings before connecting them to the tractor.
Minor oil contamination with particles can cause a failure of the hydraulic
system.
Identification of the hydraulic lines on the implement side
 All hydraulic hose lines are equipped with grips.
Coloured markings with a code number or code letter have been
applied to the gripping sections in order to assign the respective
hydraulic function to the pressure line of a tractor control unit!
Films are stuck on the implement for the markings that illustrate
the respective hydraulic function.
 The tractor control unit must be used in different types of
activation, depending on the hydraulic function.
Latched, for a permanent oil circulation
Tentative, activate until the action is executed
Float position, free oil flow in the control unit
