Coupling and uncoupling the implement
98
Condor 12001-C/15001-C BAH0030-4 07.15

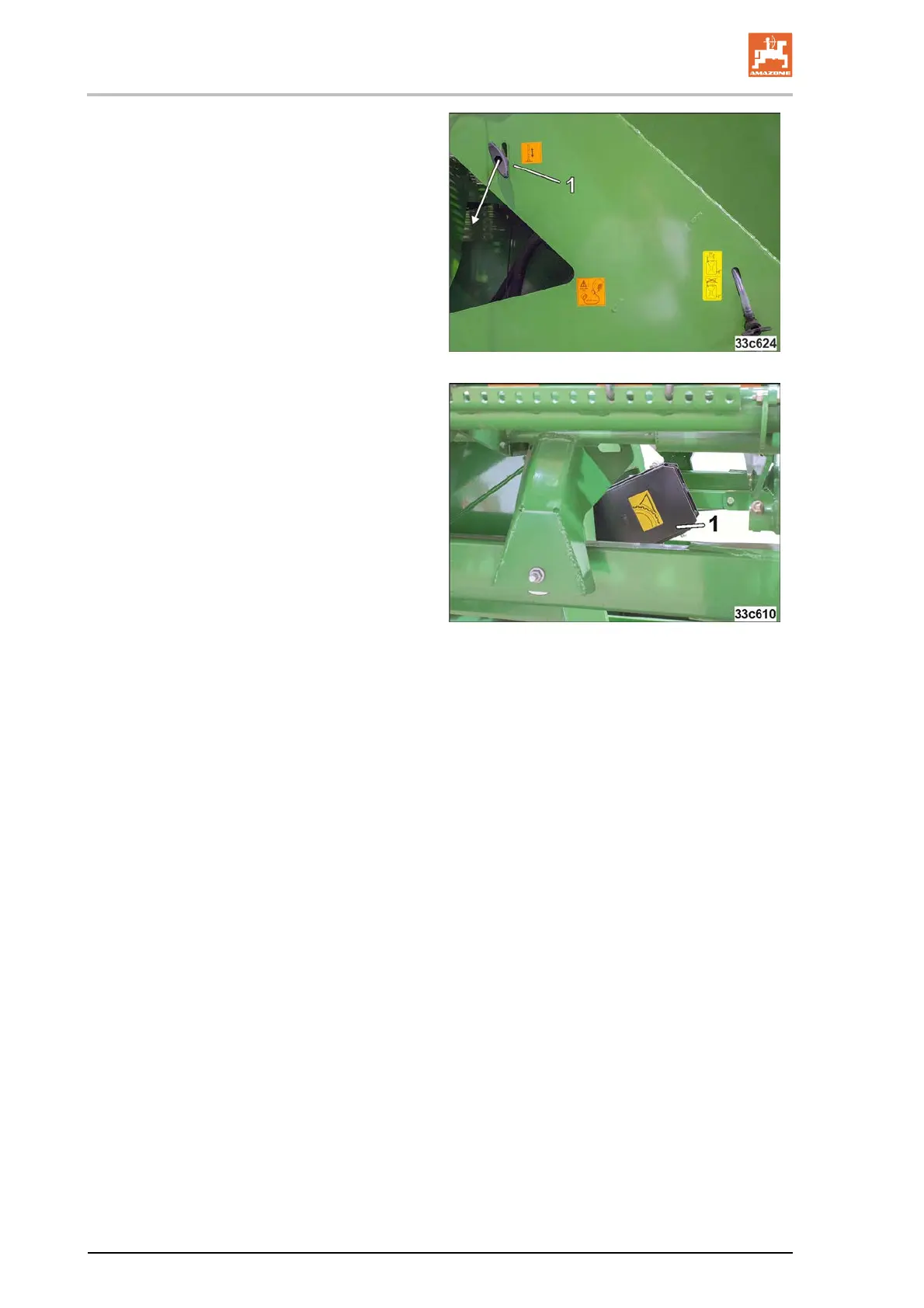

13. Unlock the pin.
13.1 Turn the locked pin (Fig. 98/1) by 180
°
until the clamping sleeve(see Fig.
99/1) is released.
14. Hold onto the cable pull (Fig. 100) and pull
out the pin (Fig. 99/2).
15. Pull up the jack using the cable pull and peg
the position with the pin.
16. Lock the pin by turning (see Fig. 98).
Fig. 100
17. Check the function of the braking and
lighting system.
18. Stow the wheel chocks in the brackets and
lock with a spring clamp (Fig. 101).
19. Before commencing a run, perform a
braking test.
Fig. 101
