Layout and function
Condor 12001-C/15001-C BAH0030-4 07.15
81
Example for creating tramlines

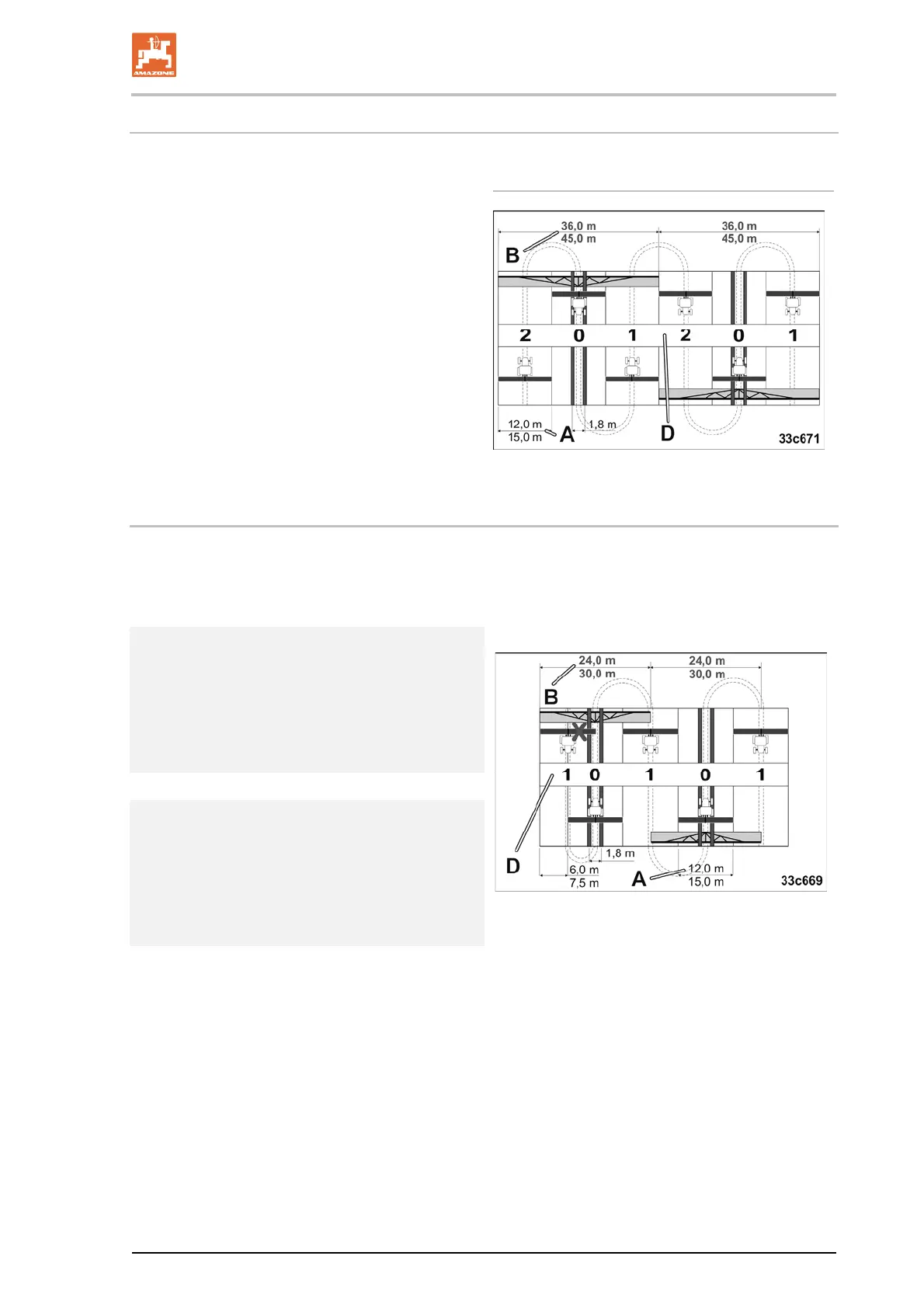

The creation of tramlines is shown in Figure (Fig.
87) based on an example:
A = Working width of the seed drill
B = Tramline spacing
(= working width of fertiliser spreader/field
sprayer)
C = Tramline rhythm
(input on the on-board computer
1
)
D = Tramline counter (during work, the field
passes are numbered consecutively and
displayed on the on-board computer
1)
).
Perform any inputs and outputs with the aid of
the operating manual of the on-board computer
1)
.
1)
AMALOG
+
Example for tramline rhythm no. 3 (C)
Fig. 87
5.16.1 Tramline rhythm no. 1
Tramline rhythm no. 1 requires the seed drill working with half the
working width (part width section) during the first field pass (see
section "Half-sided switching off", Seite 130).
Working width of the seed drill (A) 12 m
Fig. 88
Working width of the fertiliser spreader/field
sprayer (B)
24 m
Tramline distance 24 m
Tramline counter display (D) 1/0
Working width of the seed drill (A) 15 m
Working width of the fertiliser spreader/field
sprayer (B)
30 m
Tramline distance 30 m
Tramline counter display (D) 1/0
