Amazone Condor 12001-C User Manual

Layout and function
Condor 12001-C/15001-C BAH0030-4 07.15
83

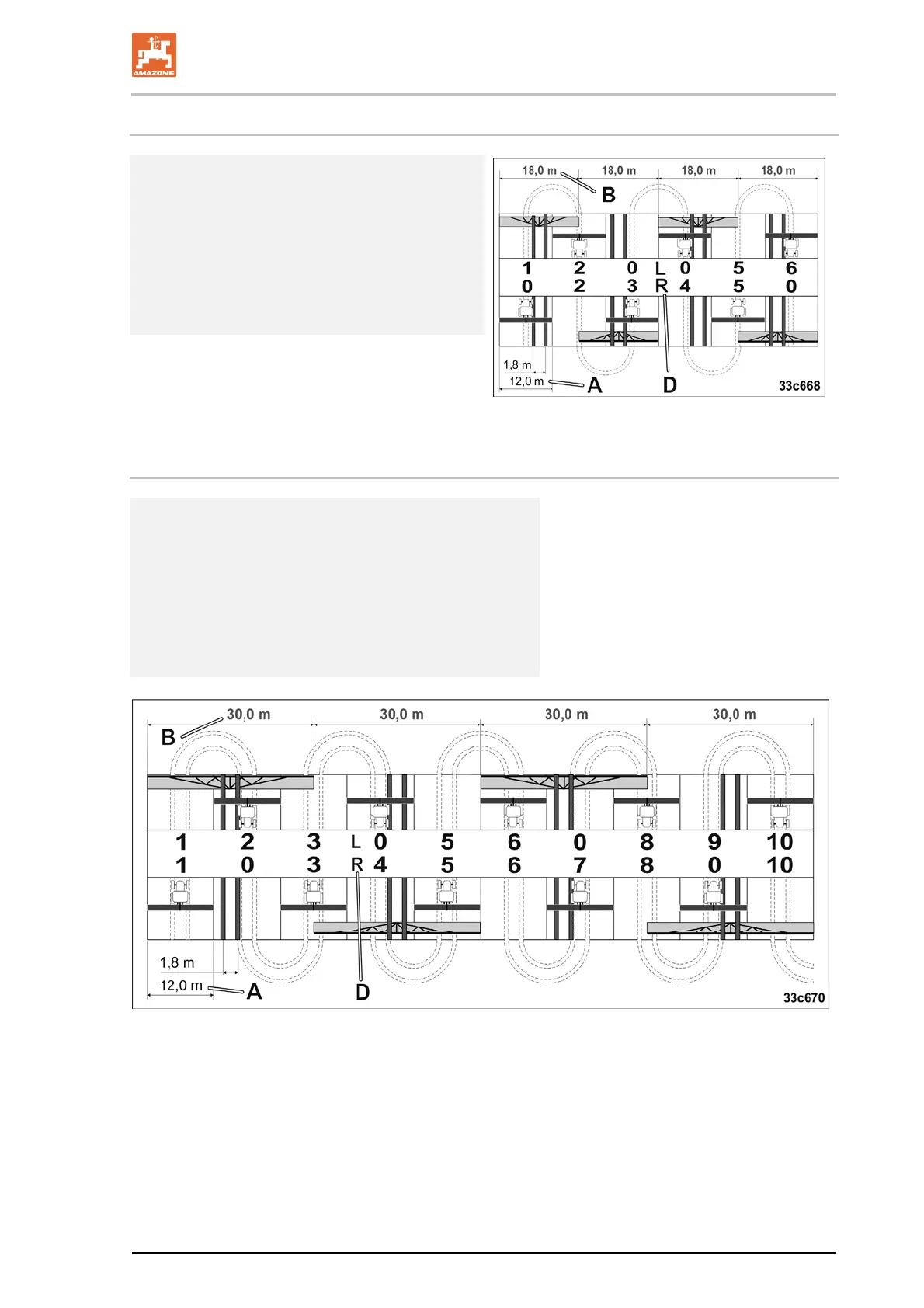

5.16.4 Tramline rhythm no. 37
Working width of the seed drill (A) 12 m
Fig. 91
Working width of the fertiliser spreader/field
sprayer (B)
18 m
Tramline distance 18 m
Tramline counter display, left (D) 1/2/0/0/5/6
Tramline counter display, right (D) 0/2/3/4/5/0
5.16.5 Tramline rhythm no. 24
Working width of the seed drill (A) 12 m
Working width of the fertiliser spreader/field
sprayer (B)
30 m
Tramline distance 30 m
Tramline counter display, left (D) 1/2/3/0/5/6/0/8/9/10
Tramline counter display, right (D) 1/0/3/4/5/6/7/8/0/10
Fig. 92
