Use of the implement

Condor 12001-C/15001-C BAH0030-4 07.15

141

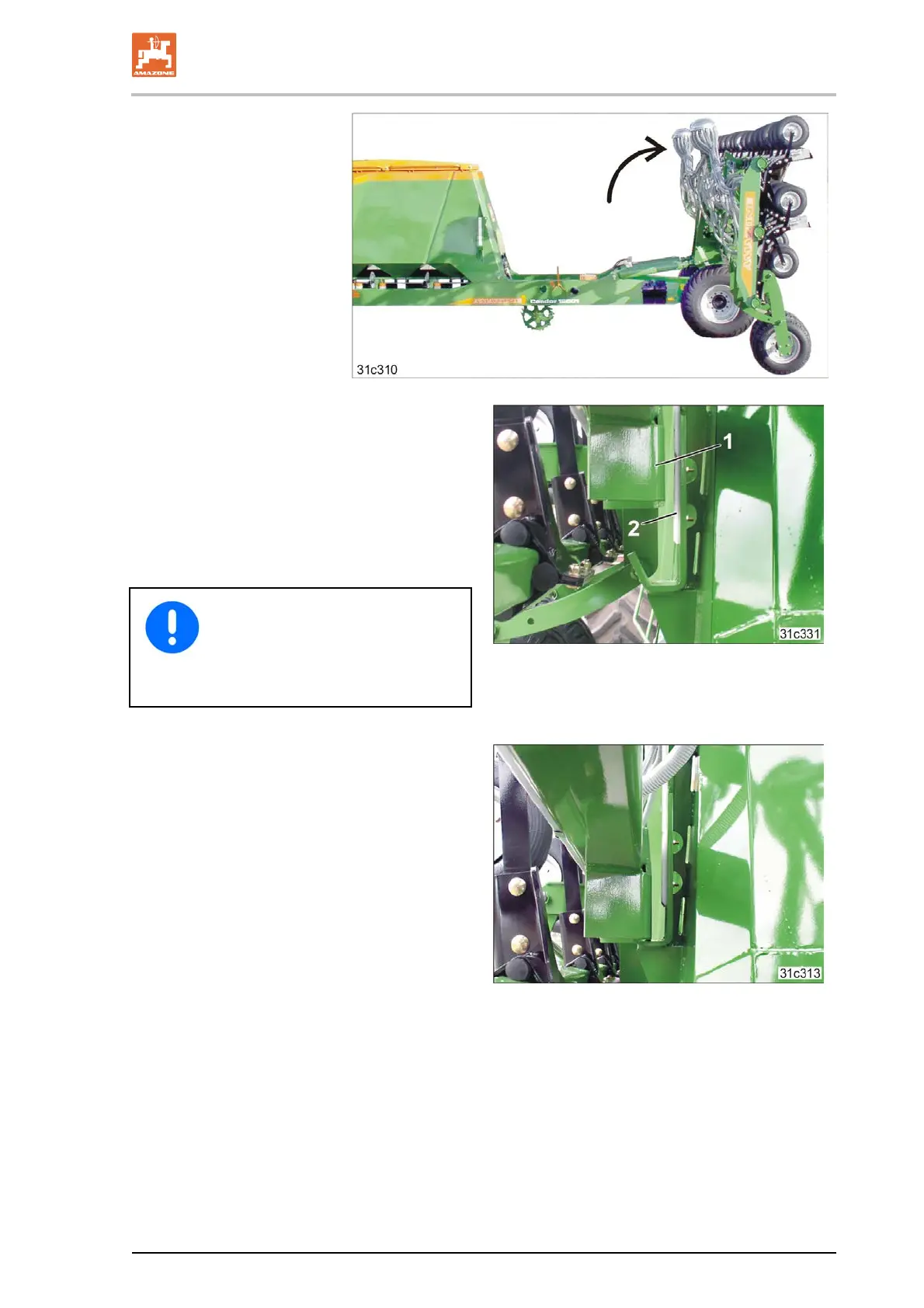

Fig. 167

5. Fold the implement booms in.

5.1 Keep actuating the green control unit

until

 the distributor heads are folded (see

Fig. 167)

 the implement booms (Fig. 168/1) are

resting on the skids (Fig. 168/2) of the

lock hooks.

Fig. 168

Beware of possible collisions of the

implement booms with the

implement.

Correct the tilt of the rear frame (see

Fig. 166) if necessary.

5.1 Actuate the yellow control unit until

both implement booms are in the

transport locking mechanism.

Fig. 169
