Use of the implement
Condor 12001-C/15001-C BAH0030-4 07.15
143
Working position: Insert pin in hole (1)
Transport position: Insert pin in hole (2)

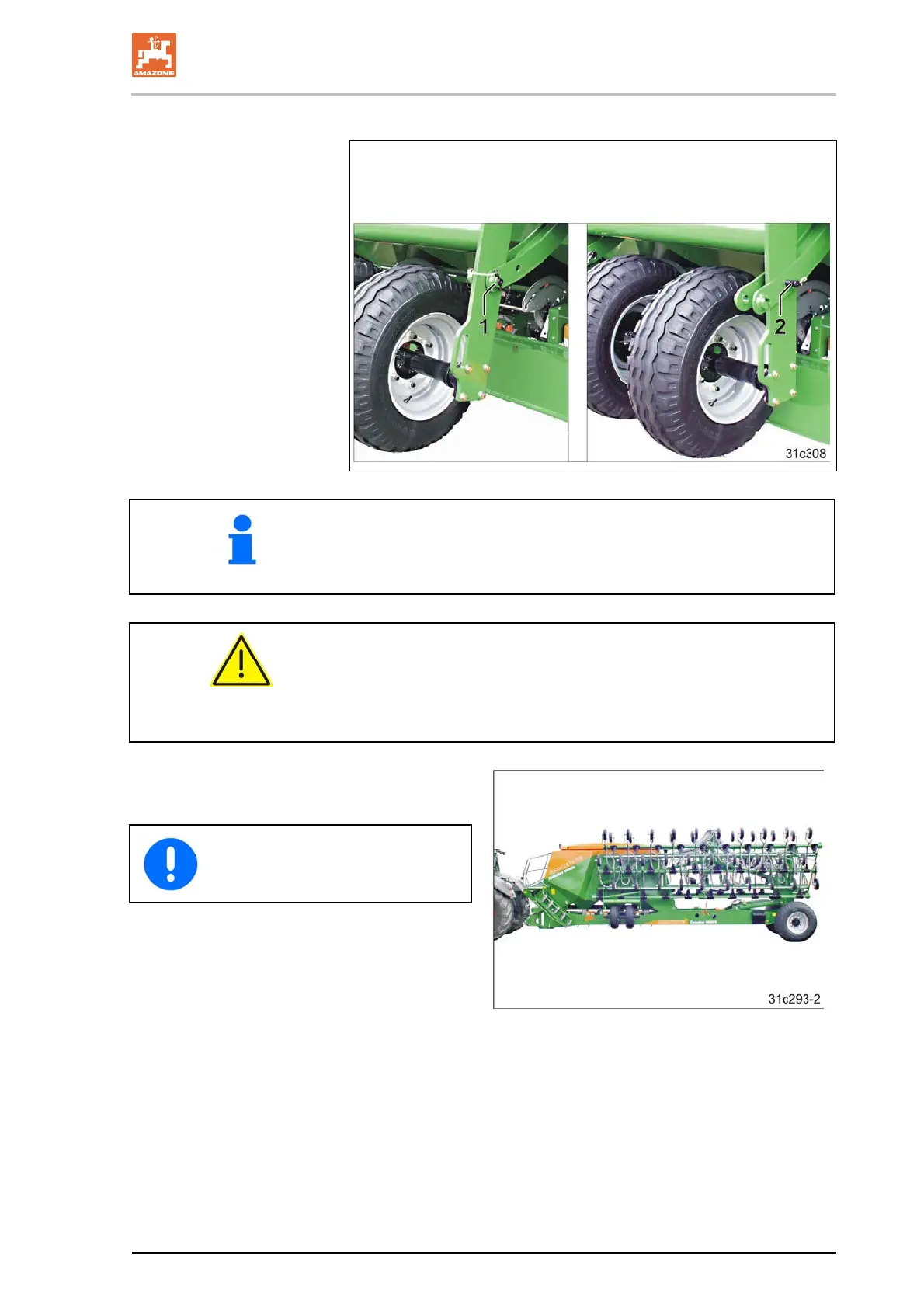

Fig. 170
The transport width is
3.40 m pegged in hole (Fig. 170/1)
3.00 m pegged in hole (Fig. 170/2).
DANGER
Support wheels pegged in working position protrude to the side
in the area of the traffic during transport and put other road
users at risk. Be sure to secure the support wheels properly
before transport on roads.
8. Move the implement into a horizontal
position by actuating the tractor lower links.
Fig. 171
The implement requires sufficient
ground clearance in all driving
situations.
