Use of the implement
154
Condor 12001-C/15001-C BAH0030-4 07.15

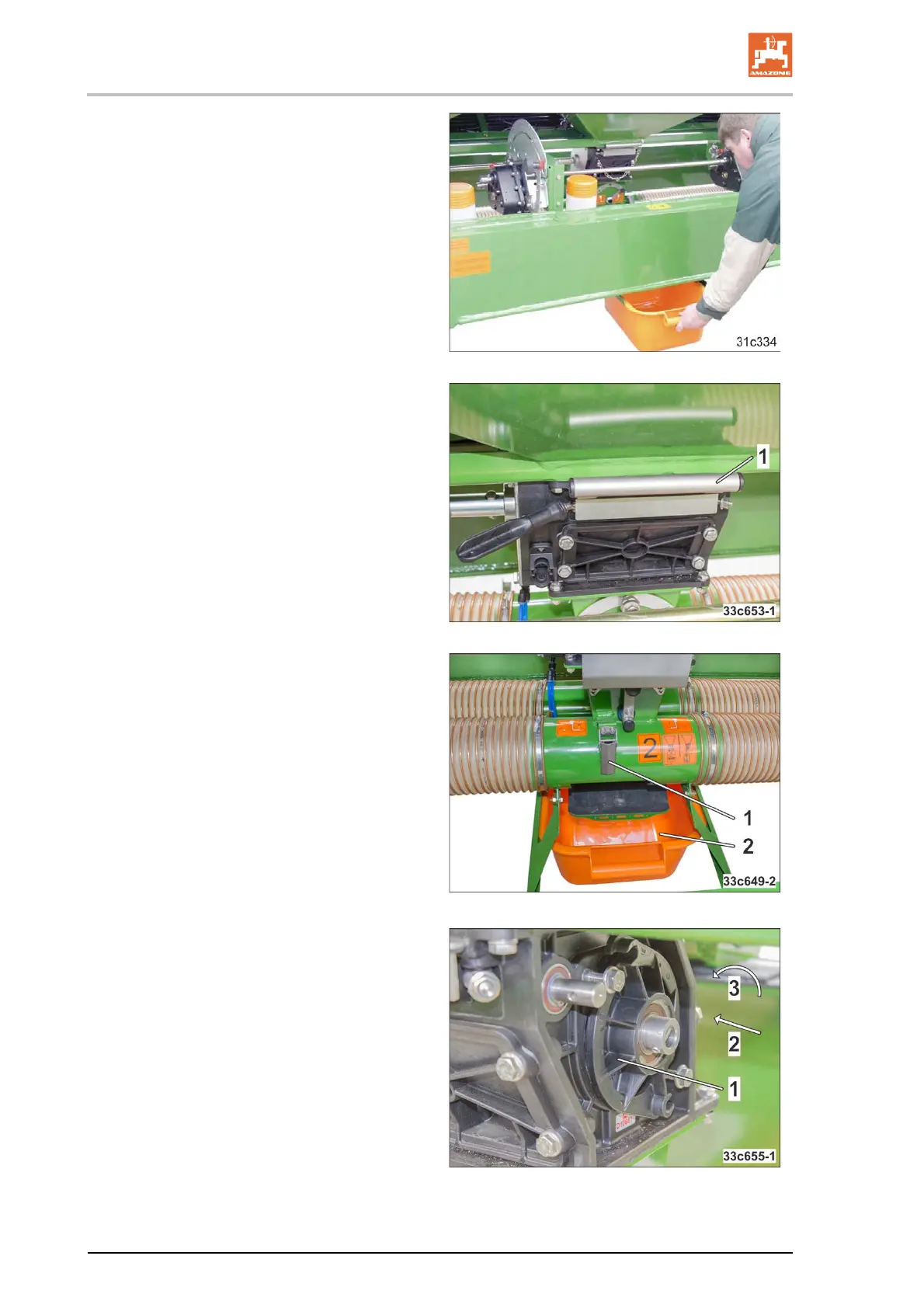

1. Push a calibration trough (Fig. 191) into the
bracket under the metering unit.
Fig. 191
2. Close the opening of the hopper above the
metering unit with the shutter (Fig. 192/1)
(see section "Installing/removing the
metering roller", Seite 110).
Fig. 192
3. Open the die tensioning hooks (Fig. 193/1)
of the rubber mat that closes the opening in
the delivery tube.
 The seed drops into the calibration trough
(Fig. 193/2).
Fig. 193
4. Remove the metering roller (see section
"Installing/removing the metering roller",
Seite 110).
5. Close the housing cover (Fig. 194/1).
6. Pull the shutter (Fig. 194/2) slowly out of the
metering unit.
 The seed drops into the calibration trough.
7. Reassembly occurs in the reverse
sequence.
8. Secure the calibration trough(s) (Fig. 67) on
the transport bracket.
Fig. 194
