Layout and function
62
Condor 12001-C/15001-C BAH0030-4 07.15

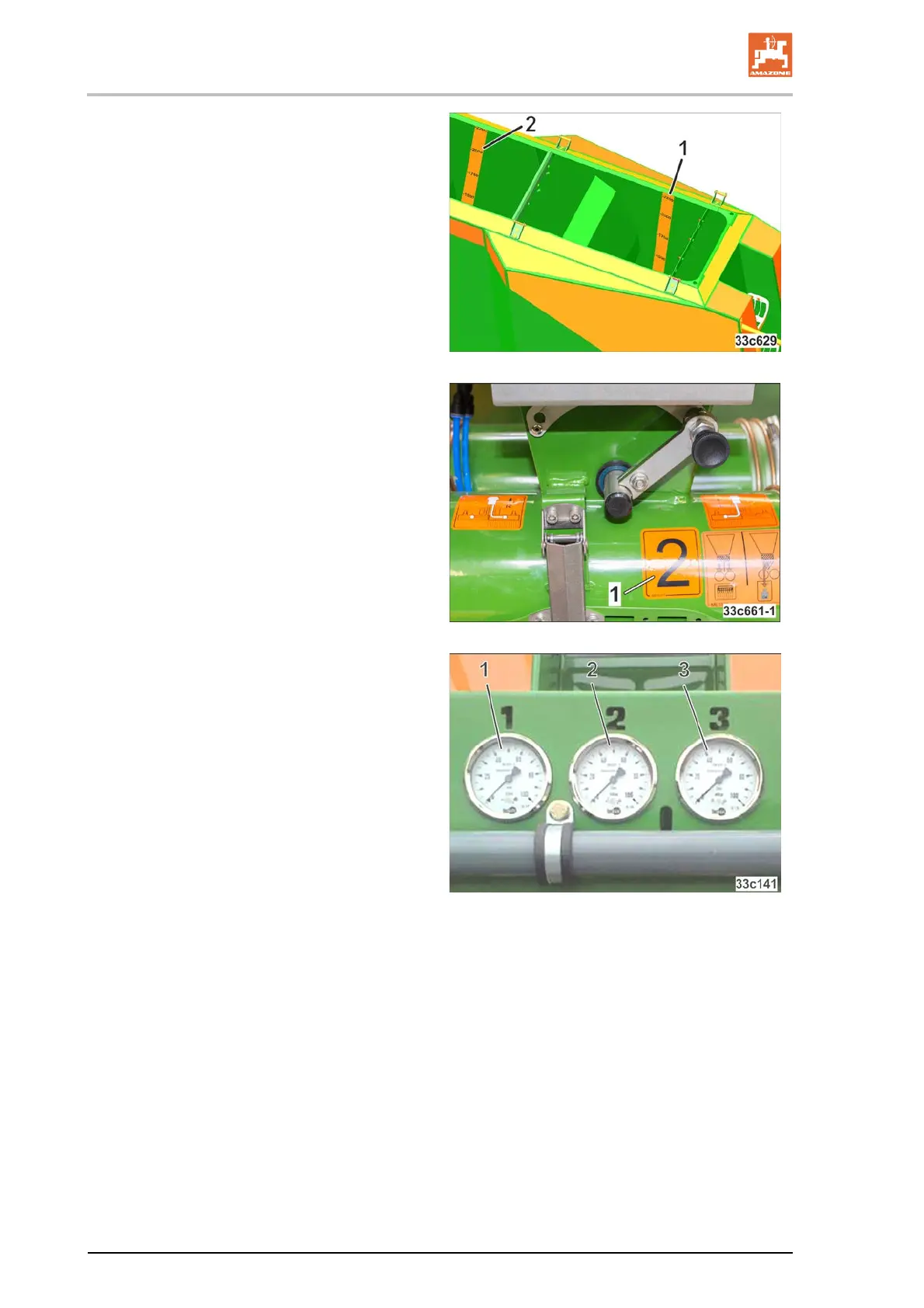

The marks (Fig. 49/1, 2) show the fill levels of the
individual hopper chambers.
Fig. 49
Each hopper chamber is marked with a number
(Fig. 50/1) on the metering unit.
Fig. 50
The pressure gauges (Fig. 51/1-3) show the
pressures of the individual chambers (Fig. 46/1-
3)
At a standstill, pressures between 25 and 35 bar
are reached in the individual chambers.
Fig. 51
