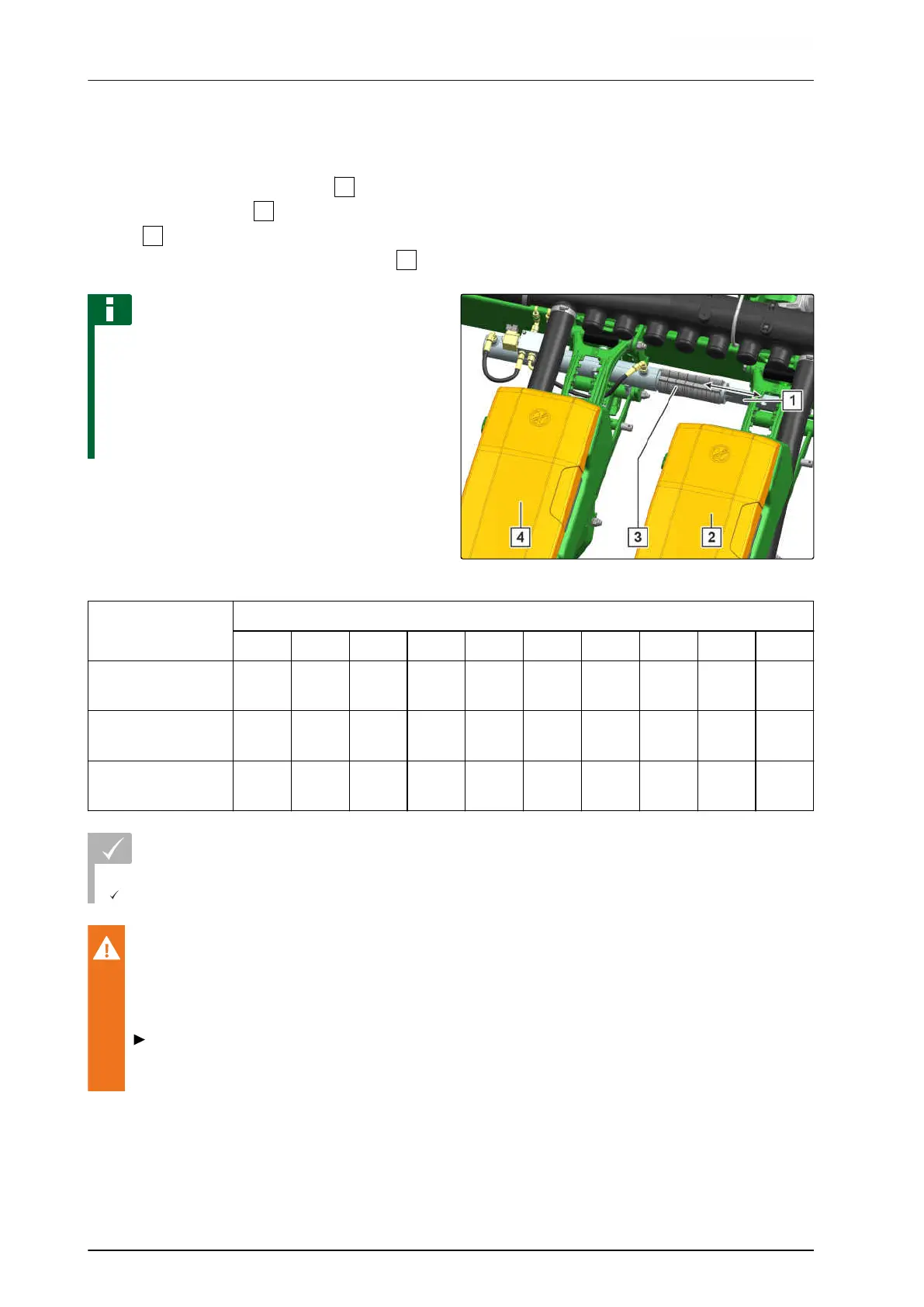

6.4.20 Adjusting the shifted tramline
With a shifted tramline, tramlines are created without
switching off the coulters. The coulter
is pushed
onto the adjacent coulter
with the hydraulic
cylinder
. The shifting distance can be adjusted for
the cultivating implement with spacer elements
.
NOTE
The maximum track width is 2.25 m and the
maximum tyre width is 800 mm.
Tramlines with a track width of 2.25 m and a tyre
width of 800 mm cannot be created. One of the
two parameters needs to be reduced.
CMS-I-00005537
Tramline system
Tramline spacing
13.5 m 18 m 24 m 27 m 30 m 36 m 40.5 m 42 m 48 m 54 m
Symmetrical 8 rows
with 75 cm
X X X X
Asymmetrical 8
rows with 75 cm
X X X
Asymmetrical 9
rows with 75 cm
X X X X
REQUIREMENTS
The fan is running
WARNING
The coulters are hydraulically shifted
The shifting procedure cannot be stopped.
Keep people out of the danger area of the
implement.
CMS-T-00007955-A.1
