Amazone Precea 3000 - Tightening the V-Ribbed Belt; Checking the Top Link Pin and Lower Link Pin

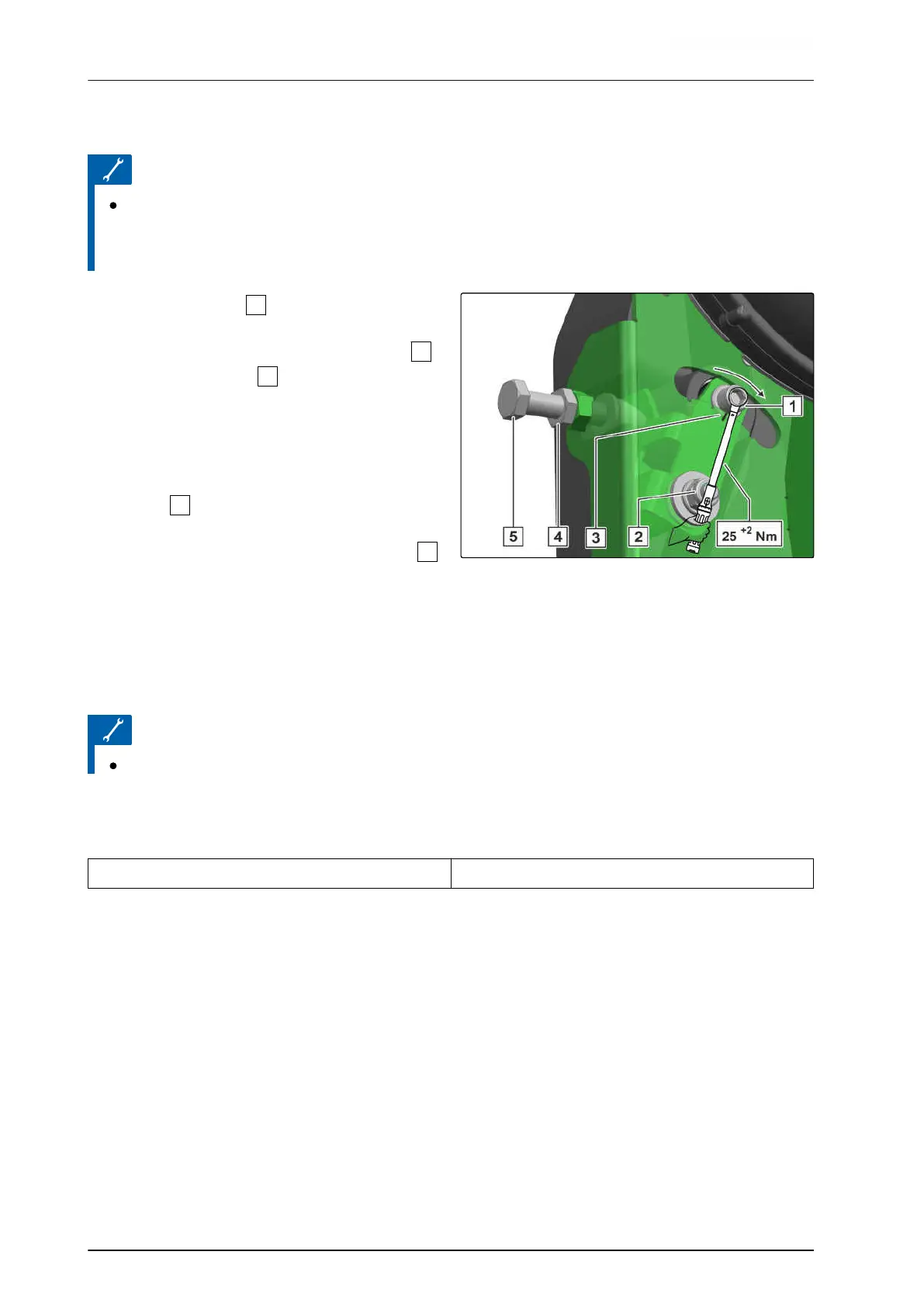

9.1.17 Tightening the V-ribbed belt
INTERVAL
Every 100 operating hours
or
Every 6 months
1. Loosen the lock nut
4
.
2. Put on the torque wrench over the pivot point
2
on the clamping lever
1
.
3. Pre-tension the clamping lever with the clamping
torque.
4. Mark the position of the clamping lever on the
housing
3
.
5. Set the clamping lever with the adjuster screw
5
to the determined position.
6. Tighten the lock nut.
CMS-I-00002903
9.1.18 Checking the top link pin and lower link pin
INTERVAL
daily
1. Check the top link pins and lower link pins for
cracks or broken areas.
Permissible wear 2 mm
2. Replace the pins if there is significant wear.
CMS-T-00003831-B.1
CMS-T-00002330-E.1
