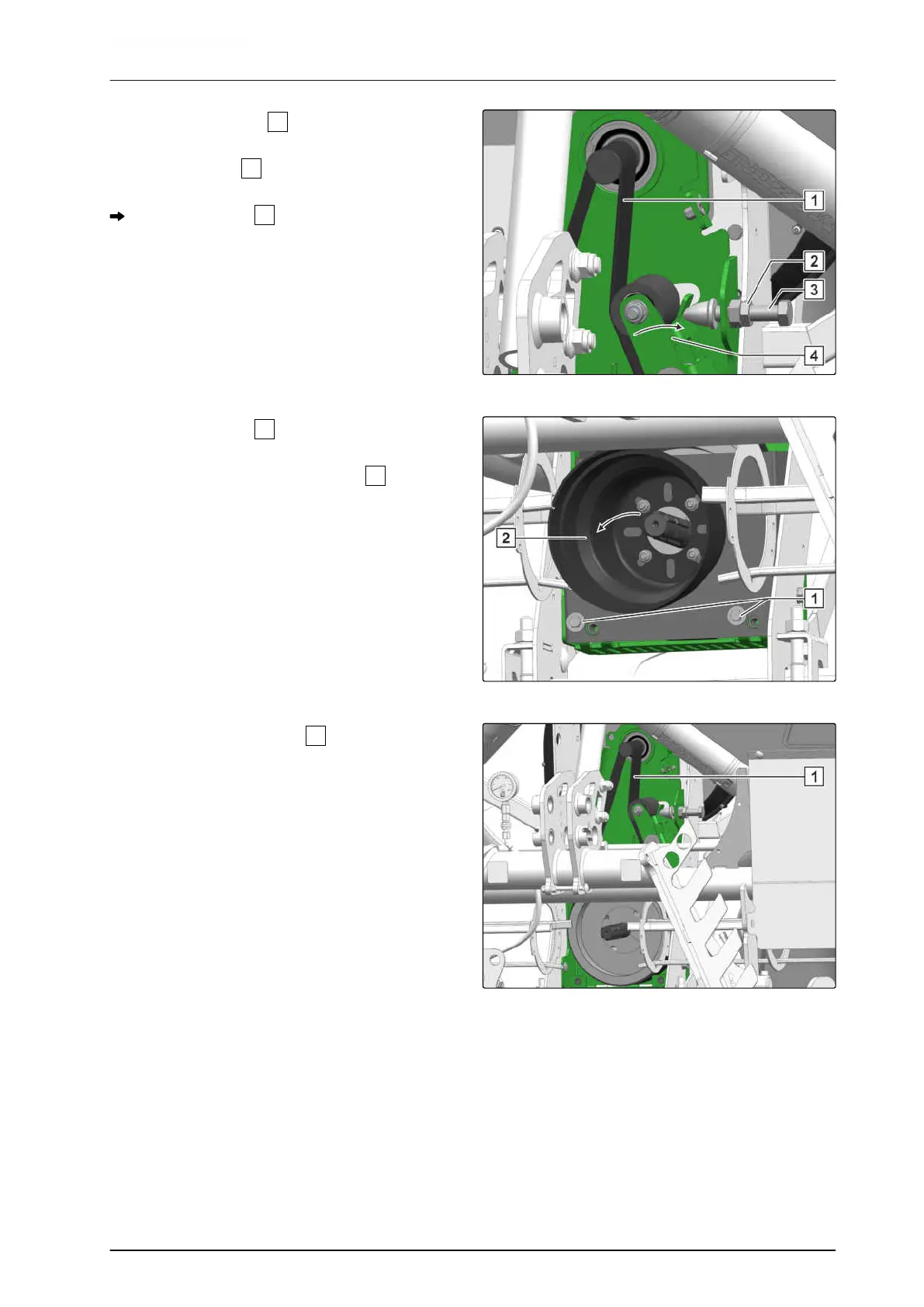

9. Loosen the lock nut
.
10. Loosen the bolt
.
The tension roller
is relieved.
CMS-I-00002769
11. Remove the bolts
.
12. Remove the lower protective cover
.
CMS-I-00002770
13. Replace the V-ribbed belt
.
14. To tighten the V-ribbed belt,
see "Tightening the V-ribbed belt".
15. To check the concentricity,
rotate the drive.
16. Install the lower protective cover.
17. Install the upper protective cover.
18. Install the connecting shaft between the drive
shafts.
CMS-I-00002771
9 | Repairing the machine
Maintaining the machine
MG6660-EN-II | D.1 | 27.09.2021
195
