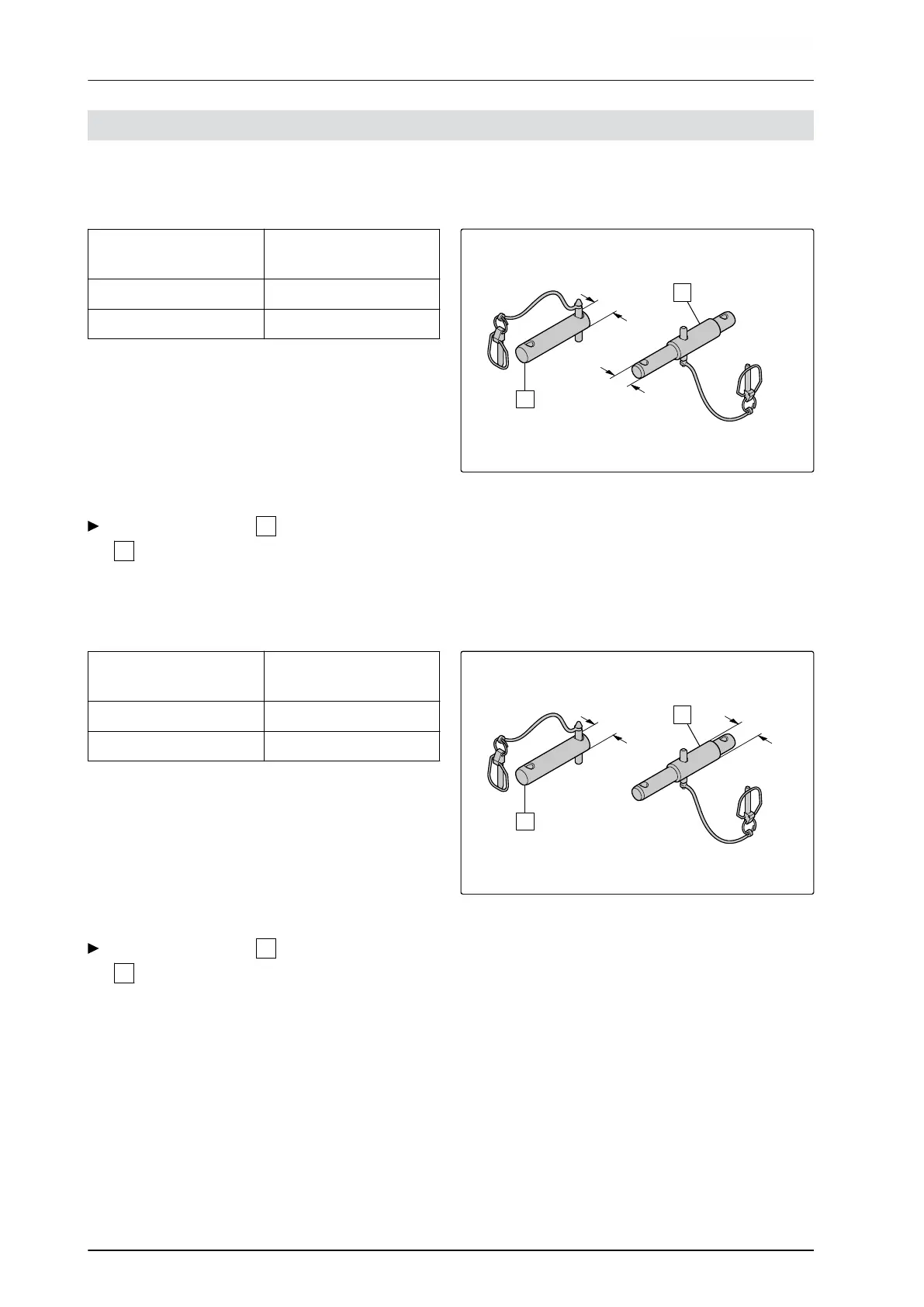

6.2 Adjusting the 3-point mounting frame
6.2.1 Adjusting the 3-point mounting frame for mounting category 2
Mounting category 2
measurements
Diameter
A 25 mm
B 28 mm
A
B
1
2
CMS-I-00001816
Install the top link pin
1
and lower link step pin
2
of mounting category 2.
6.2.2
Adjusting the 3-point mounting frame for mounting category 3
Mounting category 3
measurements
Diameter
A 31.7 mm
B 36.6 mm
A
B
1
2
CMS-I-00001817
Install the top link pin
1
and lower link step pin
2
of mounting category 3.
CMS-T-00002075-A.1
CMS-T-00002076-A.1
CMS-T-00002077-A.1
6 | Preparing the machine
Adjusting the 3-point mounting frame
MG6660-EN-II | D.1 | 27.09.2021
58
