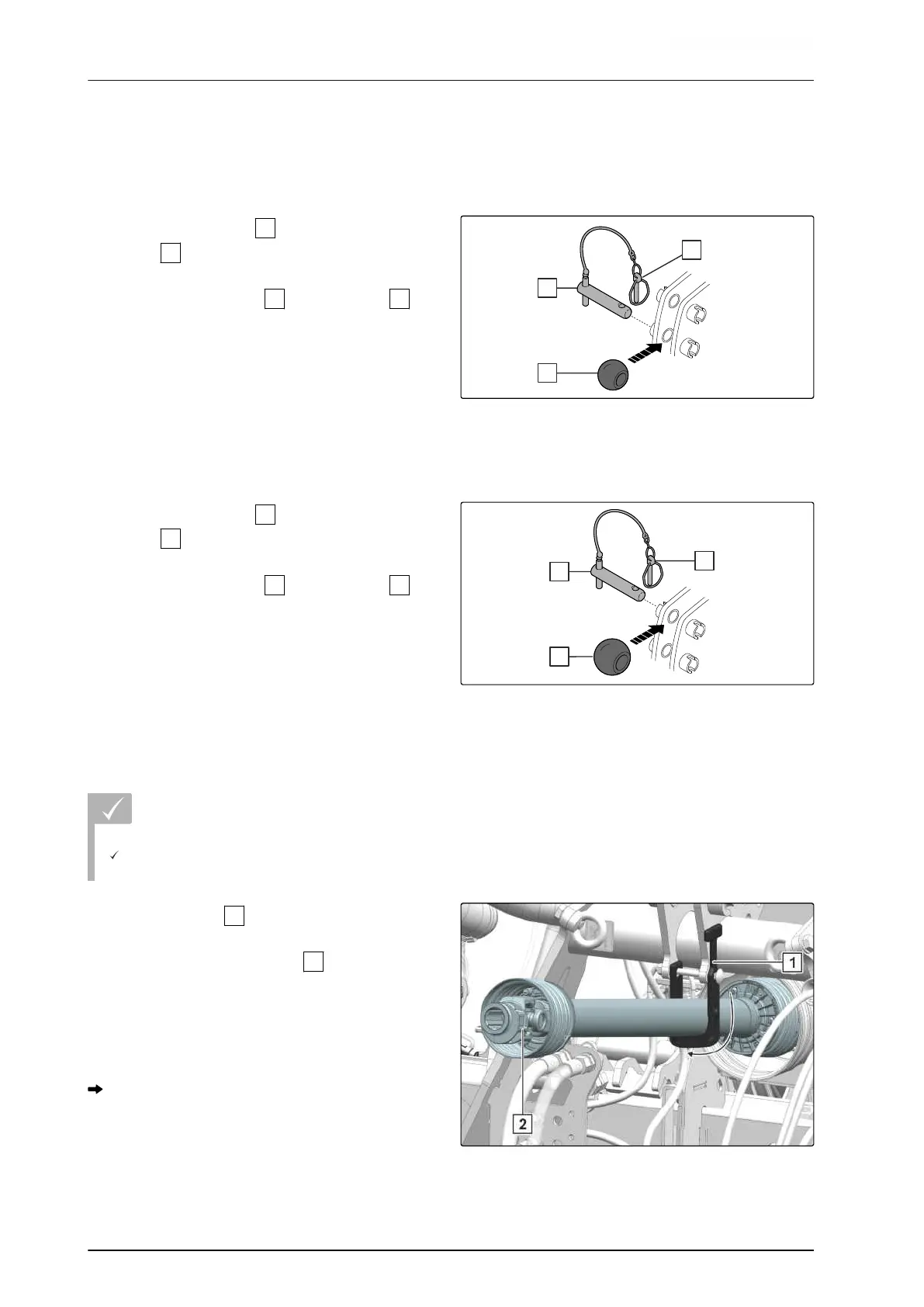

6.3.3 Attaching the top link ball sleeves
6.3.3.1 Attaching the top link ball sleeve for mounting category 2
1. Insert the top link pin
1
together with the ball
sleeve
2
in the bottom holes.
2. Secure the top link pin
1
with a linch pin
3
.
2
3
1
CMS-I-00001871
6.3.3.2 Attaching the top link ball sleeve for mounting category 3
1. Insert the top link pin
1
together with the ball
sleeve
2
in the top holes.
2. Secure the top link pin
1
with a linch pin
3
.
2
3
1
CMS-I-00001870
6.3.4
Coupling the universal joint shaft
REQUIREMENTS
The universal joint shaft was installed
according to the manufacturer specifications
1. Open the holder
1
.
2. Pull back the drawing sleeve
2
on the tractor
side.
3. Push the universal joint shaft onto the tractor PTO
shaft.
The drawing sleeve engages.
CMS-I-00003956
CMS-T-00002087-A.1
CMS-T-00002086-A.1
CMS-T-00002088-A.1
CMS-T-00005462-A.1
6 | Preparing the machine
Coupling the implement
MG6660-EN-II | D.1 | 27.09.2021
