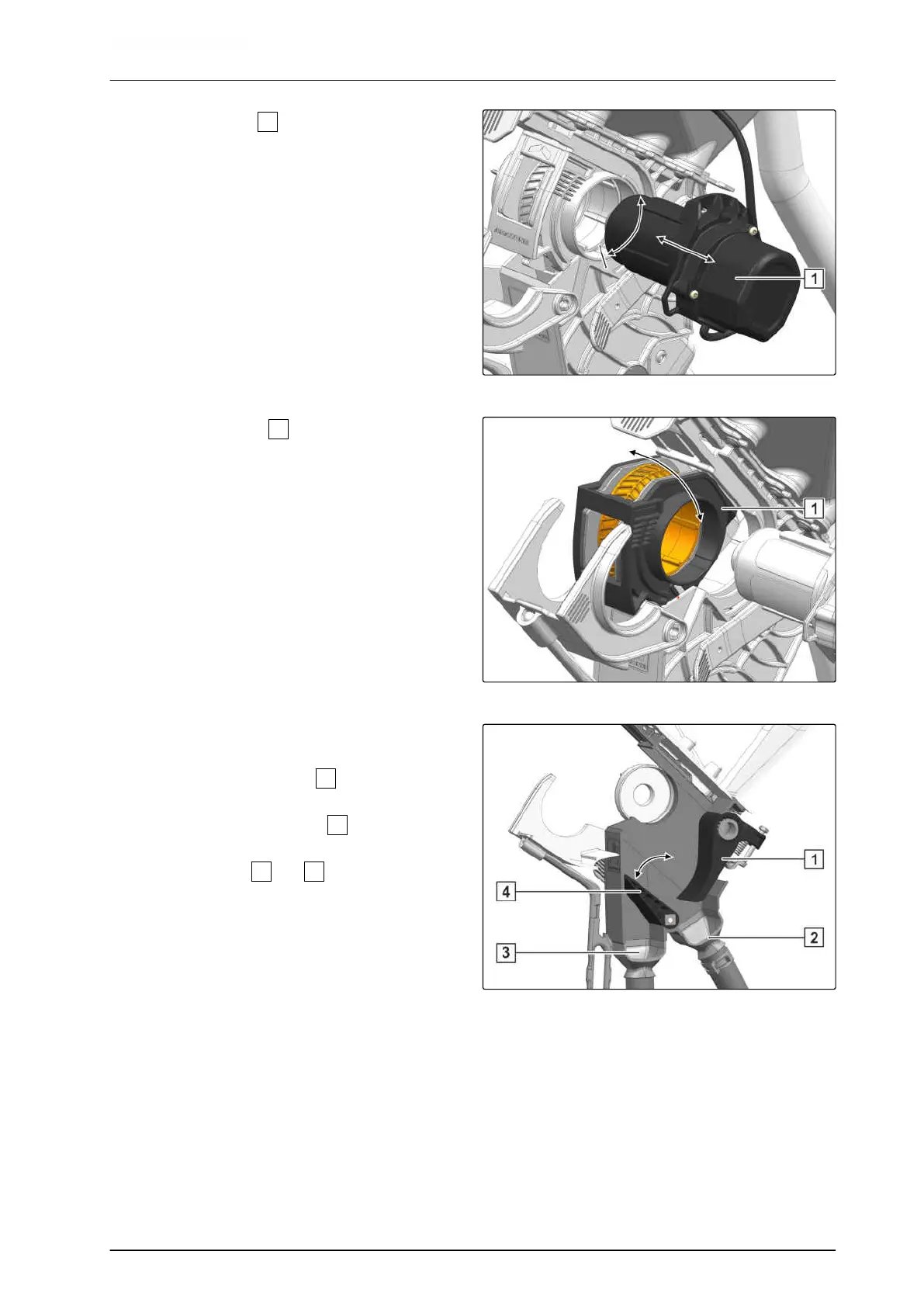

7. Turn the drive unit

counterclockwise.

8. Pull the drive unit out of the metering housing.

CMS-I-00002585

9. Take the roller cage

along with the metering

roller out of the metering housing.

CMS-I-00002584

10. Clean the metering housing

11. Actuate the switchover flap

several times.

12. Actuate the bottom flap lever

several times.

13. Clean the outlets

and

CMS-I-00002577

9 | Repairing the machine

Maintaining the machine

MG6660-EN-II | D.1 | 27.09.2021

205
