Name: Amazone Precea 3000
Brand: Amazone
Rating: 4 (1 reviews)

To Next Page

To Previous Page

CMS-I-00002074

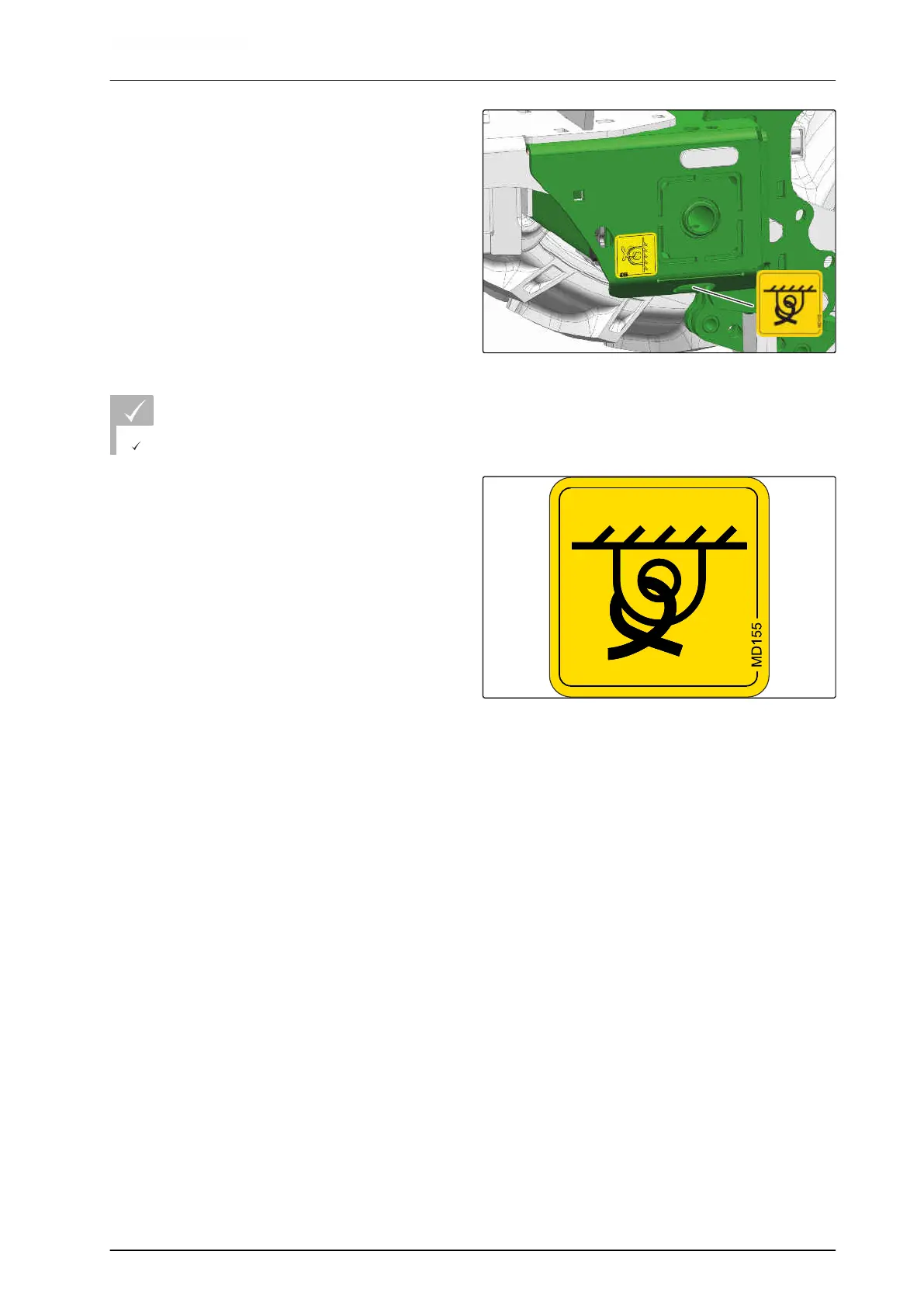

REQUIREMENTS

Implement is folded

1. Only attach the lifting gear at the marked

positions.

2. Secure the implement in accordance with the

regulations to the transport vehicle.

CMS-I-00000450

10 | Transporting the machine

Moving the implement with a transport vehicle

MG6660-EN-II | D.1 | 27.09.2021

237

Table of Contents3
About this Operating Manual7
Diagrams7
Warnings and Signal Words7
Further Instructions7
Instructions8
Lists9
Item Numbers in Figures9
Other Applicable Documents10
Your Opinion Is Important10
Safety and Responsibility11
Basic Safety Instructions11
Meaning of the Operating Manual11
Safe Operating Organisation11
Knowing and Preventing Dangers16
Safe Operation and Handling of the Machine18
Safe Maintenance and Modification21
Safety Routines25
Intended Use28
Product Description29
Implement Overview29
Function of the Implement32
Special Equipment33
Protective Equipment33
Universal Joint Shaft Guard33
Fertiliser Metering Drive34
Warning Symbols35
Position of the Warning Symbols35
Layout of the Warning Symbols37
Description of the Warning Symbols37
Rating Plate on the Implement41
Compressed Air Fan41
Grain Singling Unit41
Layout and Function of the Grain Singling Unit41
Singling Disc42
Pretec Coulter43
Seeding Unit43
Depth Control Wheels44
Furrow Former and Catch Roller44
Fertiliser Hopper44
Fertec Twin Fertiliser Coulter45
Filling Auger46
Micropellet Spreader47
Lighting49
Lighting and Identification for Road Travel49
Work Lights50
Hopper Interior Lighting50
Electronic Monitoring50
Radar Sensor50
Low Level Sensors51
Electronic Remote Scraper Bar Adjustment51
Threaded Cartridge52
Calibration Kit52
Twinterminal52
Technical Data53
Serial Number53
Dimensions53
Permissible Total Weight54
Metering Unit54
Seed Metering Unit54
Fertiliser Metering Unit55
Micropellet Metering Unit56
Coulters56
Pretec Coulter56
Fertec Twin56
Row Spacings57
Mounting Category58
Working Speed58
Performance Characteristics of the Tractor58
Noise Development Data59
Drivable Slope Inclination59
Lubricants60
Gear Oil60
Chain Oil60
Preparing the Machine61
Calculating the Required Tractor61
Characteristics61
Adjusting the 3-Point Mounting64
Adjusting the 3-Point Mounting Frame for Mounting Category64
Coupling the Implement65
Coupling the Supply Lines to the65
Hose Package65
Attaching the Lower Link Ball Sleeves65
Attaching the Top Link Ball Sleeves66
Coupling the Universal Joint Shaft66
Coupling the Hydraulic Hose Lines67
Coupling the ISOBUS Line69
Coupling the Power Supply69
Coupling the 3-Point Mounting Frame70
Raising the Jacks70
Operation Without Front Hopper71
Preparing the Implement for Operation72
Adjusting the Working Position Sensor72
Filling the Seed Hopper72
Filling the Fertiliser Hopper74
Preparing the Micropellet Spreader for Operation76
Determining the Setting Parameters82
Adjusting the Fan Speed84
Preparing the Track Marker for Operation86
Preparing the Wheel Mark Eradicator for Operation94
Setting up the Speed Sensor on the Implement96
Using the Multi-Placement Tester96
Adjusting the Grain Singling Unit98
Changing the Seed Spread Rate107
Adjusting the Pretec Coulter120
Creating Tramlines134
Calibrating the Electrically Driven Fertiliser Metering Unit135
Calibrating the Mechanically Driven Fertiliser Metering138
Changing the Application Rate for Liquid Fertiliser144
Adjusting the Frame Ballasting146
Adjusting the Placement Depth on the Coupled Fertiliser Coulter147
Adjusting the Shifted Tramline148
Using the Loading Board149
Adjusting the Filling Auger150
Workshop Work151
Preparing the Machine for Road Travel167
Folding in the Track Marker167
Lifting the Implement169
Locking the Tractor Control Units169
Calculating the Permissible Payload170
Using the Machine171
Using the Implement171
Turning on the Headlands172
Checking the Placement Depth172
Using the Shifted Tramline172
Parking the Machine174
Emptying the Fertiliser Hopper174
Emptying the Seed Hopper through the Singling Disc174
Emptying the Seed Hopper through the Residual Quantity Flap177
Emptying the Fertiliser Metering178
Unit178
Emptying the Micropellet Hopper179
Relieving the Hole Covering Rollers181
Parking the Wheel Mark Eradicator182
Parking the Pretec Coulter183
Putting down the Jacks184
Disconnecting the Supply Lines185
From the Hose Package185
Uncoupling the ISOBUS Line185
Disconnecting the Hydraulic186
Uncoupling the Power Supply187
Uncoupling the 3-Point Mounting187
Uncoupling the Universal Joint Shaft188
Conserving the Drive Shaft188
Repairing the Machine189
Maintaining the Machine189
Maintenance Schedule189
Checking and Replacing the Cutting Discs on the Pretec Coulter191
Adjusting the Cutting Disc Distance on the Pretec Coulter192
Adjusting the Cutting Disc Drive on the Pretec Coulter193
Checking and Replacing the Closer Discs on the Pretec Coulter194
Checking and Replacing the Rigid194
Cutting Disc on the Pretec Coulter194
Checking and Replacing the Cutting195
Disc on the Fertec Twin Coulter195
Adjusting the Cutting Disc Distance on the Fertec Twin Coulter196
Checking and Replacing the Inner196
Scraper on the Fertec Twin Coulter196
Checking the Wheel Bolt Tightening Torque197
Torque197
After Initial Operation197
Checking the Tightening Torque for the Radar Sensor Bolts198
Checking the Frame Connection Tightening Torque198
Checking the Coulter Connection Tightening Torque199
Checking the Running Gear Connection Tightening Torque199
Checking the Tyre Inflation Pressure200
Checking the V-Ribbed Belt200
Tightening the V-Ribbed Belt202
Checking the Top Link Pin and Lower Link Pin202
Checking the Hydraulic Hose Lines203
Cleaning the Fan Rotor203
Every 10 Operating Hours / Daily203
Cleaning the Cyclone Separator204
Cleaning the Suction Basket205
Cleaning the Filling Auger206
Cleaning the Fertiliser Hopper207
Cleaning the Fertiliser Metering Unit209
Cleaning the Micropellet Metering Unit210
Every 50 Operating Hours / Weekly210
Adjusting the Micropellet Metering Unit Bottom Flap212
Clean the Singling Unit213
Every 50 Operating Hours / as Required213
Cleaning the Opto-Sensor214
Cleaning the Distributor Head219
Checking the Wheel Mark Eradicator Coulter220
Coulter220
Checking the Gear Oil Level221
Refilling the Gear Oil221
Lubricating the Machine222
Overview of Lubrication Points223
Lubricating the Roller Chains224
Lubricating the Roller Chain in the Leading Wheel Drive224
Lubricating the Roller Chain in the Interchangeable Wheel Gear226
Lubricating the Roller Chain in the Trailing Wheel Drive227
Lubricating the Roller Chain on the Mechanical Metering Drive229
Lubricating the Roller Chain on the Central Fertiliser Metering Drive230
Lubricating the Roller Chain on the Electric Agitator Shaft Drive231
Eliminating Faults232
Cleaning the Implement239
Transporting the Machine240
Loading the Implement with a Crane240
Moving the Implement with a Transport Vehicle242
Appendix244
Bolt Tightening Torques244
Other Applicable Documents245
Directories246
Glossary246
Index247
