Andor Technology iKon-L User Manual

CALIBRATION
iKon-L SECTION 8
Page 137
Rather than position the cross-hair by clicking a point, you may choose to move the cross-hair left or right using
the horizontal scroll bar on the Manual X-Calibration dialog box.
• Click the Single Scroll Arrows at either end of the scroll bar to move the cross-hair by one pixel at a
time.
• Click the Double Scroll Arrows to move the cursor from peak to peak (i.e. conduct a Peak Search) in
accordance with the sensitivity level you have set using the Display Preferences dialog box.

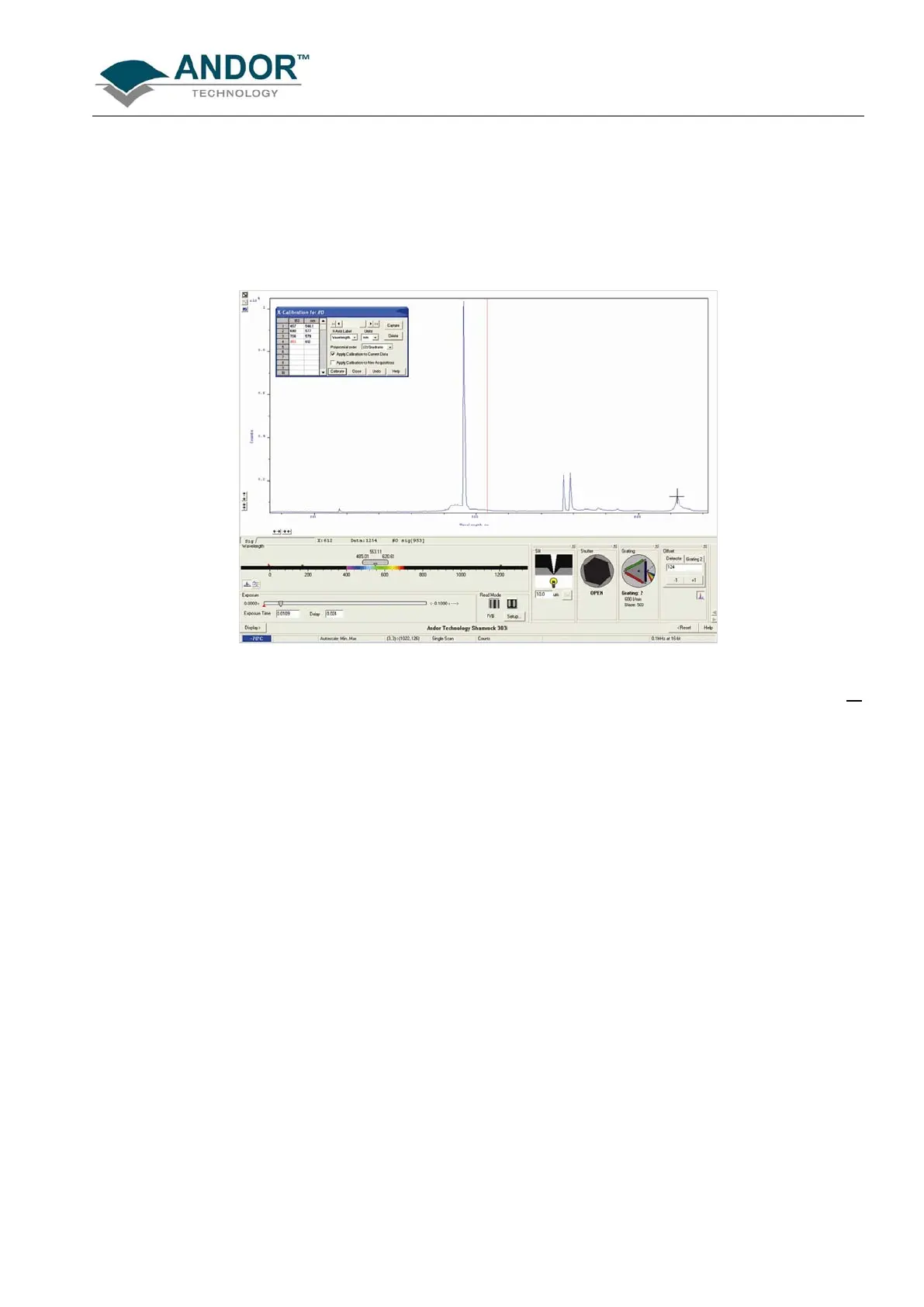

Figure 16: Example of calibration using an Andor Shamrock
NOTE: In 2D display mode, you can also perform a Peak Search via the keyboard by pressing Ctrl

or
Ctrl

.
