ACQUIRING DATA
iKon-L SECTION 5
Page 69

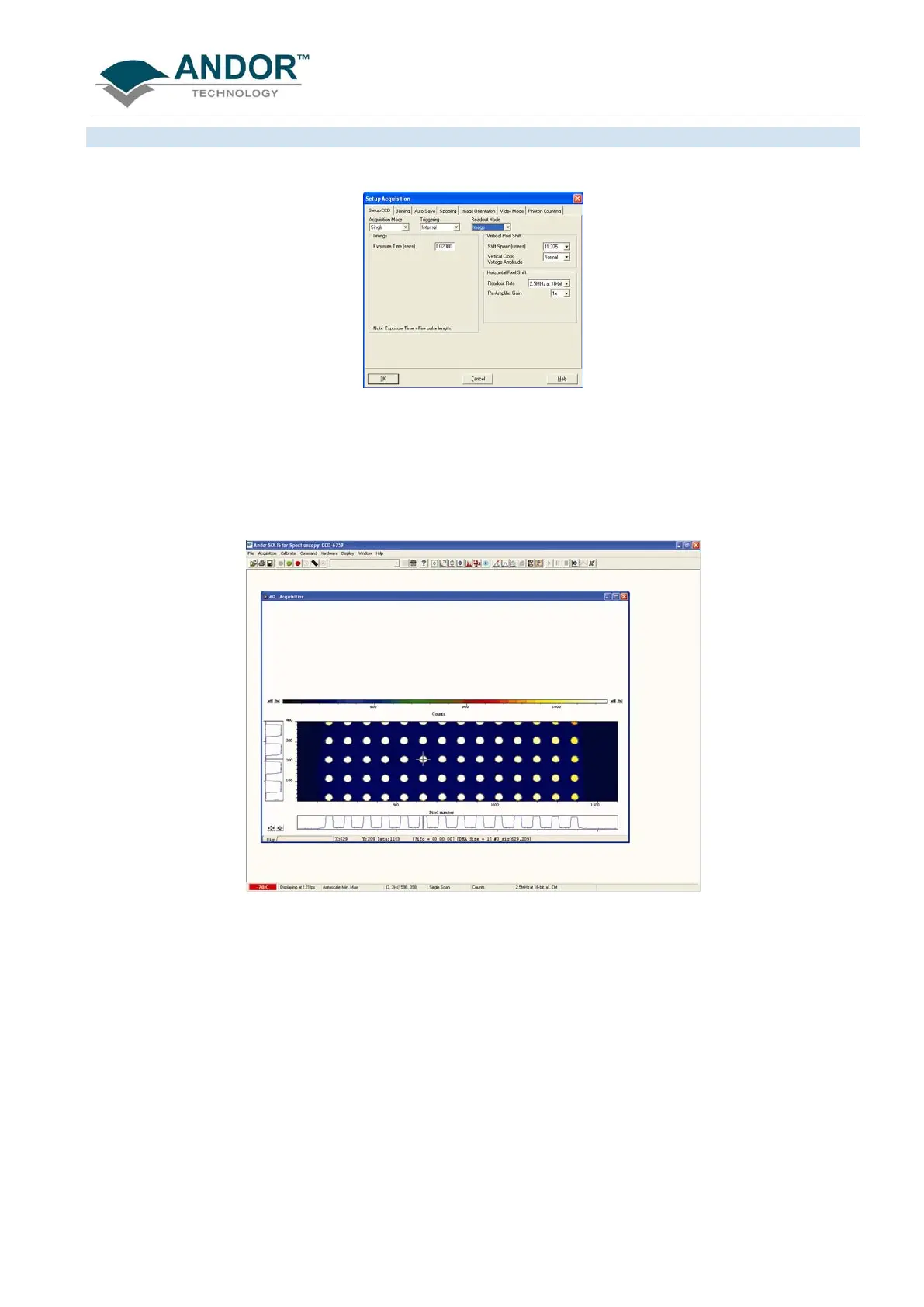

When the Image option from the drop-down menu is selected, the dialog box changes, e.g.:
The user can then to set and control various Binning Patterns and define Sub Images of the iKon-L CCD. By
default, taking an Acquisition supplies you with a count from each pixel on the CCD, in effect allowing you to
take a picture of the light pattern falling on the pixel matrix of the CCD. This default is referred to as a Full
Resolution Image. The image may be viewed in grayscale or false color, or it may be displayed as 2D or 3D
traces, e.g. (false color):
