3.2 - MAIN WINDOW BUTTONS
The Main Window is your ‘entry point’ to the system. The menu options that you select from either execute
functions directly, or launch further windows/dialog boxes that let you select the functionality you require. Some
menu options on the Main Window are also represented as easy-to-use radio buttons, as shown in Table 3
below.

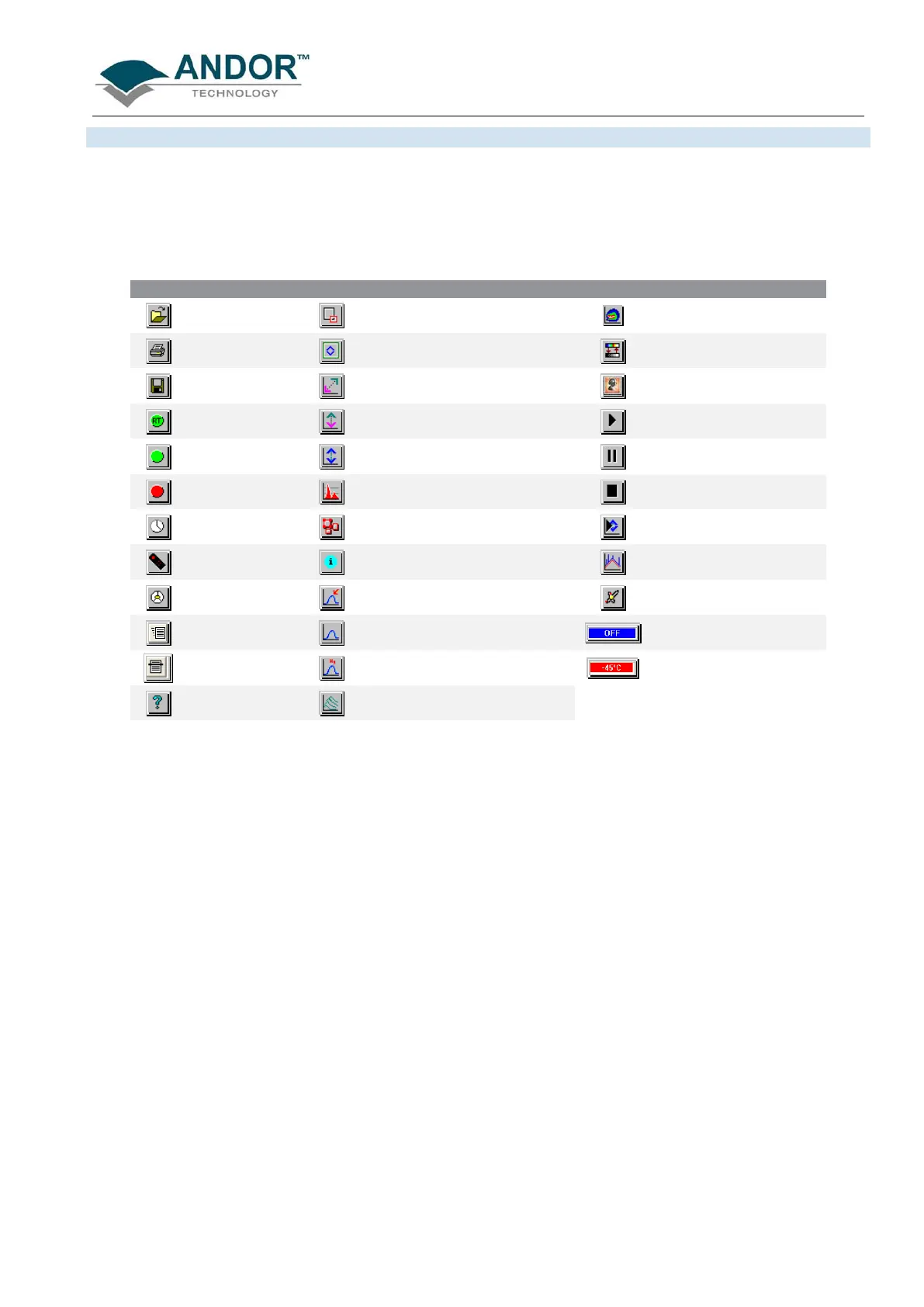

Table 2: Main Window buttons
ICON TITLE ICON TITLE ICON TITLE
Open Select Subimage Area Image display mode
Print Select Autoscale Area Change False Color Palette
Save Reset Time Stamp
Real Time Rescale Play
Take Signal Acquisition Autoscale #0 Pause
Abort Acquisition Data Histogram Stop
Setup Acquisition Region Of Interest (ROI) Playback Autoscale Off
Run-Time control File Information Baseline Correction
Shutter 2D display mode with Peak Labels Periodic Table
Run Program 2D display mode Temperature Control (Off)
Command Line Chemical Labels Temperature Control (On)
Help 3D display mode
NOTE: Some menu titles and buttons appear on the main window only under certain circumstances as
shown on the next page.
