DISPLAYING DATA
iKon-L SECTION 6
Page 97

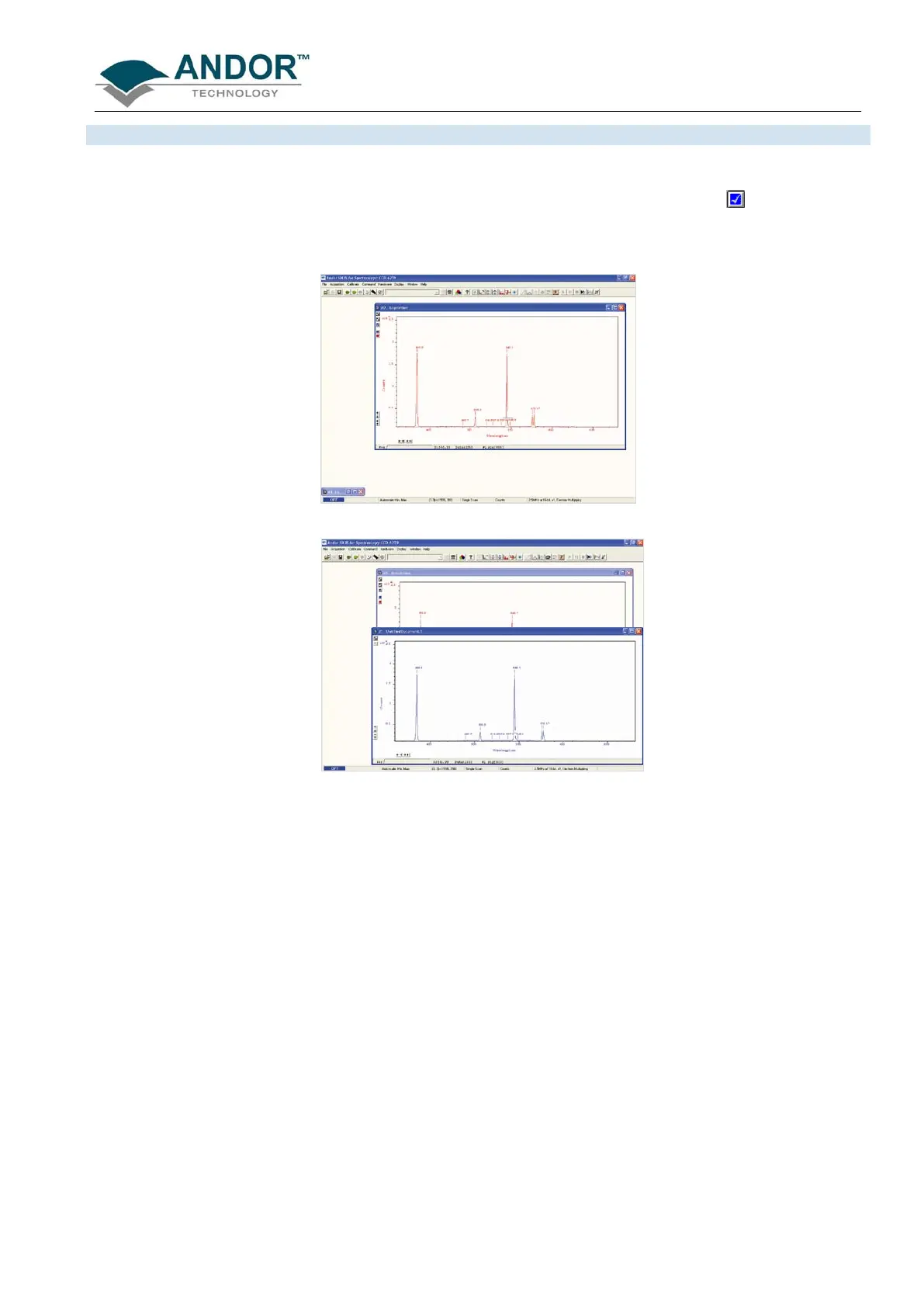

6.7.5.1 - Overlay and Keep
The Overlay and Keep feature is used only with ‘live’ data acquired into the #0 Acquisition Window. If you have
just acquired data that you think you might want to compare with subsequent data, click the
button. In the #0
Acquisition window, the live trace will appear in blue but overlaid with a copy in red and the new data window
containing the selected data will be shown minimized at the bottom of the screen, e.g.:
You can display the #1 data window again by clicking on the minimized window, e.g.:
If required, you can then save this new data window to file for subsequent analysis.
