1.6.2 - Power Supply Units (PSU)
1.6.2.1 - PS40
The PS40 is the main power supply for the camera. There is 1x input and it is rated at 24V dc, which can be
supplied from either the PS-29 (see next page) or the users own supply. The output is via a dedicated 16-pin
cable which connects into the camera as shown in figure 4 below.

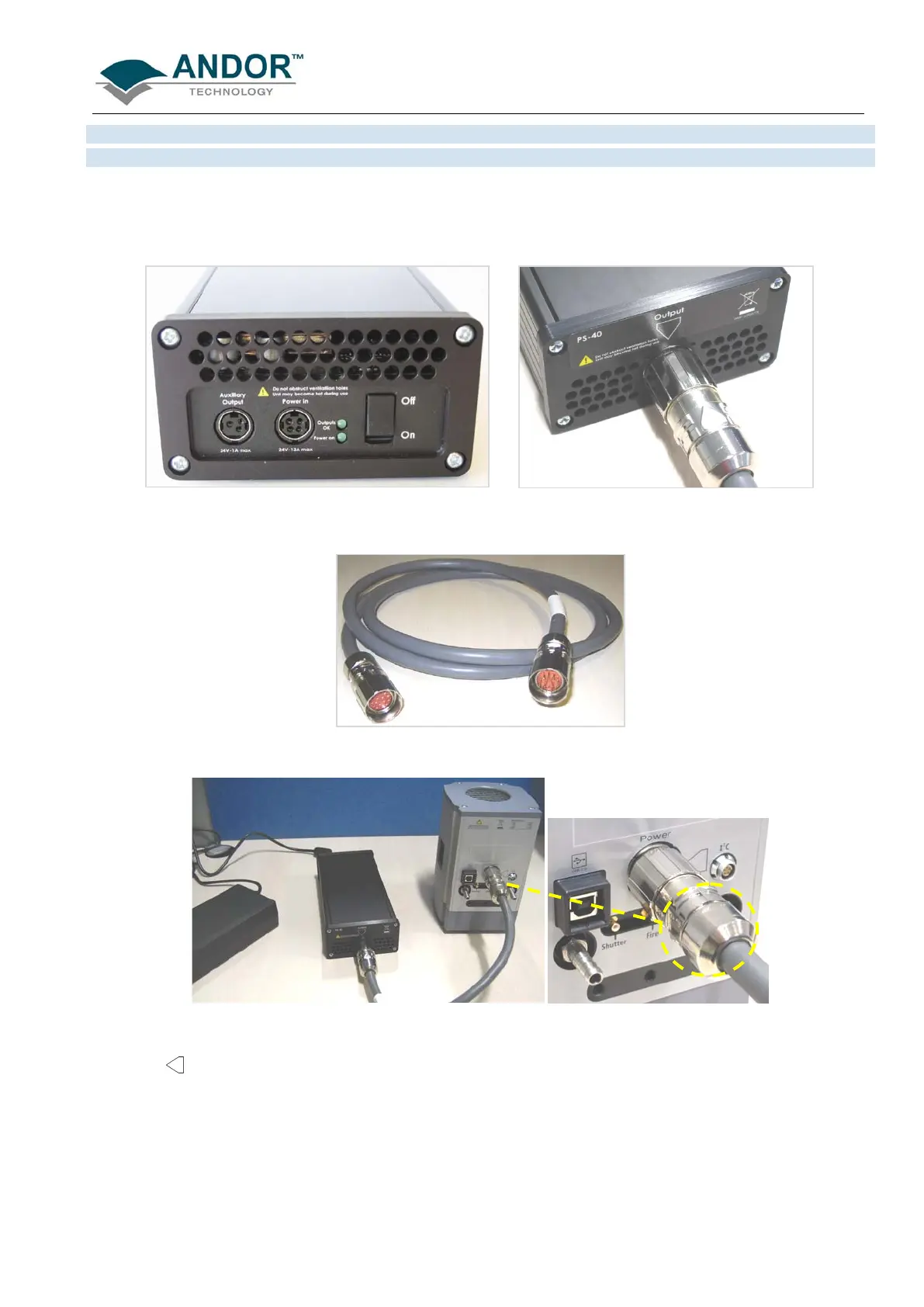

Figure 2: PS40 inputs
Figure 3: PS40 output
Figure 4: Power Cable
Figure 5: PS30 connected via Power Cable PS40 to camera
NOTE: The
symbols on the power cable, the PS40 & the camera must be aligned in order for the connection to be made
correctly. Also to avoid damage to the camera, ensure that the system is powered down before removing or inserting any power
cables.
