DISPLAYING DATA
iKon-L SECTION 6
Page 87
6.4 - AXIS SETUP

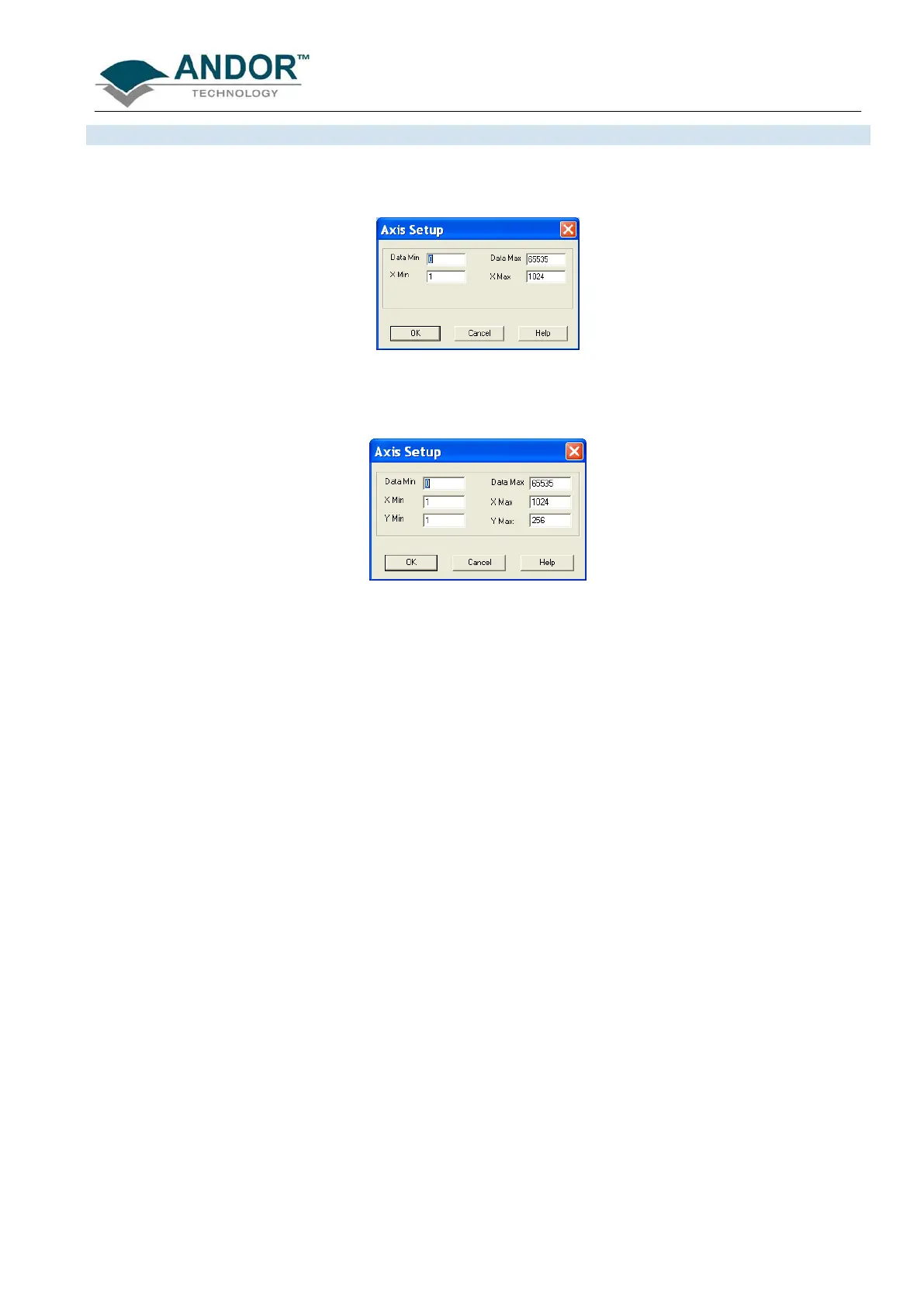

When you are in 2D or 3D display mode and the Axis Setup option on the Display menu is selected, the Axis
Setup dialog box opens as shown:
The minimum & maximum values you wish to appear on the x- and data-axes (the horizontal and vertical
display axes respectively) of your data window can be entered in the text boxes. If you select Axis Setup while
you are viewing data in Image display Mode, the Axis Setup dialog box opens as shown:
You can now also enter, in the text boxes, minimum & maximum values for the y-axis (the vertical display axis)
of your data window. In a full resolution image, data are represented as a color or a grayscale tone. You can
now enter minimum & maximum x- and y- values of your choice, provided those values (when converted to
pixels) do not exceed the width or height of the CCD-chip. However, if you have selected Always Maintain
Aspect Ratio in Preferences, the system may have to resize the plotting regionin which the image appears:
the plotting region then generally occupies less of the available window space, but the aspect ratio is
maintained. NOTE: If you want the system to use the maximum available window space, either resize the
data window or click the Reset button.
