DISPLAYING DATA
iKon-L SECTION 6
Page 94
The ability to Overlay data traces is useful if you wish to compare several traces on the same axes. You can
display up to nine 2D traces simultaneously in the same data window. The data window in which you intend to
display the overlaid traces must be in 2D display mode. Only the data which were originally in that data window
can be saved or modified when the data window is active. You cannot, for instance, use the data window to
calibrate traces that have been added as overlays. The data window from which the 2D overlays are taken can
be in any display mode. NOTE: The images for Overlay are taken from an Andor Newton camera, but the
principle is exactly the same.

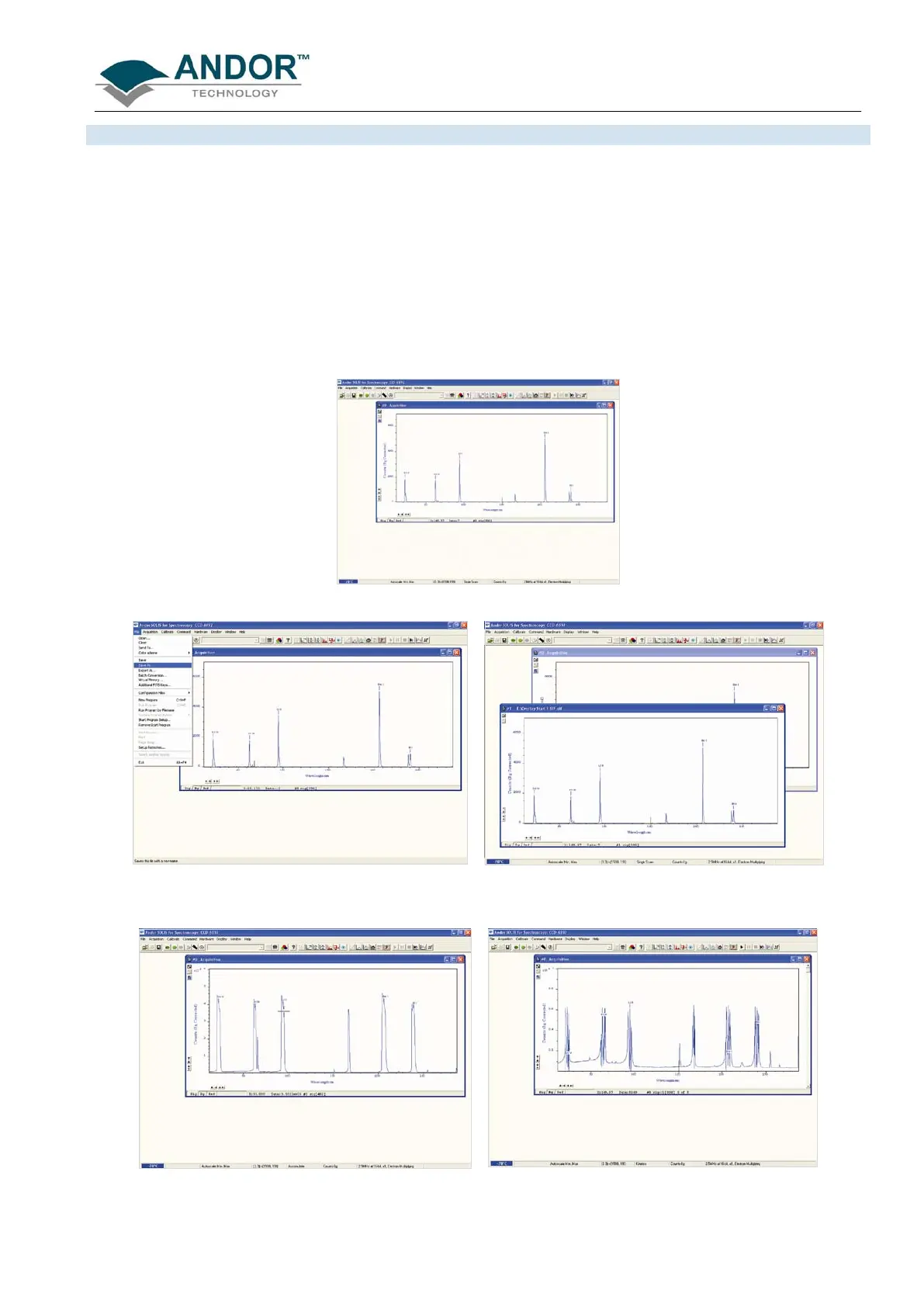

• To add an overlay, first obtain a live signal, e.g.:
• Then save the image as a SIF file, e.g.:
• Take some further acquisitions (this is normally done with different parameters set) and save these as
SIF files again. The examples below show the same source as above but acquired in different modes:
