Chapter 3 — Vector Network Analyzer 3-6 VNA Measurements - Return Loss/VSWR
MS20xxA VNA Master UG 10580-00166 Rev. C 3-13
9. Press the Measurement function hard key and select the VSWR soft key to view the match
in VSWR (Field menu), or select the
S11 Reflection | VSWR soft keys (VNA menu).
Figure 3-6 is displaying the Measurement menu of the Field menu setting.

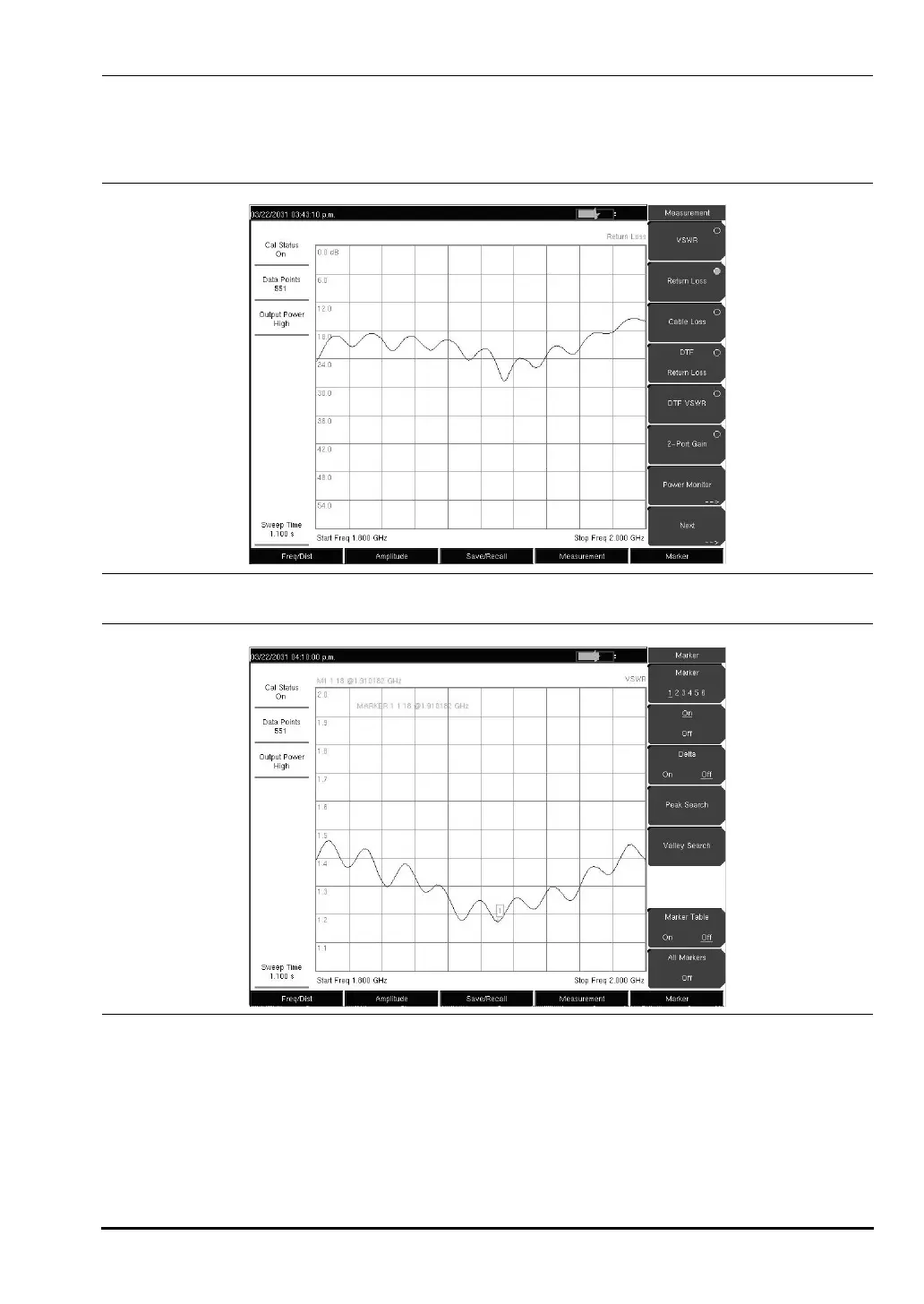

Figure 3-6. Return Loss Measurement, Antenna System (Field Measurement Menu Shown)
Figure 3-7. VSWR Measurement, Antenna System (Field Measurement Menu Shown)
10580-00166C.book Page 13 Thursday, February 21, 2008 12:52 PM
