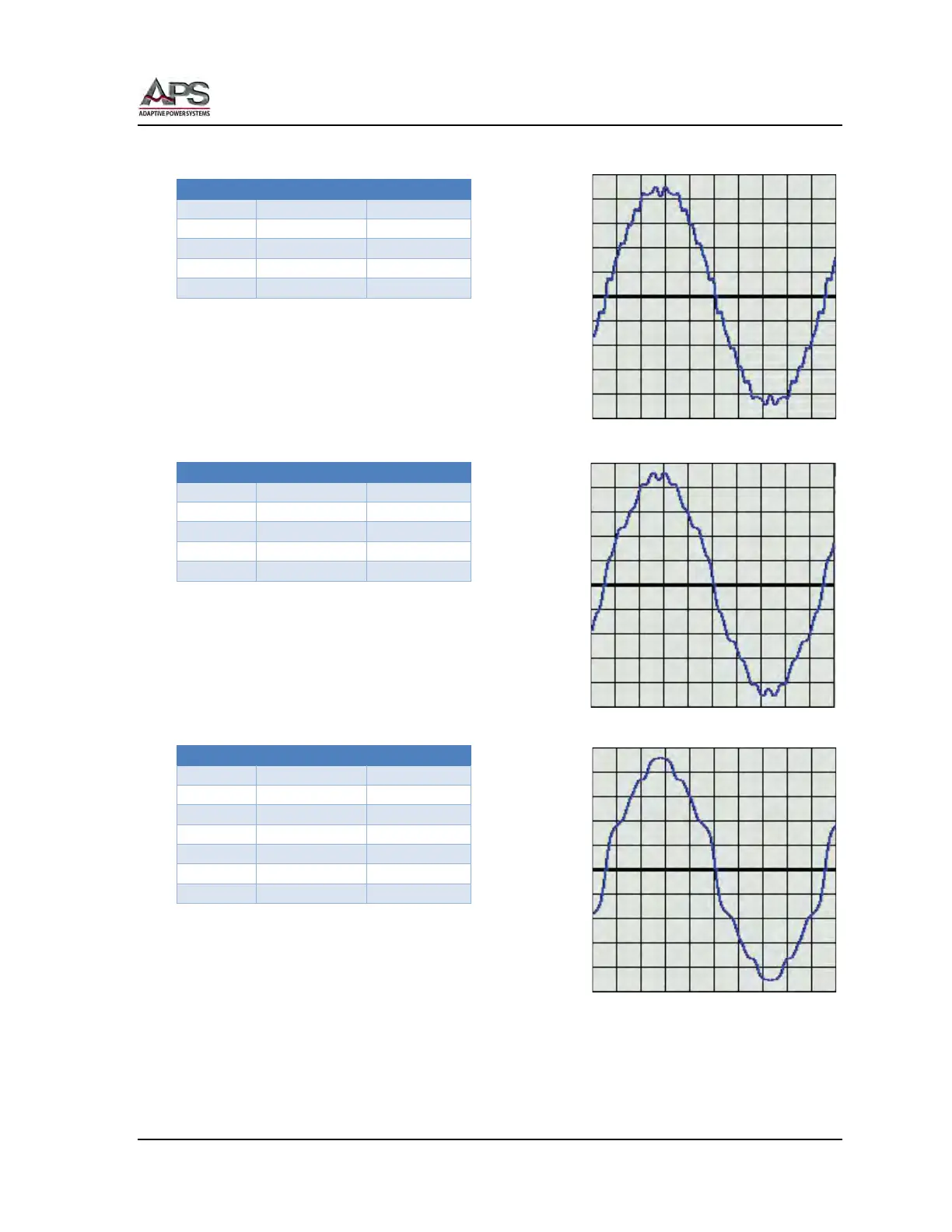

12.2.5 FIXED Waveform No 4
Harmonic
% Ampl
Phase
3
1.00
0
5
2.75
0
7
1.35
0
9
2.25
0
11
1.45
0
12.2.6 FIXED Waveform No 5
Harmonic
% Ampl
Phase
3
1.60
0
5
4.17
0
7
3.40
0
15
1.02
0
19
2.92
0
12.2.7 FIXED Waveform No 6
Harmonic
% Ampl
Phase
3
2.17
0
5
5.59
0
7
2.79
0
9
4.58
0
11
2.92
0
15
1.35
0
21
0.99
0
