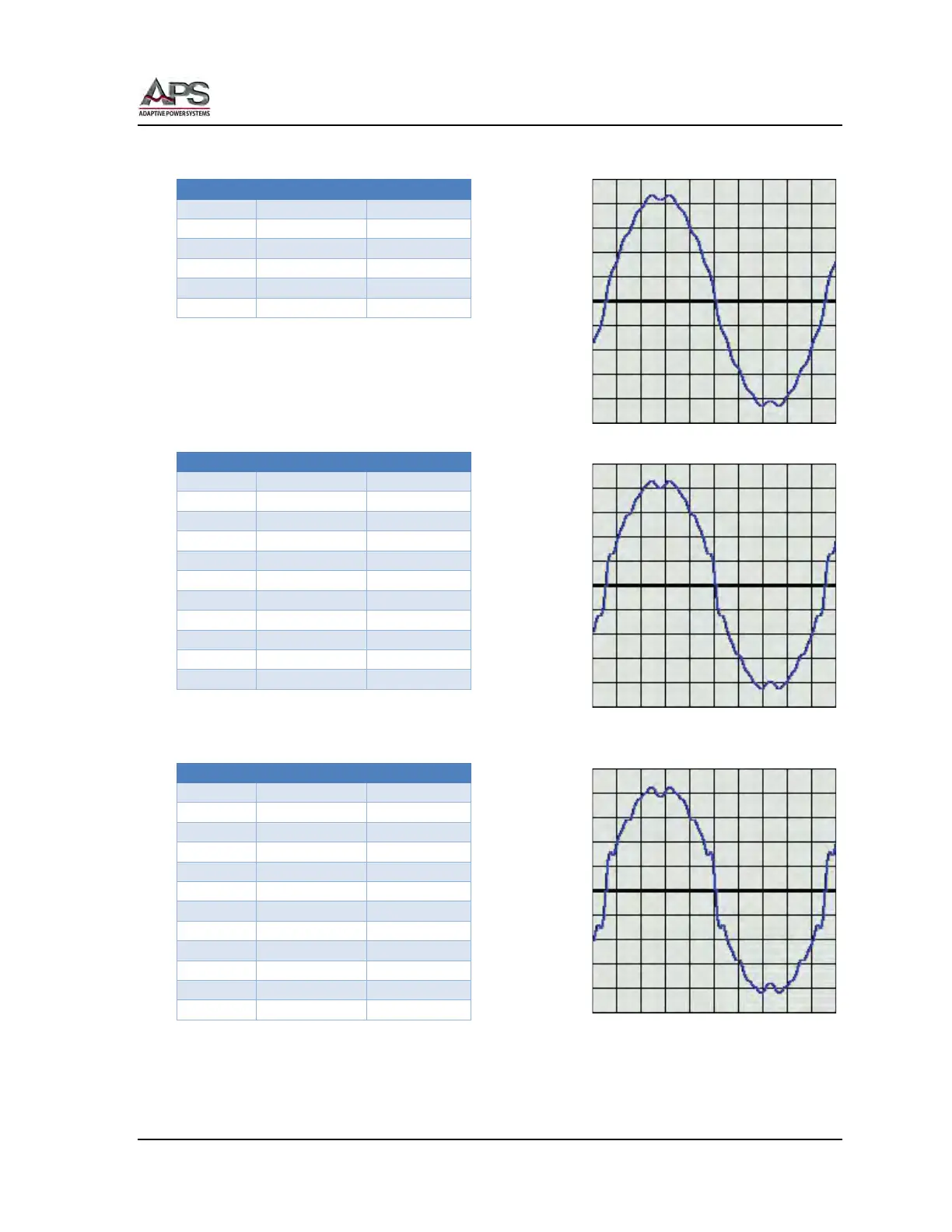

12.2.8 FIXED Waveform No 7
Harmonic
% Ampl
Phase
3
4.86
0
5
1.58
0
7
2.64
0
11
1.37
0
15
1.95
0
17
1.06
0
12.2.9 FIXED Waveform No 8
Harmonic
% Ampl
Phase
3
7.27
0
5
2.39
0
7
4.01
0
11
2.07
0
13
1.03
0
15
2.94
0
17
1.59
0
19
1.00
0
21
1.04
0
23
1.19
0
25
1.03
0
12.2.10 FIXED Waveform No 9
Harmonic
% Ampl
Phase
3
9.78
0
5
3.19
0
7
5.37
0
9
1.17
0
11
2.76
0
13
1.37
0
15
3.92
0
17
2.13
0
19
1.34
0
21
1.39
0
23
1.59
0
25
1.36
0
