EFD1000 PFD Pilot’s Guide
CHAPTER 5, CUSTOMIZING THE EFD1000 PFD
EFD1000 PFD Pilot’s Guide
EFD1000 PFD Pilot’s Guide Page 5-5A-01-184-00 REV B
KEY DESCRIPTION OPTIONS
1
Operating from or Switch to Battery Power. Green when current state
(Pushing key performs no action) White if selection is possible
Status or
Action
2
Operating from or Switch to External Power. Green when current state
(Pushing key performs no action) White if selection is possible
Status or
Action
3
Shut down Action
4
External Power Source Voltage. Displays voltage level of input power Status Only
5
Internal Battery Status. Displays internal battery % charge and
estimated operating time available, ##%/## MIN
Status Only
Table 5-6 Menu – POWER SETTINGS, Page 6 of 7
KEY DESCRIPTION OPTIONS
1
Main Application Processor Software versions Status Only
2
Input Output Processor Software Version Status Only
3
Feature Load Status Only
Table 5-7 Menu – SYSTEM STATUS, Page 7 of 7

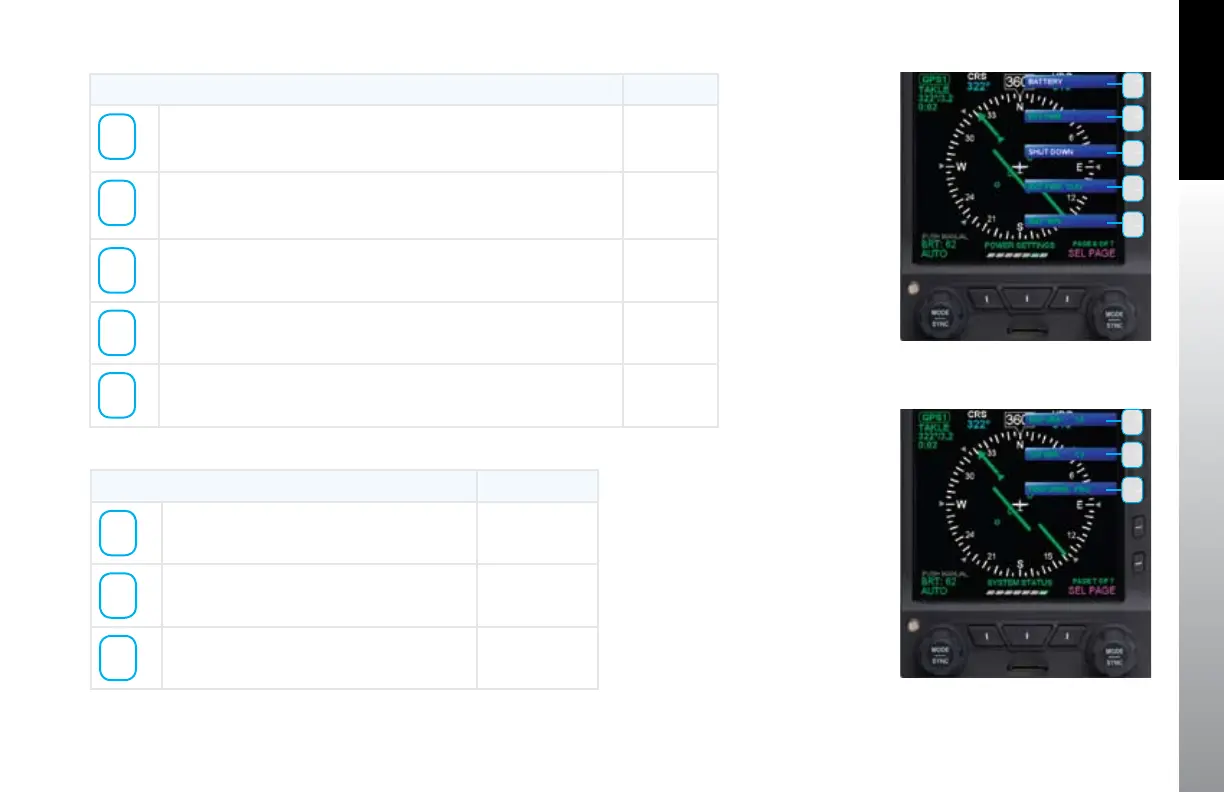

Figure 5-6
Menu, Page 6
1
2
3
4
5
Figure 5-7
Menu, Page 7
1
2
3
