CHAPTER 6, EMERGENCY AND ABNORMAL PROCEDURES
EFD1000 PFD Pilot’s Guide
Page 6-8 A-01-184-00 REV B
EFD1000 PFD Pilot’s Guide
EFD1000 PFD Pilot’s Guide
CAUTIONS
CROSS CHECK ATTITUDE Amber annunciation presented, centered in the upper half of
the attitude indicator, whenever the EFD1000 AHRS internal
integrity monitor determines that attitude is potentially
degraded. If a CROSS CHECK ATTITUDE annunciation is
provided, the pilot should cross check attitude, airspeed, and
altitude against the standby displays.
GPS1, GPS 2, and/or RSM
GPS
Amber annunciation presented on the left edge of the display
to indicate when a congured GPS ight plan and mapping
data are invalid or not available.
RSM GPS REVERSION EMER
USE ONLY
Amber annunciation presented whenever the EFD1000 reverts
to RSM GPS data and indicates that the RSM GPS is the current
GPS source. RSM GPS usage is limited to EMER USE ONLY.
INTEG Amber annunciation presented when the GPS source coupled
to the HSI “ags” the GPS integrity. See the GPS AFMS for more
information.
MINIMUMS Amber annunciation presented whenever the aircraft is at
or below the MINIMUMS altitude set by the pilot. May be
accompanied by an optional one-second stuttered tone.

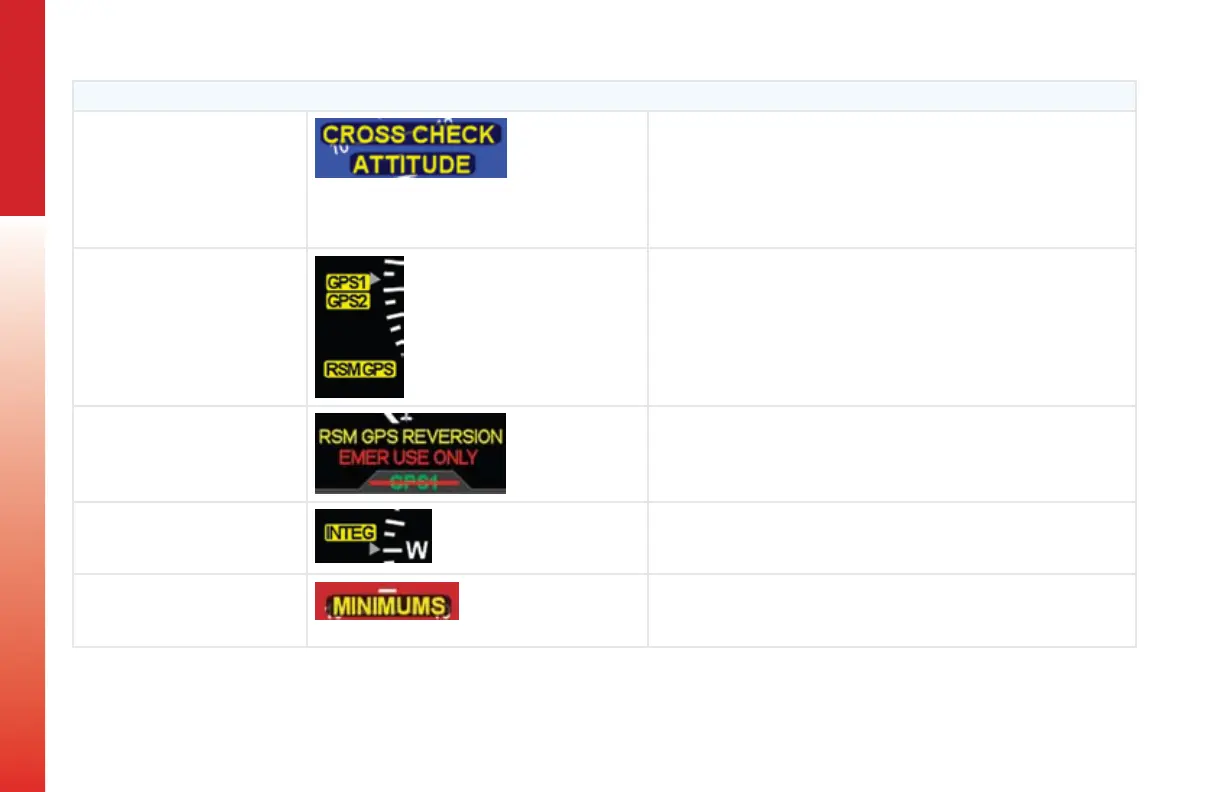

Figure 6-13
CAUTION -
Cross Check Attitude
Figure 6-14
CAUTION -
GPS1, GPS 2, and/or
RSM GPS
Figure 6-15
CAUTION -
RSM GPS Reversion
Figure 6-16
CAUTION -
INTEG
Figure 6-17
CAUTION -
Minimums
