EFD1000 PFD Pilot’s Guide
CHAPTER 6, EMERGENCY AND ABNORMAL PROCEDURES
EFD1000 PFD Pilot’s Guide
EFD1000 PFD Pilot’s Guide Page 6-9A-01-184-00 REV B
ADVISORY
Altitude Alerter Amber ag presented to indicate the aircraft is reaching
(steady) or deviating (ashing) from the preselected altitude.
May be accompanied by an optional one-second steady tone.
DH Alert Yellow “DH” annunciation provided whenever a connected
radio altimeter indicates it has reached the altitude set by the
pilot. See the Radio Altimeter AFMS for more information.
GPS Annunciations:
APPR, WPT, MSG
Green Annunciations associated with the GPS coupled to the
HSI. See the GPS AFMS for more information.
INVALID DATA
Slashing red line A horizontal or vertical red line through the source legend of
selected data indicates that the data are invalid or unavailable.

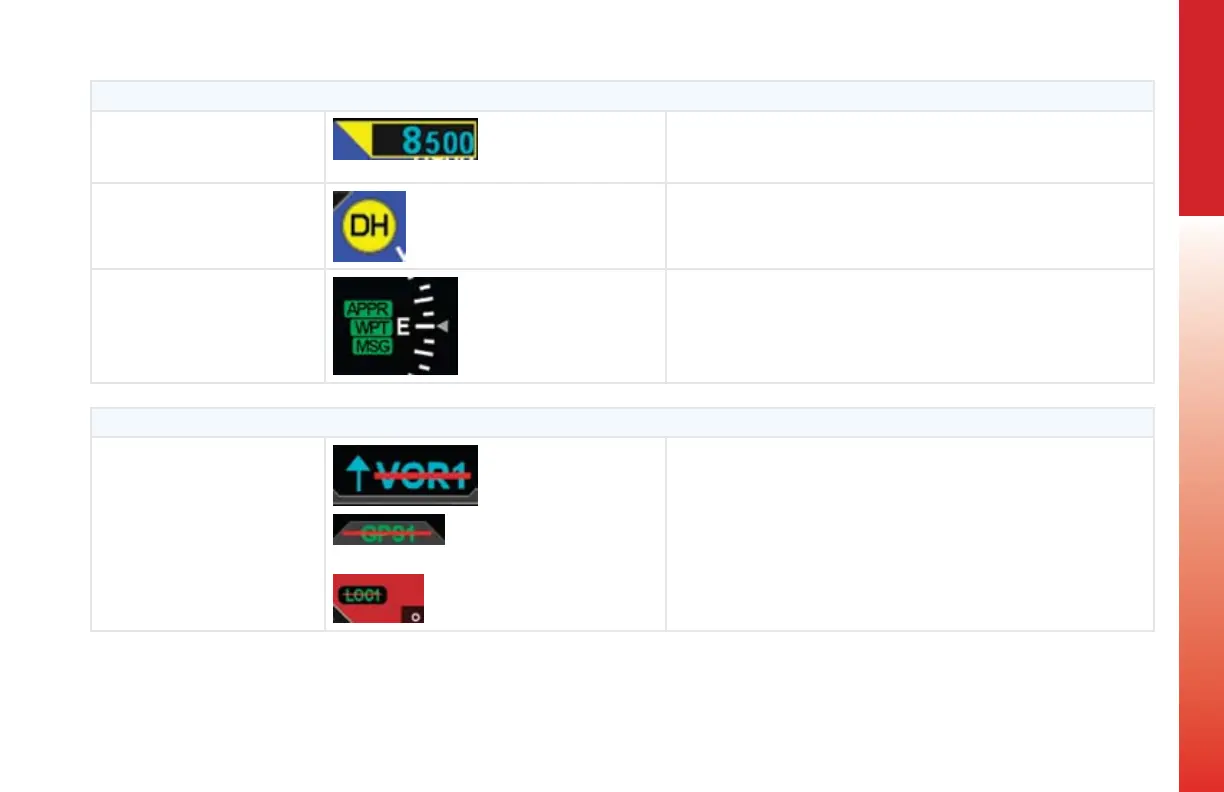

Figure 6-18
ADVISORY -
Altitude Alerter
Figure 6-21
INVALID DATA -
Slashing Red Line
Figure 6-18
ADVISORY -
Decision Height Alert
Figure 6-18
ADVISORY -
GPS Annunciations
