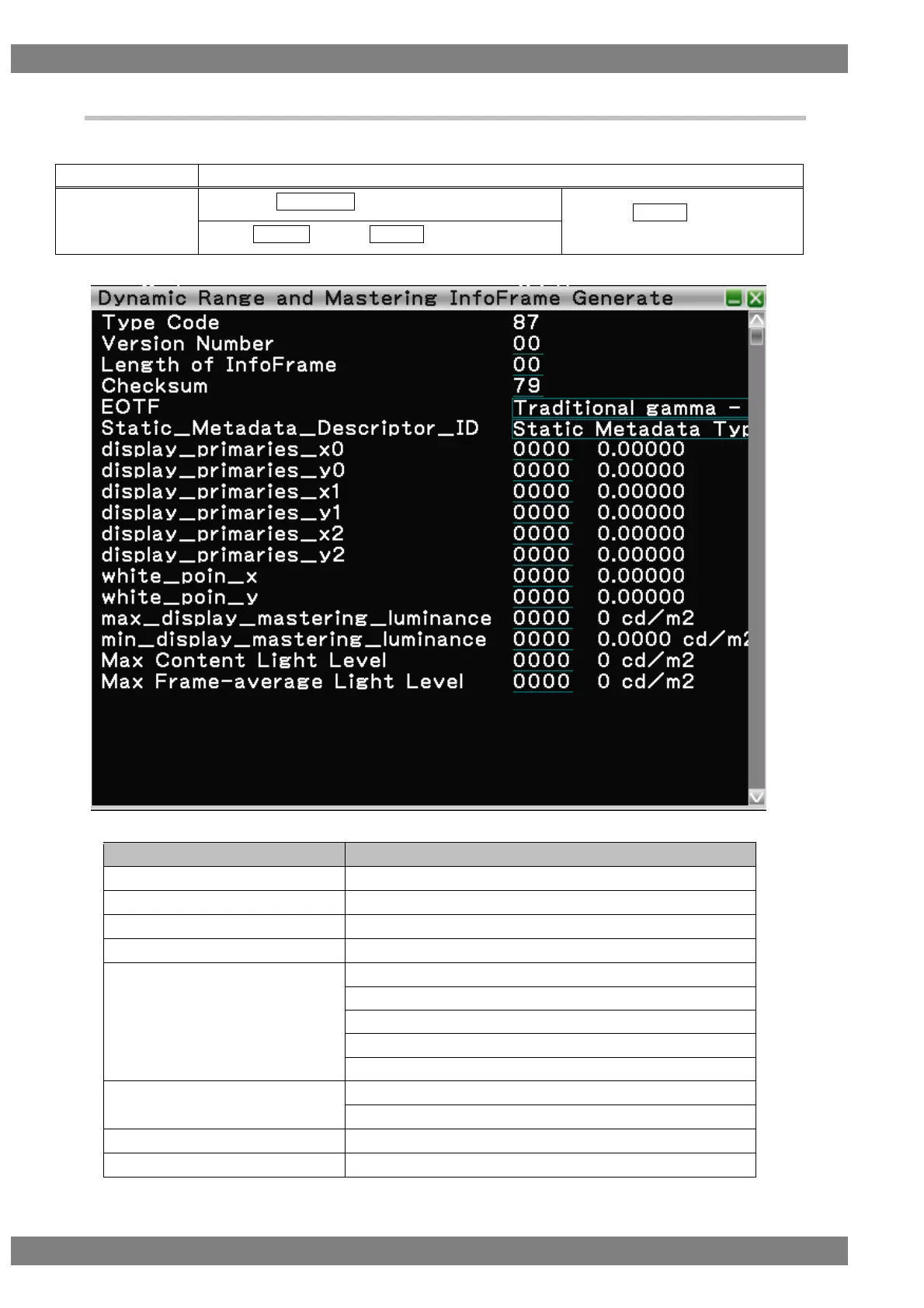

5.2.7 Dynamic Range and Mastering InfoFrame
Sets the Dynamic Range and Mastering InfoFrame settings.
The display method is as follows.
Mouse operation
Right-click → left-click GENERATE → left-click Dynamic Range and Mastering InfoFrame
Unit operation
Press the GENERATE key.
→ press L CLICK over Dynamic
Range and Mastering InfoFrame
Press R CLICK → press L CLICK over GENERATE
Setting Item
Settings
Type Code
87 H
Version Number
XX H
Length of InfoFrame
XX H
Checksum
XX H
EOTF
Traditional gamma - SDR Luminance Range
Traditional gamma - HDR Luminance Range
SMPTE ST 2084[2]
Hybrid Log-Gamma
Reserved
Static_Metadata_Discriptor_ID
Static Metadata Type1
Reserved
display_primaries_x0
X.XXXXX
display_primaries_y0
X.XXXXX
