Chapter 6 Compliance Test
243
6.4.8 HDCP1.4 CTS 3C-2

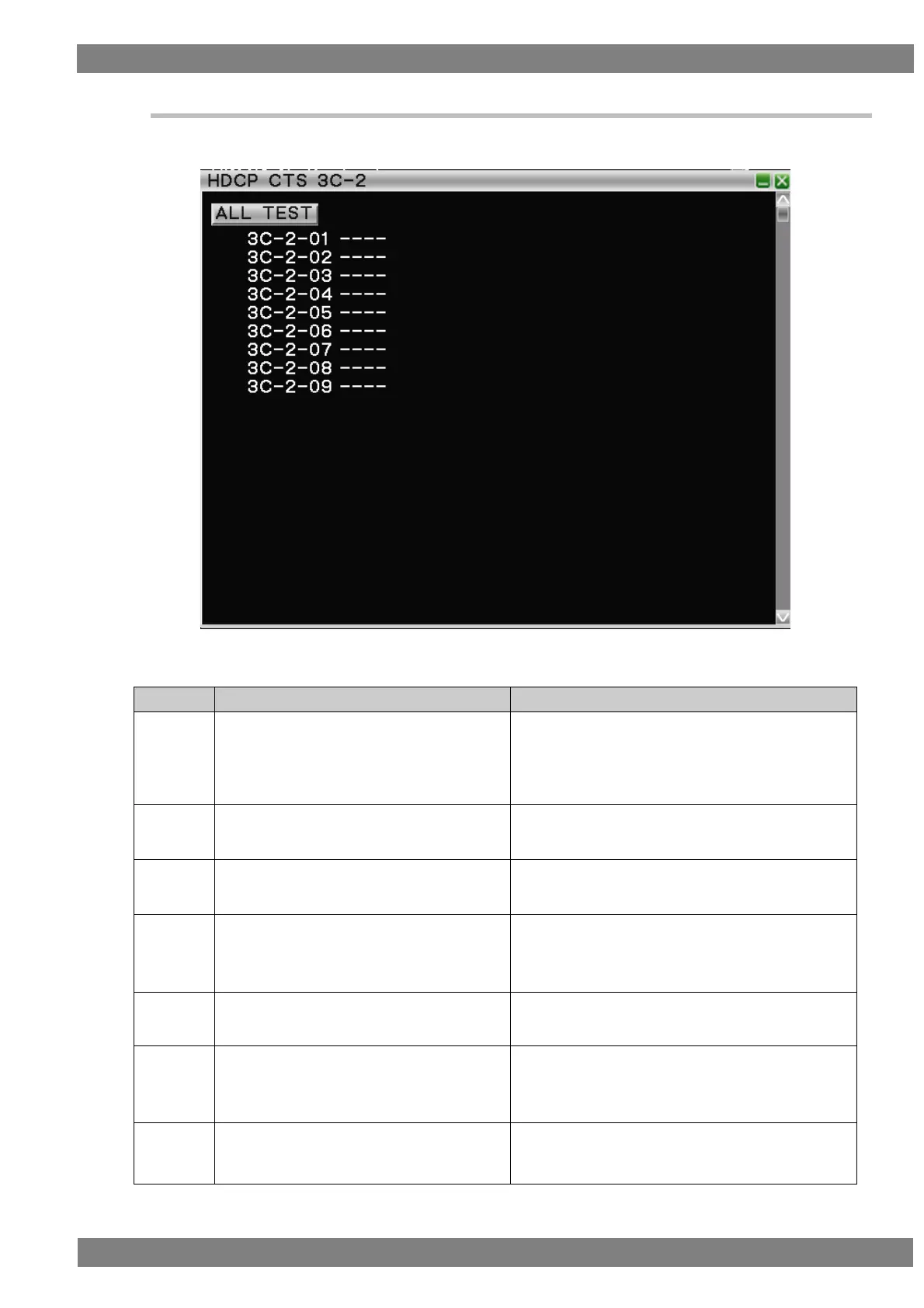

When a test ID number is clicked with the mouse, the selected test is started. While testing is in progress, the
settings required for the tests are set automatically. The following shows the test list.
Test list
TEST ID
Name
Description
3C-2-1
Regular procedure: Transmitter - DUT -
Repeater+Receiver
Performs a check of the HDCP protocol on the input
side of the DUT when a repeater is connected to an
output and a source device is connected to an input
of the DUT.
3C-2-2
Regular procedure: HDCP_HPD after writing
Aksv
Performs a check of the HDCP protocol for when
HDCP_HPD occurred after the DUT wrote Aksv.
3C-2-3
Regular procedure: HDCP_HPD after
reading R0’
Performs a check of the HDCP protocol for when
HDCP_HPD occurred after the DUT read R0’.
3C-2-4
Regular procedure: HDCP_HPD after starting
third part of authentication
Performs a check of the HDCP protocol for when
HDCP_HPD occurred after the DUT started the third
part of authentication.
3C-2-5
Irregular procedure: (Second part of
authentication) Verify V’
Performs a check of the HDCP protocol for when an
invalid V’ is returned.
3C-2-6
Irregular procedure: (Second part of
authentication) DEVICE_COUNT
Performs a check of the HDCP protocol for when
DEVICE_COUNT = Repeater_Max_KSV is returned
from downstream.
3C-2-7
Irregular procedure: (Second part of
authentication) DEPTH
Performs a check of the HDCP protocol for when
DEPTH = 7 is returned from downstream.
