ASTRO VA-1842 - Connector Pin Assignment; HDMI Connector

372

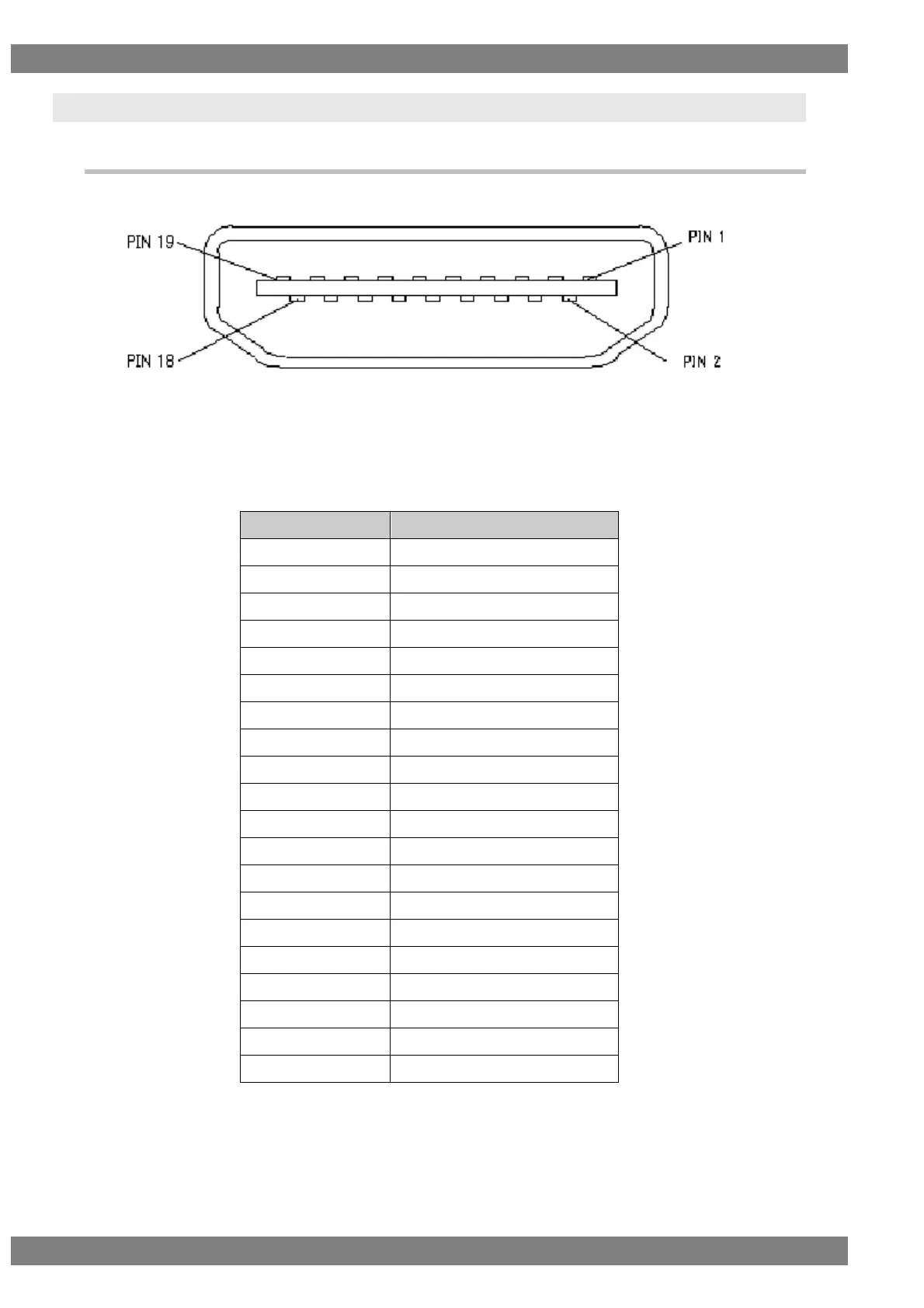

12.2 Connector Pin Assignment
12.2.1 HDMI Connector
Pin Assignment
Pin Assignment
Connector pin no.
Input/output signal
1
TMDS DATA2+
2
TMDS DATA2 SHIELD
3
TMDS DATA2-
4
TMDS DATA1+
5
TMDS DATA1 SHIELD
6
TMDS DATA1-
7
TMDS DATA0+
8
TMDS DATA0 SHIELD
9
TMDS DATA0-
10
TMDS CLK+
11
TMDS CLK SHIELD
12
TMDS CLK-
13
CEC
14
UTILITY
15
DDC CLK
16
DDC DATA
17
GROUND( for +5V )
18
+5V POWER
19
HOT PLUG DETECT
Shell
FG
