Chapter 6 Compliance Test
175

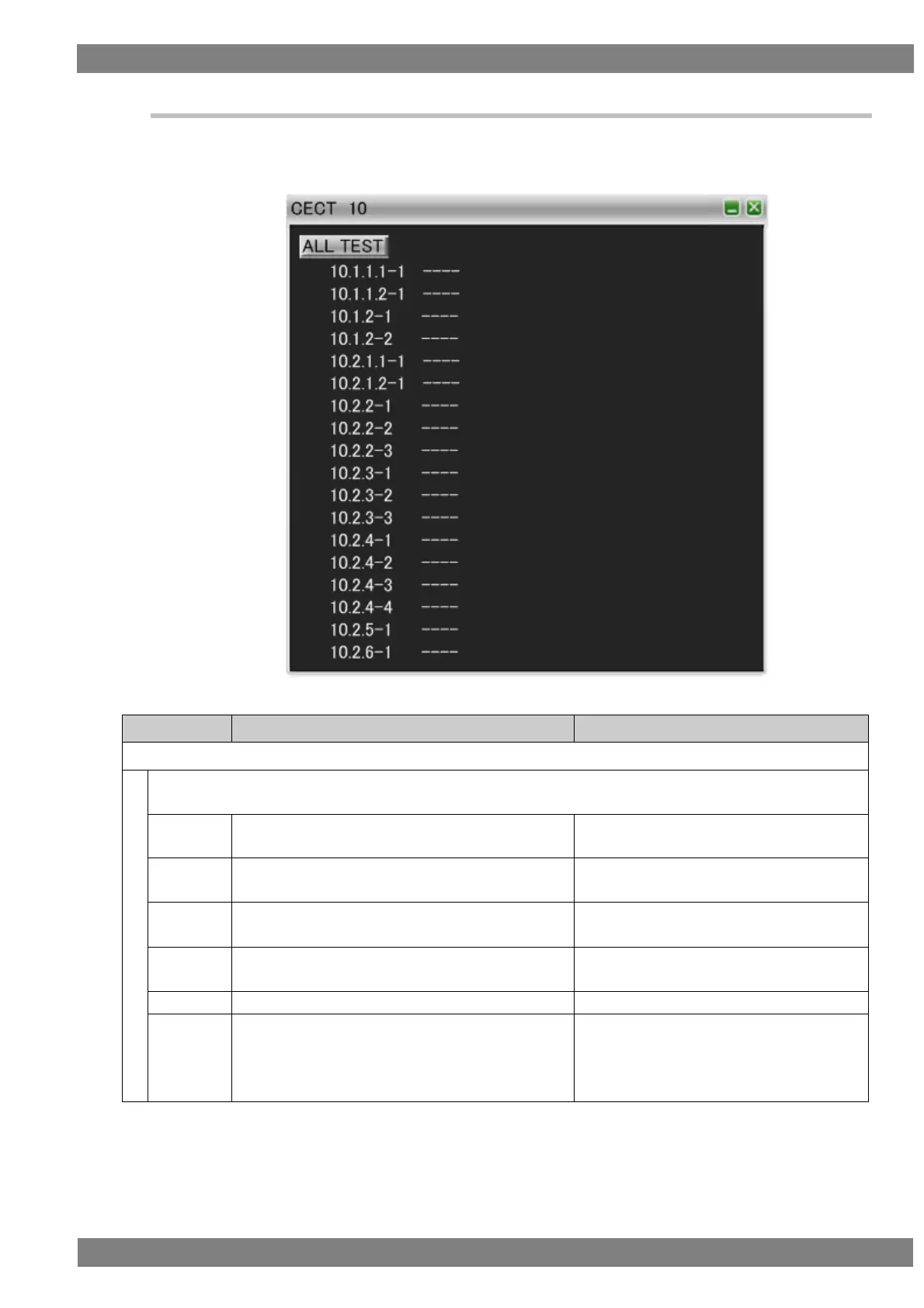

6.3.4 CECT10
When “ALL TEST” is selected, the tests for the test IDs are started. When a test ID number is clicked with the
mouse, only the selected test is started. The procedures for the tests performed with the VA-1842 are shown
below.
Item
Test procedure
Pass criteria
Device Installation and Addressing
If the DUT is a TV, connect the HDMI input of the DUT and the output of the TE, and if the DUT is other than a TV,
connect the HDMI output of the DUT and the input of the TE. Then perform the tests.
10.1.1.1-1
Send <Give Physical Address> to the DUT at logical
address 0.
DUT broadcasts <Report Physical Address>
[0.0.0.0] [0].
10.1.1.2-1
Assign a physical address of [2.0.0.0] to the DUT.
Assign a physical address of [1.0.0.0] to the DUT.
DUT broadcasts <Report Physical Address>
[1.0.0.0].
10.1.2-1
Assign a physical address of [2.0.0.0] to the DUT.
Assign a physical address of [1.0.0.0] to the DUT.
DUT broadcasts <Report Physical Address>
[1.0.0.0].
10.1.2-2
Assign a physical address of [1.0.0.0] to the DUT.
Assign a physical address of [2.3.4.5] to the DUT.
DUT broadcasts <Report Physical Address>
[2.3.4.5].
10.2.1.1-1
Send <Polling Message> to logical address 0.
DUT sends ACK.
10.2.1.2-1
Connect from the HDMI output of the DUT to the VA-
1842.
Assign a physical address of [2.0.0.0] to the DUT.
Assign a physical address of [1.0.0.0] to the DUT.
DUT broadcasts <Report Physical Address>
[1.0.0.0] [0x0E] from logical address 14.
